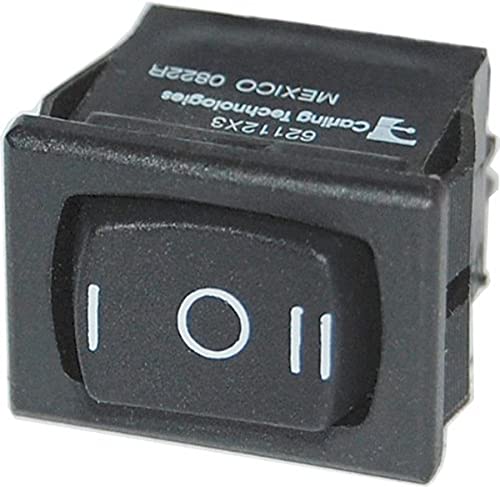

The Blue Sea Systems 7484 is a momentary rocker switch designed specifically for the 360 Panel System. This SPDT (Single Pole/Double Throw) switch features a (ON)-OFF-(ON) configuration, providing momentary activation in both the up and down positions with a center off position.
The 360 Panel System uses an innovative open frame design to mount a broad selection of modules, allowing multiple functions to be combined in a single panel. This modular approach offers exceptional design flexibility and can accommodate future changes while permitting rapid assembly.
Key Features:
- SPDT (Single Pole/Double Throw) configuration with momentary (ON)-OFF-(ON) action
- Compatible with 360 Panel Gauge, DC Push Button + Switch, and DC Battery Management modules
- Quick connect tab terminals sized at 0.187" (4.75mm) for easy installation
- Rated for 10A at 12V DC, 8A at 24V DC, 8A at 125V AC, and 8A at 250V AC
- Compact and lightweight design at just 0.08 lbs
This rocker switch is ideal for marine electrical systems requiring momentary control functions such as windlass operation, trim tab adjustment, or other dual-direction momentary applications. The switch integrates seamlessly into Blue Sea Systems' 360 Panel ecosystem, providing a professional, customizable solution for panel configuration.
Technical Specifications:
- Action: (ON)-OFF-(ON) - Momentary in both directions
- Pole/Throw: SPDT (Single Pole/Double Throw)
- Maximum Amperage: 10A @ 12V DC / 8A @ 24V DC / 8A @ 125V AC / 8A @ 250V AC
- Terminal Type: Quick Connect Tab
- Terminal Size: 0.187" (4.75mm)
- Weight: 0.08 lbs
Note: Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for the application.
