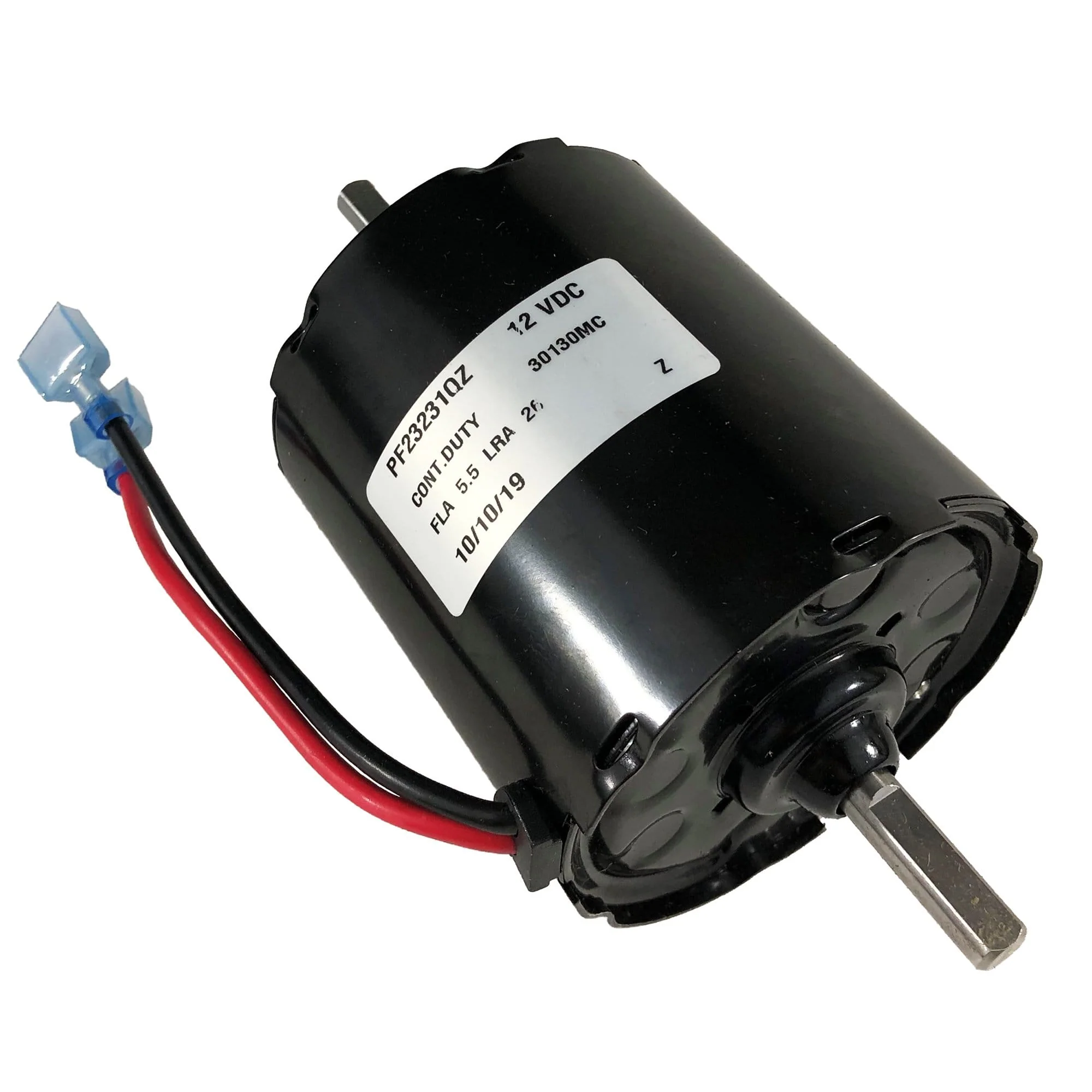

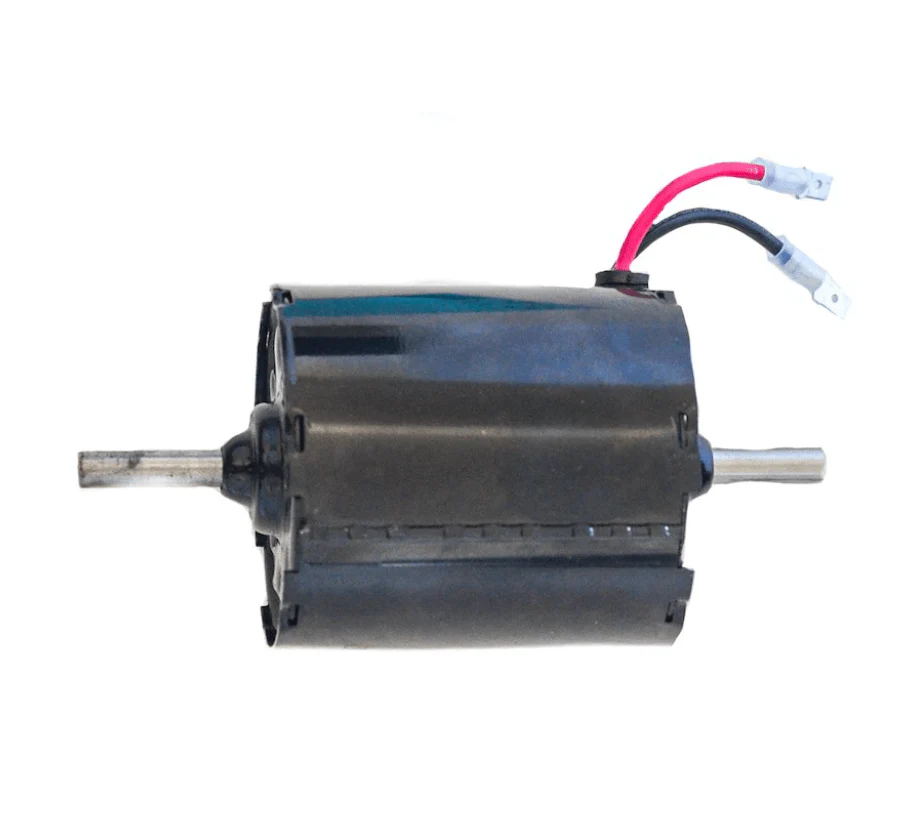

MC 30130MC RV Furnace Blower Motor 12V Dual Shaft Replaces 32774MC

The MC 30130MC is an aftermarket replacement furnace blower motor designed for Atwood and Dometic Hydro Flame RV furnace systems. This dual-shaft motor is engineered to drive both the blower wheel and combustion air wheel, providing reliable heating performance for your recreational vehicle.

Key Specifications:

• 12V DC power operation
• Dual shaft design for blower and combustion wheels
• Motor diameter: 3 inches
• Motor length: 3-3/8 inches
• Shaft #1 length: 1-3/8 inches
• Shaft #2 length: 1 inch
• Full load amps: 5.5A

Compatibility: This motor is designed for use with Atwood 8525, 8531, and 8535 Series I furnaces, as well as Atwood 8525 Series II and compatible Dometic furnace models. The motor size and RPM specifications are matched to specific furnace BTU ratings, ensuring proper airflow and system performance.

OEM Cross-Reference: Replaces Atwood/Hydro Flame part number 32774MC. This is an aftermarket replacement manufactured by MC Enterprises.

When the furnace control board sends power to the motor, both shafts rotate simultaneously to circulate air through your heating system, providing efficient heat distribution throughout your RV.
