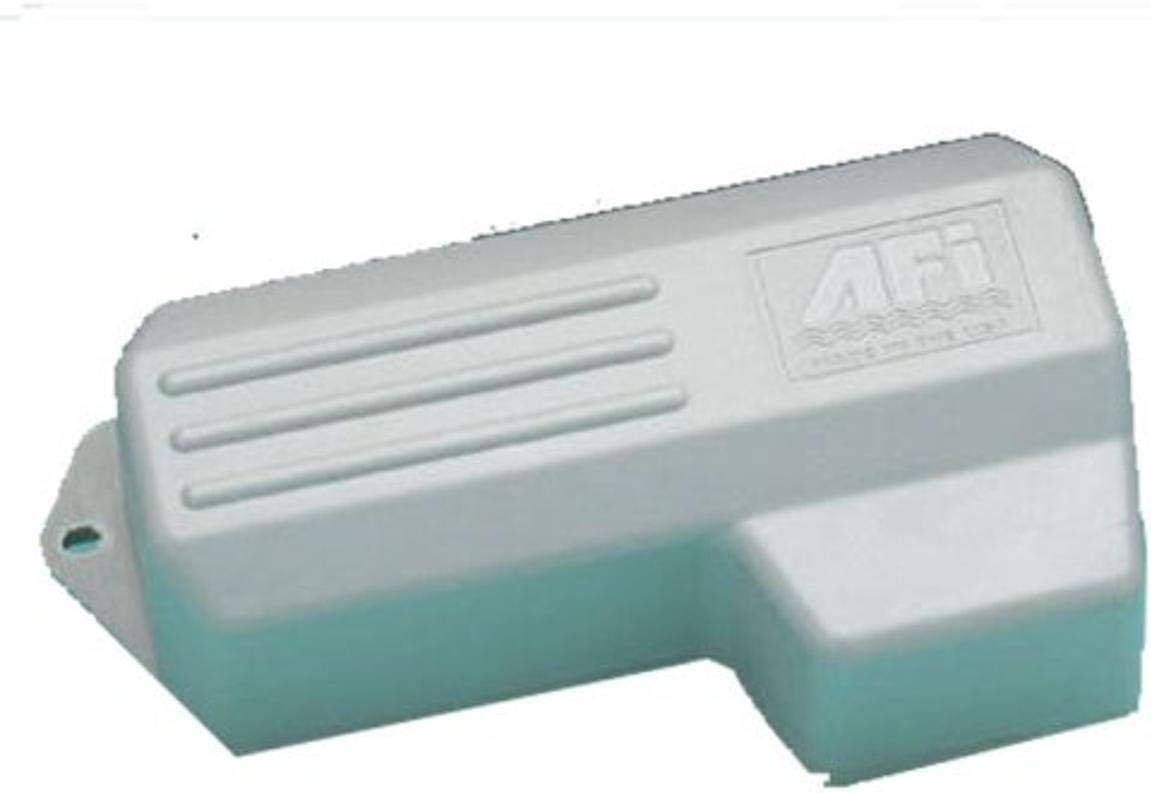

Marinco 36180 Afiafi-1000 Heavy Duty Waterproof Marine Wiper Motor 12V 1.5" Shaft

The Marinco 36180 Afiafi-1000 Series marine wiper motor delivers reliable windshield clearing performance in the harshest marine environments. This heavy-duty 12-volt wiper motor features a fully sealed waterproof housing constructed from UV-stabilized, high-temperature, high-impact thermoplastic that withstands saltwater, sun exposure, and extreme weather conditions.

Key Features:

• Factory pre-set 80-degree sweep, adjustable to 50°, 65°, 80°, or 110° configurations
• 1.5-inch shaft length (includes 0.5" knurled arm fitting) with 0.625" diameter
• Heavy-duty 12V motor with anti-rotation drive shaft for reliable operation
• Knurled drive shaft and solid brass arm drive nut ensure secure blade attachment
• Coast-to-park feature with adjustable right or left self-parking capability
• RF shielded circuitry minimizes electrical interference
• Includes 5-amp fuse and holder (on/off switch sold separately)

Performance Specifications:

• Stall torque: 55 in-lbs (6.2 Nm)
• Stall current: 9.8-10.0 amps
• No load current: 0.8-1.2 amps
• Powers 18" deluxe arm and blade combinations at 80° sweep or less
• Powers 16" deluxe arm and blade combinations at 110° sweep

Compact dimensions of approximately 6.625" L x 3.375" W x 2" D make this motor suitable for a wide range of marine vessel installations. The robust construction and waterproof design ensure long-lasting performance in demanding saltwater applications.
