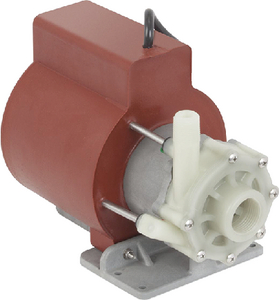

March Pump 9108690330 PML1000 Submersible Magnetic Drive Pump 230V

The March Pump 9108690330 is a professional-grade submersible seal-less centrifugal magnetic drive pump designed for marine air conditioning and seawater circulation applications. This 230V model is engineered for reliable performance in demanding marine environments where corrosion resistance and continuous duty operation are essential.

Key Features:

• Seal-less magnetic drive design eliminates shaft seals for leak-proof operation
• 0.125 HP motor rated for 230V 50/60Hz operation
• Flow capacity up to 870 GPH (14.5 GPM) with maximum head of 27 feet (11 PSI)
• Can be operated submerged or non-submerged for versatile installation
• 1" FPT inlet and 1/2" MPT outlet connections
• Constructed with corrosion-resistant materials including polypropylene housing, ceramic components, and stainless steel
• Maximum internal pressure rating of 25 PSI
• Maximum liquid temperature of 130°F (54°C)
• 6-foot submersible power cord included
• Direct replacement for Dometic PML1000 230V (Part Number: 225500288)

This pump features a durable wet end constructed from polypropylene, Buna N O-rings, 316 stainless steel, ceramic shaft and thrust washers, and ceramic magnets. The magnetic drive technology eliminates mechanical seals, reducing maintenance requirements and extending service life. Ideal for marine air conditioning systems, fountain applications, and seawater circulation where reliability and corrosion resistance are critical.

Important Operating Notes: This pump requires a flooded suction and is not self-priming. The pump must not be run dry as the impeller requires liquid for lubrication.
