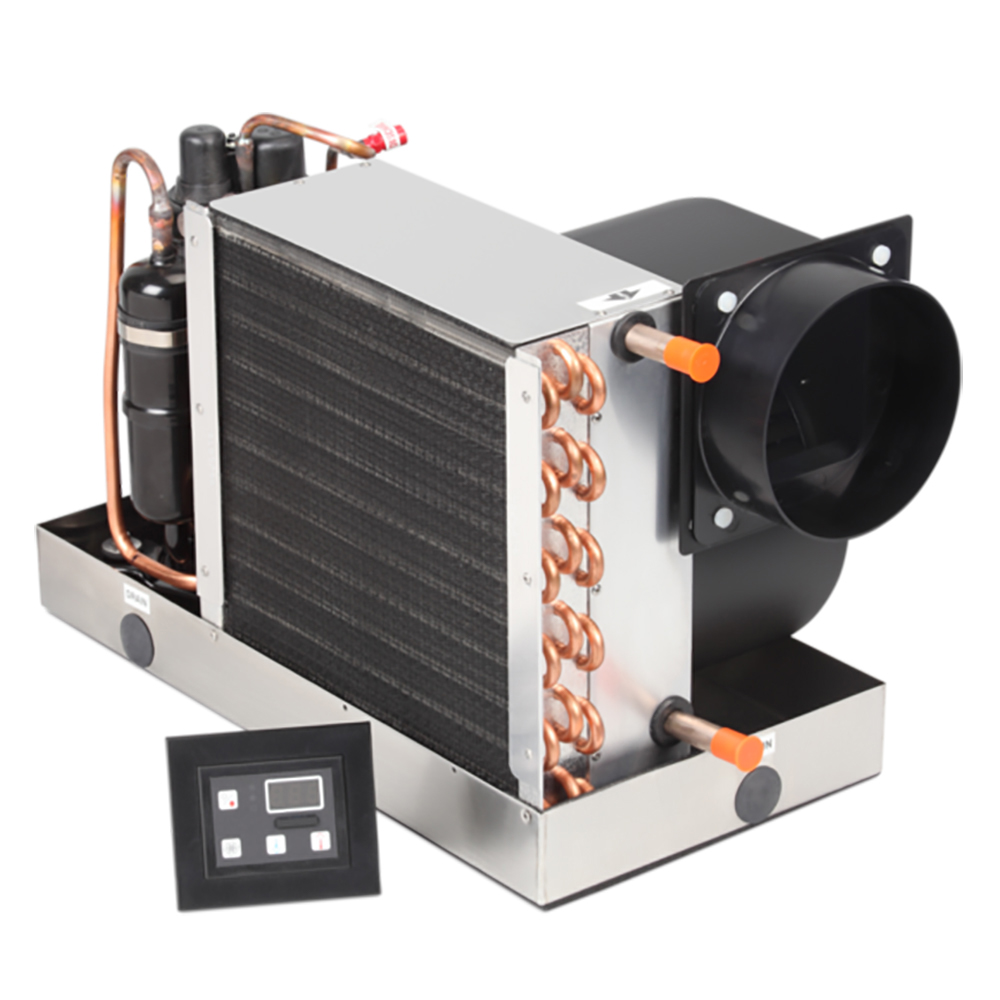

Dometic 9108844174 EnviroComfort ECD 6KZ-HV Marine AC Retrofit Kit 6000 BTU 230V

The Dometic EnviroComfort ECD6KZ-HV is a 6,000 BTU marine air conditioning retrofit kit designed to replace older self-contained air conditioners in the 5,000 to 7,000 BTU capacity range. This reverse-cycle system provides both cooling and heating capability for year-round comfort aboard your vessel.

Engineered with a high-velocity blower featuring an internal motor, this unit offers a compact installation footprint with exceptional flexibility. The blower assembly rotates to accommodate either horizontal or vertical installation positions, making it adaptable to various cabin configurations. Built on a corrosion-resistant stainless-steel drain pan, the system includes a pre-installed return-air filter that's easily removable for routine cleaning and maintenance.

Key Features:

• High-velocity rotatable blower for flexible horizontal or vertical mounting
• Environmentally friendly R-410A refrigerant system
• Dometic Passport I/O digital control with display and bezel included
• Remote electrical box for convenient mounting options
• Corrosion-resistant stainless-steel drain pan
• Removable and cleanable return-air filter
• Compact, space-saving design for tight installations

Technical Specifications:

• Cooling capacity: 6,000 BTU/hr
• Input voltage: 230V AC, 50/60 Hz
• Starting current: 34 amps
• Recommended fuse range: 12A minimum / 20A maximum
• Refrigerant: R-410A
• Minimum supply duct size: 4 inches
• Seawater inlet connection: 5/8 inch (0.625")
• Dimensions: 16" W × 11.25" H × 9" D

Kit Includes:

• ECD self-contained air conditioning unit
• Digital control with bezel and 15-foot cable
• Installation and operation manual

This retrofit kit is ideal for upgrading existing marine air conditioning systems or completing new installations where reverse-cycle heating and cooling are desired. Legacy part number: 207500307.
