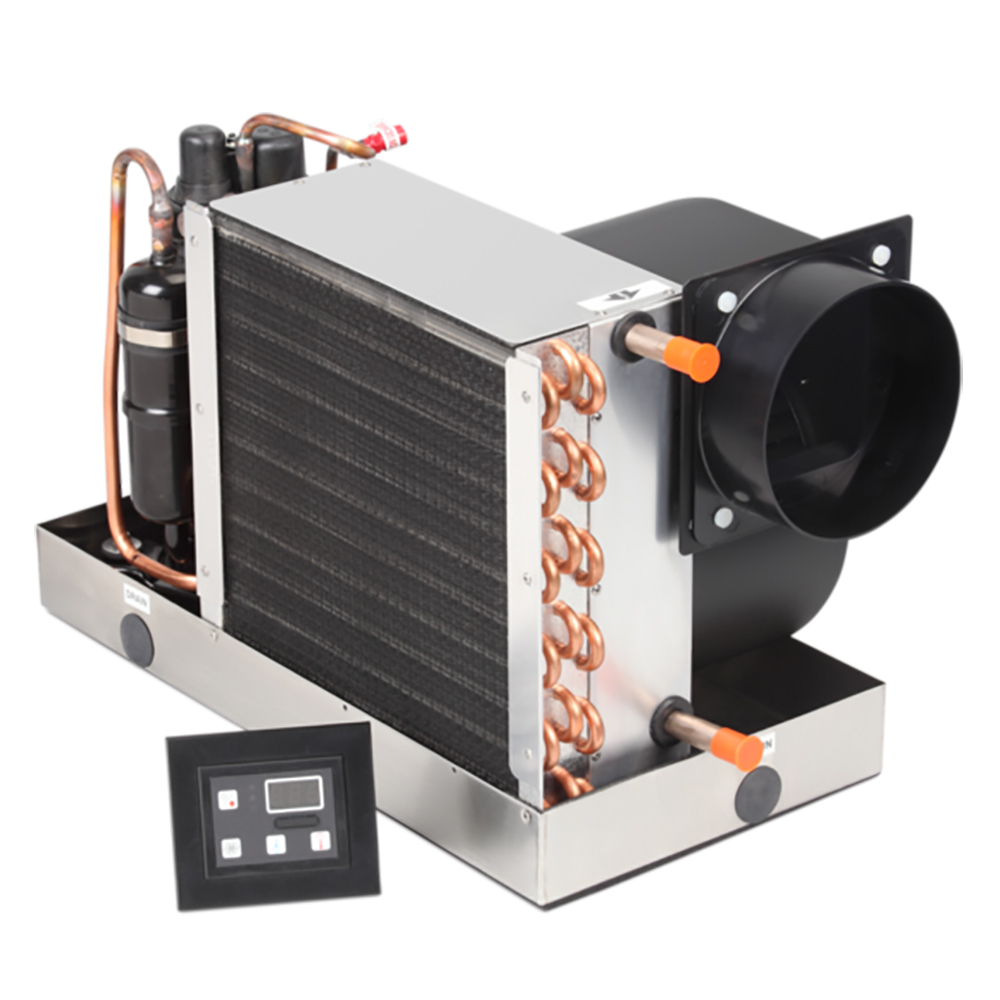

Dometic 9108850337 EnviroComfort ECD10KZ-HV 10,000 BTU Marine AC Retrofit Kit 230V

The Dometic EnviroComfort ECD10KZ-HV is a complete marine air conditioning retrofit kit designed to replace older self-contained air conditioners in the 8,000 to 11,000 BTU range. This 10,000 BTU unit delivers reverse-cycle cooling and heating capability, ensuring year-round comfort on your vessel. Operating on 230V power, it uses environmentally friendly R-410A refrigerant for efficient climate control.

Key Features:

• High-velocity blower with internal motor reduces installation footprint
• Rotatable blower accommodates horizontal or vertical installation configurations
• Easy-to-use Dometic Passport I/O digital control with display and bezel included
• Stainless-steel drain pan for corrosion resistance and easy plumbing
• Pre-installed return-air filter is removable for simple cleaning and maintenance
• Plastic remote electrical box provides flexible mounting options
• Compact, space-saving design ideal for marine applications
• R-410A refrigerant meets modern environmental standards

Technical Specifications:

• Cooling capacity: 10,000 BTU/hr
• Input voltage: 230V AC
• Input frequency: 50/60 Hz
• Starting amps: 34A
• Fuse range: 12A minimum / 20A maximum
• Refrigerant type: R-410A
• Minimum supply duct size: 6 inches
• Seawater inlet connection: 0.625 inches
• Dimensions: 20"W × 13.25"H × 9.63"D

What's Included:

• ECD10KZ-HV self-contained air conditioning unit
• Dometic Passport I/O digital control with bezel and 15-foot cable
• Installation instruction manual

This retrofit kit is ideal for upgrading existing marine climate control systems or completing new installations where compact, efficient air conditioning is required. The unit replaces legacy part number 207500010.

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
