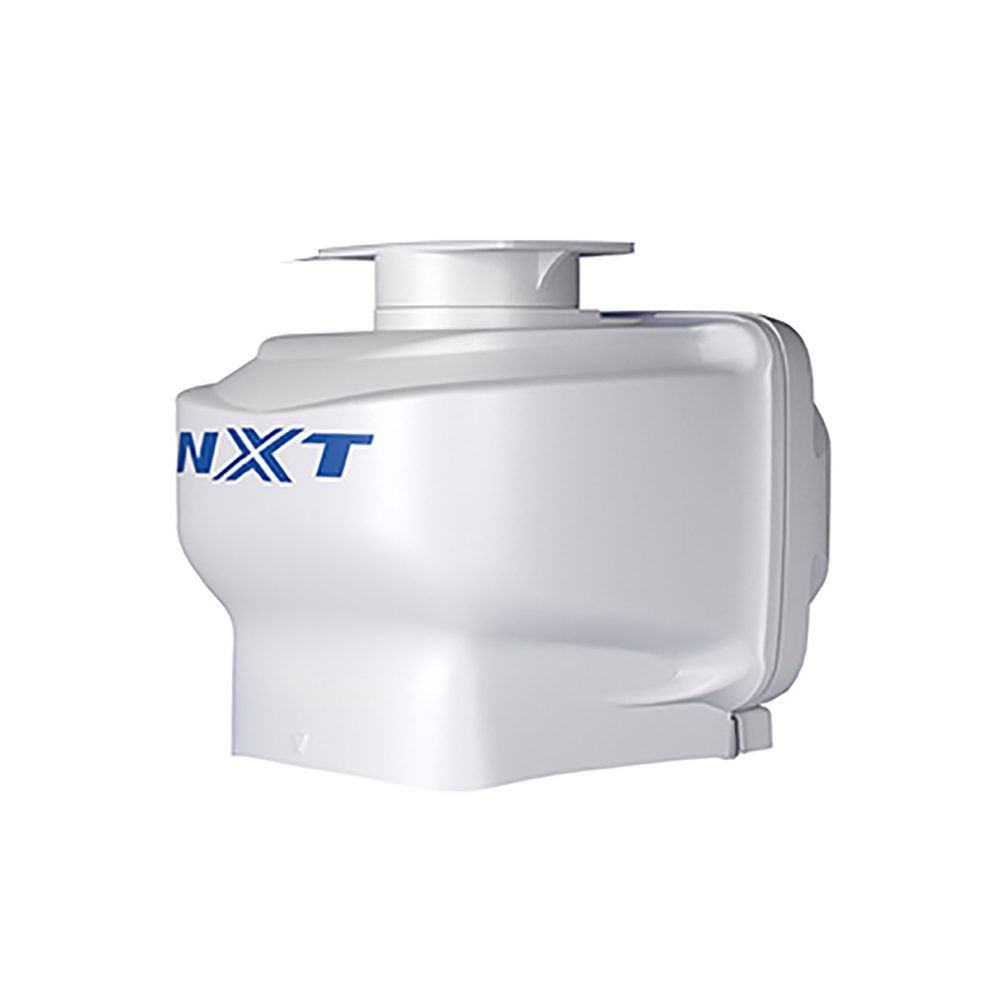

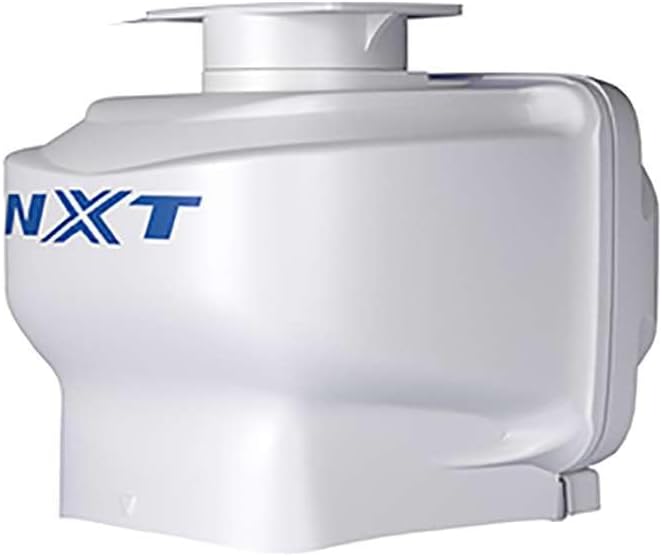

Furuno DRS25ANXT 200W Solid-State Doppler Radar Pedestal with Target Analyzer

Manufacturer

Picture for manufacturer Furuno

Part Number

DRS25ANXT
8 reviews
Sale Price

$8,495.00

In Stock (8)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details
Furuno DRS25ANXT FURUNO DRS25ANXT DOPPLER RADAR PEDESTAL NEEDS CABLE

DRS25ANXT Doppler Radar Pedestal - Less Antenna and Cable

200 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna and cable.

Specifications:

  • Band: X-Band
  • Beam Width: 1.35 degrees or 1.9 degrees or 2.3 degrees, depending on array choice
  • Power Usage: 24 VDC
  • Power Output: 200 W

The NXT step with doppler Radar technology

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

Target Analyzer function utilizing Doppler technology

NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Fast Target Tracking

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

RezBoost Beam Sharpening

For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a much larger open array antenna can be achieved.

Bird Mode gives you the inside scoop on schools of fish!

The DRS-NXT series features an enhanced Bird Mode that helps you identify birds gathering around schools of fish at the sea surface. Bird Mode adjusts the gain and sea settings automatically for optimal visibility.

REQUIRED OPTION :  3.5ft  part # XN10A/3.5 , 4ft part#  XN12A/4, Or 6'part#  XN13A/6 Array required

REQUIRES OPTIONAL SIGNAL/POWER CABLE

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
