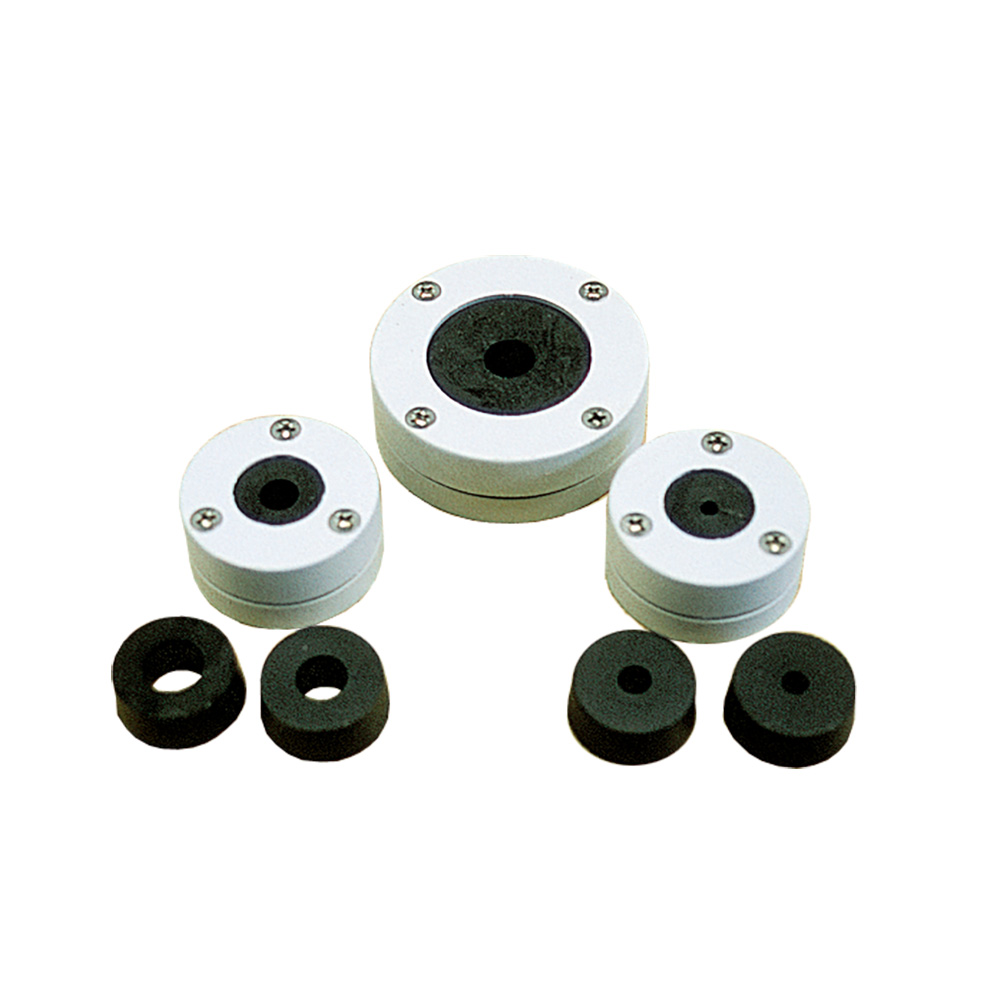

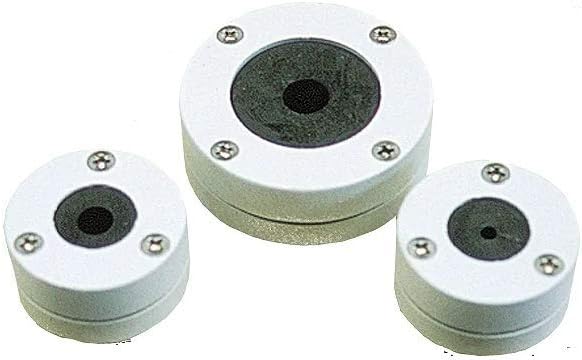

NewMar CCXR Thru-Dex Waterproof Cable Fitting

The NewMar CCX-R Thru-Dex Fitting provides a waterproof solution for routing cables through decks and bulkheads on marine vessels. This innovative fitting features a pre-drilled entry hole with a slit edge that allows cables with factory-installed connectors to be fed through without removal, simplifying installation and maintenance.

Key Features:

• Creates a 100% waterproof seal when routing cables through decks and bulkheads
• Pre-drilled entry hole with slit edge allows connector pass-through
• Install or remove cables without disconnecting connectors
• Rugged weatherproof nylon housing with neoprene seal for durability
• One fitting required per cable for optimal performance

Specifications:

• Cable diameter range: 0.47 to 0.59 inches
• Maximum connector diameter: 1.57 inches
• Material: Weatherproof nylon housing with neoprene seal

Ideal for marine electrical installations, communication systems, and any application requiring waterproof cable penetration through mounting surfaces.
