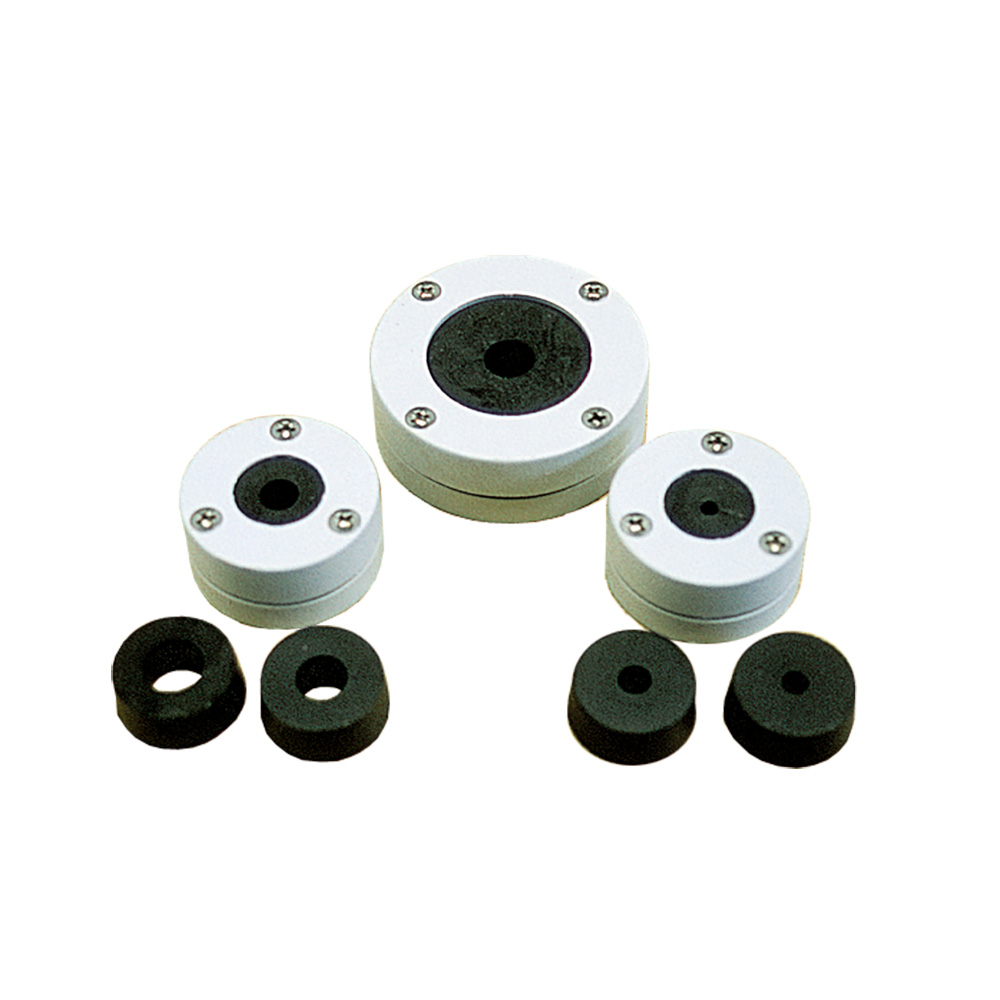

Newmar CCXS CCX-S Thru-Dex Waterproof Deck and Bulkhead Cable Fitting - Medium

The Newmar CCX-S Thru-Dex Fitting is a marine-grade waterproof cable feed-through designed for routing cables with factory-installed connectors through boat decks and bulkheads without disconnecting the connector. The pre-drilled neoprene seal features a slit to the edge, allowing the cable and its attached connector to pass through cleanly, then compress back to form a watertight barrier.

Part of Newmar's CCX Series, the CCX-S is the medium-size option, suited for small radar plugs and similarly sized connectors. One fitting is required per cable.

Key Features:

• Creates a 100% waterproof seal when routing cables through decks and bulkheads
• Entry hole pre-drilled in seal with a slit to the edge — no drilling required
• Allows installation and removal with the connector still attached
• Rugged weatherproof glass-filled nylon housing with neoprene seal
• Typical application: small radar plugs and similar connectors

Specifications:

• Cable Diameter Range: 0.35" – 0.55"
• Maximum Connector Diameter: 0.83"
• Typical Connector: Small radar plugs
• Housing Material: Weatherproof glass-filled nylon
• Seal Material: Neoprene

For smaller cables (0.18"–0.35"), see the CCX-T. For large radar plugs requiring a 1.57" connector clearance, see the CCX-R.
