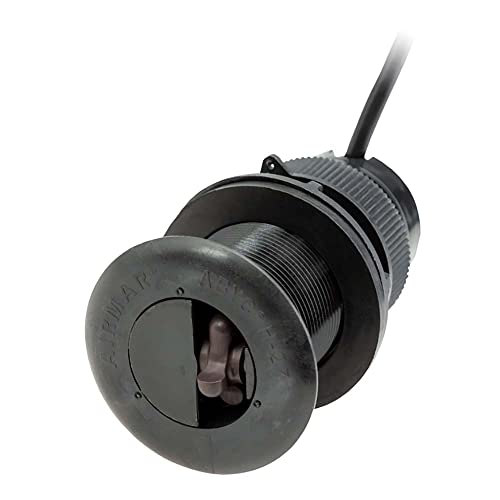

Airmar DST810PV-N2 Smart Multisensor 235kHz Bluetooth NMEA 2000

The Airmar DST810PV-N2 is a breakthrough smart multisensor that combines depth, speed-through-water, water temperature, and boat attitude (heel and trim) in a single plastic through-hull housing with integrated valve. Featuring the Gen2 paddlewheel and Bluetooth connectivity, this advanced sensor works seamlessly with Airmar's CAST™ App for wireless calibration and configuration—delivering capabilities previously only available through expensive PC-based software.

Key Features:

• 5 Hz speed output (5X per second) provides visibly smoother speed-through-water reporting and faster data for better real-time decision making
• Integrated attitude sensor measures heel and trim angles, benefiting both sailing and powerboats with heel-compensated speed calibration
• Bluetooth Low Energy (BLE) wireless connectivity with up to 30-foot range for easy setup via mobile device
• 235 kHz depth sounder with range from 0.5 m (1.6') to 100 m (330')
• Speed range up to 45 knots with advanced multi-point calibration capability
• All calibrations and configurations stored in the sensor itself, not in displays
• Suitable for hull deadrise up to 22 degrees
• NMEA 2000 connectivity with 6 m (20') DeviceNet cable included

Airmar CAST App Benefits:

• Calibrate speed intuitively regardless of instrument brand or model on board
• Conduct basic and advanced heel-compensated speed calibrations across multiple heel angles
• Manual speed entries for up to 10 speeds at multiple heel angles
• Enable/disable PGN's and configure offsets and output rates wirelessly

Technical Specifications:

• Temperature sensor accuracy: ±0.5°C (±1.8°F)
• Temperature range: -10°C to 40°C (14°F to 104°F)
• Supply voltage: 9-16 VDC per NMEA 2000 standard
• Housing: Plastic with integrated valve for safe installation and removal

Perfect for sailors seeking heel-corrected speed data and powerboaters needing accurate shallow-water depth performance, the DST810PV-N2 delivers professional-grade data from a single, easy-to-install multisensor. Simple attitude calibration corrects for off-center mounting, while the wireless configuration eliminates the need for laptop-based setup procedures.
