PSS Shaft Seal

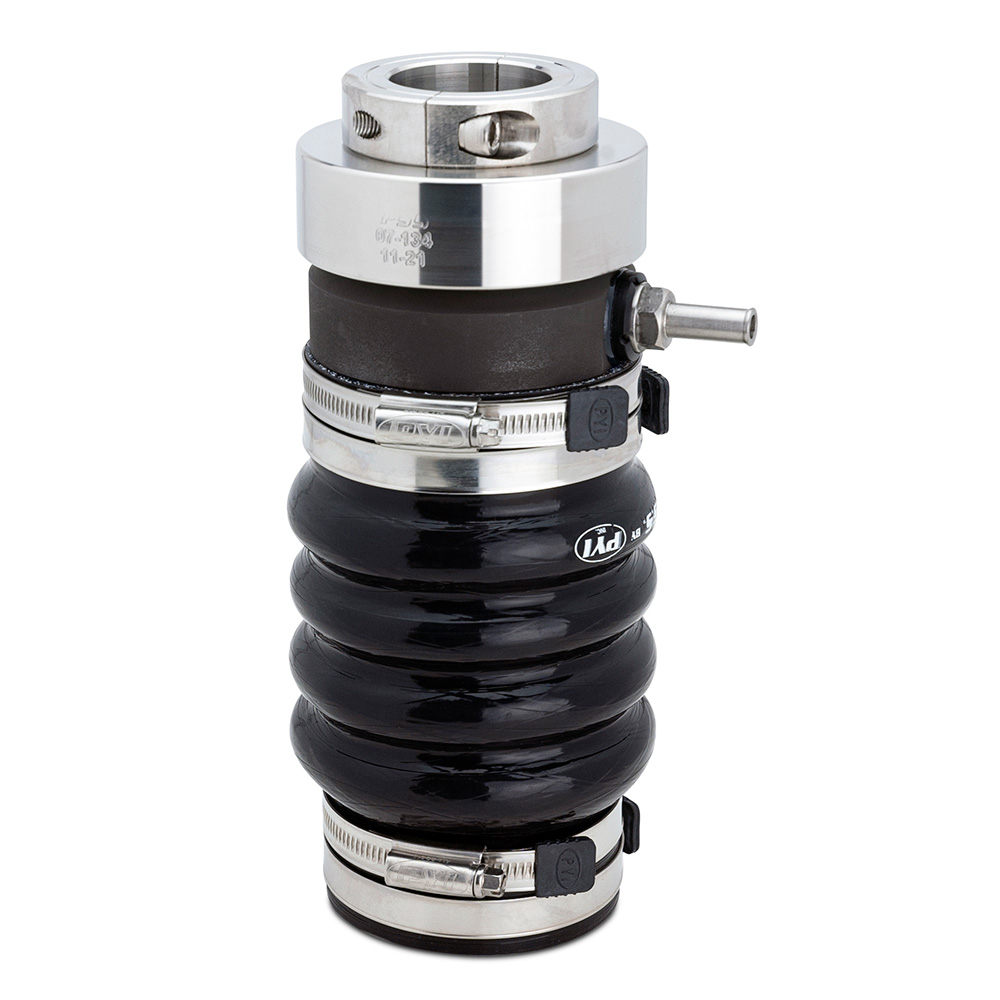

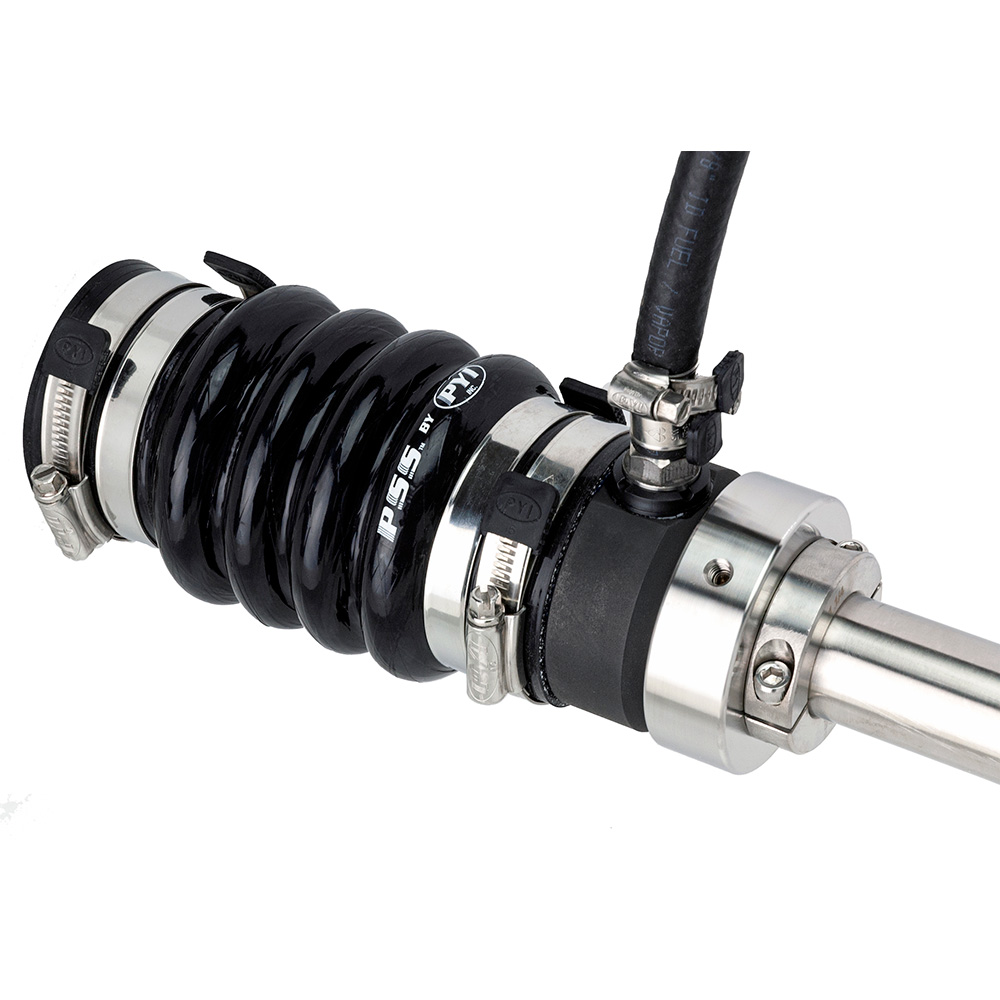

<h3>PSS Shaft Seal: The Gold Standard in Marine Dripless Sealing</h3><p>When it comes to keeping a vessel's bilge dry and its propeller shaft protected, few names carry the weight of <strong>PSS Shaft Seal</strong>. <a href="/11555-pss-shaft-seal">PSS Shaft Seal</a> has earned its reputation as the world's best-selling marine mechanical seal, trusted by recreational boaters, commercial operators, and military fleets alike. It is installed as standard equipment by some of the most respected boat builders and boatyards on the planet — a distinction that speaks volumes about its engineering and reliability.</p><h3>How the PSS Shaft Seal Works</h3><p>Unlike traditional stuffing boxes that require constant adjustment and inevitably allow water to drip into the bilge, the PSS Shaft Seal is a true mechanical face seal. The sealing surface is created between the flat faces of a rotating stainless-steel rotor and a stationary carbon flange. The carbon flange is attached to a flexible bellows fitted over the vessel's stern tube, while the rotor is secured to the propeller shaft. A built-in pre-load — created by compressing the bellows before the rotor is locked in place — maintains constant contact between the two sealing faces. This design also allows the carbon flange to "float" around the shaft, compensating for most misalignment and vibration issues without sacrificing the watertight seal.</p><p>The carbon stator itself is an engineering achievement. Machined from a high-density, resin-impregnated carbon composite and lapped to an extraordinary flatness tolerance of just 4 helium light bands, it can withstand operating temperatures up to 500°F (260°C) and will not melt even if the seal runs dry briefly — a critical advantage over lip seals or plastic face seals. Commercial vessels have logged over 40,000 engine hours on a single set of original PSS components, underscoring the brand's commitment to longevity.</p><h3>A Seal for Every Vessel</h3><p>PSS offers a thoughtfully engineered family of shaft seals to cover the full spectrum of marine applications. The <strong>Type A</strong> seal, built around a nitrile bellows with excellent petroleum resistance, is the flagship choice for pleasure power boats and sailboats, covering shaft diameters from 3/4" to 3-3/4". The <strong>PSS PRO</strong> steps up with a reinforced silicone bellows, a secondary shaft retention collar, and an optional Nitronic 50 rotor for vessels operating in highly corrosive, high-pressure, or otherwise demanding environments. The <strong>Type B</strong> seal features a Super Duplex 2507 stainless rotor and a multi-ply silicone bellows, while the <strong>Type C</strong> is a commercial-grade system designed as a weld-on solution for new construction and heavy retrofit work, capable of handling working pressures up to 25 PSI.</p><p>Beyond the core seals, PSS also manufactures the <strong>PSS Rudder Seal</strong> for rudder shaft applications, as well as a complete line of accessories including shaft retention collars, seal retention collars, silicone hose, O-ring kits, and the <strong>FlowTrue</strong> and <strong>Hy-Vent</strong> fittings for proper water supply and venting. Maintenance kits for both the Type A and PRO models make it easy to follow PSS's recommended service intervals, ensuring long-term performance.</p><h3>Certifications and Industry Recognition</h3><p>PSS Shaft Seals have been thoroughly tested and carry certifications from major marine classification societies, including Bureau Veritas, ABS (American Bureau of Shipping), and RINA. Whether the application is a weekend sailboat, a high-speed power yacht, a Coast Guard vessel, a commercial fishing boat, or a super yacht, PSS has a proven seal to match — and a global dealer network to support it.</p>
