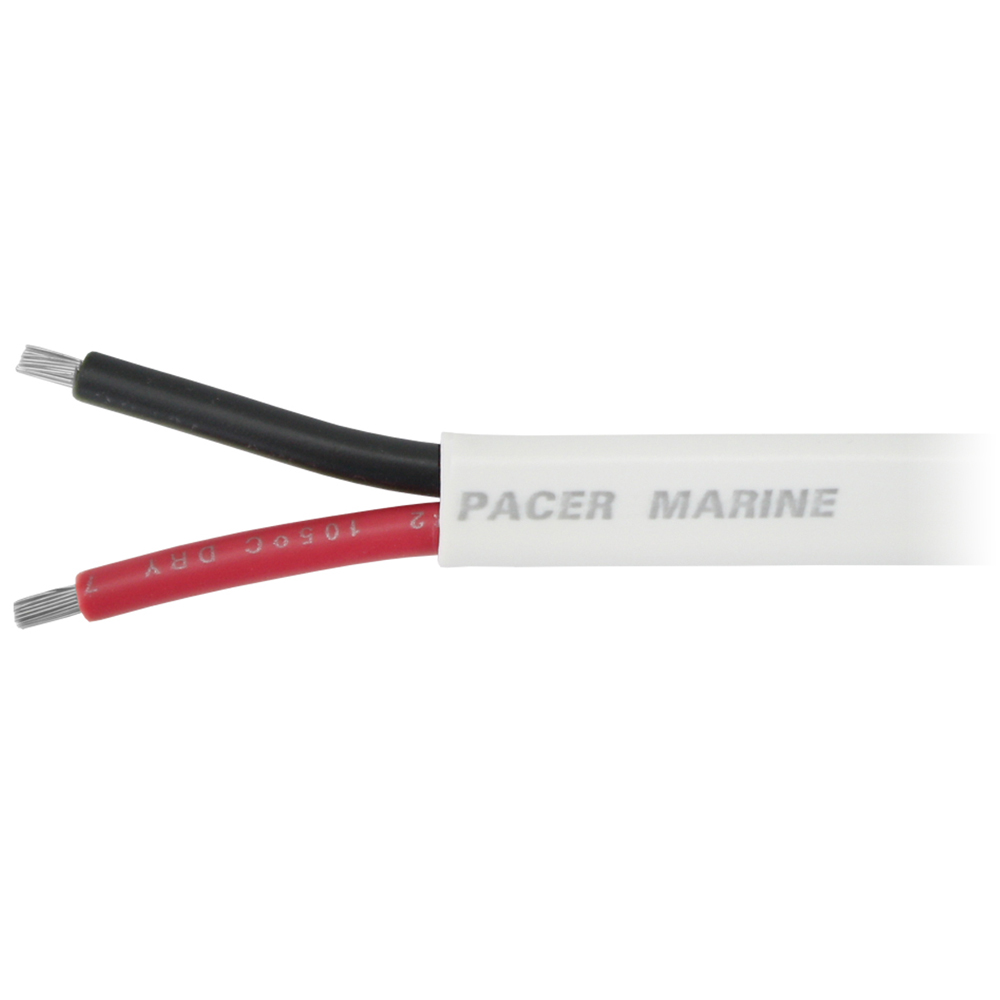

Pacer Performance W12/2DC-500 12/2 AWG Marine Duplex Wire 500 ft Red/Black

The Pacer Performance W12/2DC-500 is a 500-foot spool of 12/2 AWG duplex marine boat cable in color-coded red and black. Engineered for reliability in demanding marine environments, this two-conductor duplex wire is well-suited for low-voltage AC applications and DC circuits aboard boats, watercraft, and powersports equipment. Manufactured in-house in the USA, every foot of this cable is built to deliver consistent quality and long-term performance.

At its core, the cable uses Type III annealed, finely stranded tinned copper conductors conforming to ASTM B172 Class K. The tin coating on each conductor provides excellent corrosion resistance—critical in saltwater and high-humidity environments—while the fine stranding ensures superior flexibility for routing through tight spaces and around bends.

The color-coded PVC insulation and extruded outer jacket work together to seal out moisture, fuel, and contaminants. During the extrusion process, all voids between the inner conductors are completely filled, leaving no pathways for air or moisture intrusion. A talcum powder coating on the inner wires makes jacket removal clean and easy when terminating connections.

Key Features:

• 12 AWG, 2-conductor duplex configuration — 500-foot spool
• Red and black color-coded PVC insulation for easy polarity identification
• Type III annealed finely stranded tinned copper conductors (ASTM B172 Class K)
• Solid extruded PVC outer jacket — no voids for moisture or air intrusion
• Talcum powder coating on inner wires for easy outer jacket removal
• 600V voltage rating
• Temperature range: -20°C to 105°C
• Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
• Made in the USA

Compliance & Certifications:

• UL Standard 1426
• U.S.C.G. — 33 CFR Part 183
• ABYC — E-11.14
• Meets or exceeds UL, ABYC, and NMMA standards

Technical Specifications:

• Gauge: 12 AWG
• Number of Conductors: 2
• Cable Type: Duplex
• Conductor Material: Type III Annealed Finely Stranded Tinned Copper (ASTM B172 Class K)
• Insulation: Flexible, color-coded PVC (-20°C to 105°C)
• Voltage Rating: 600V
• Colors: Red, Black
• Length: 500 feet
