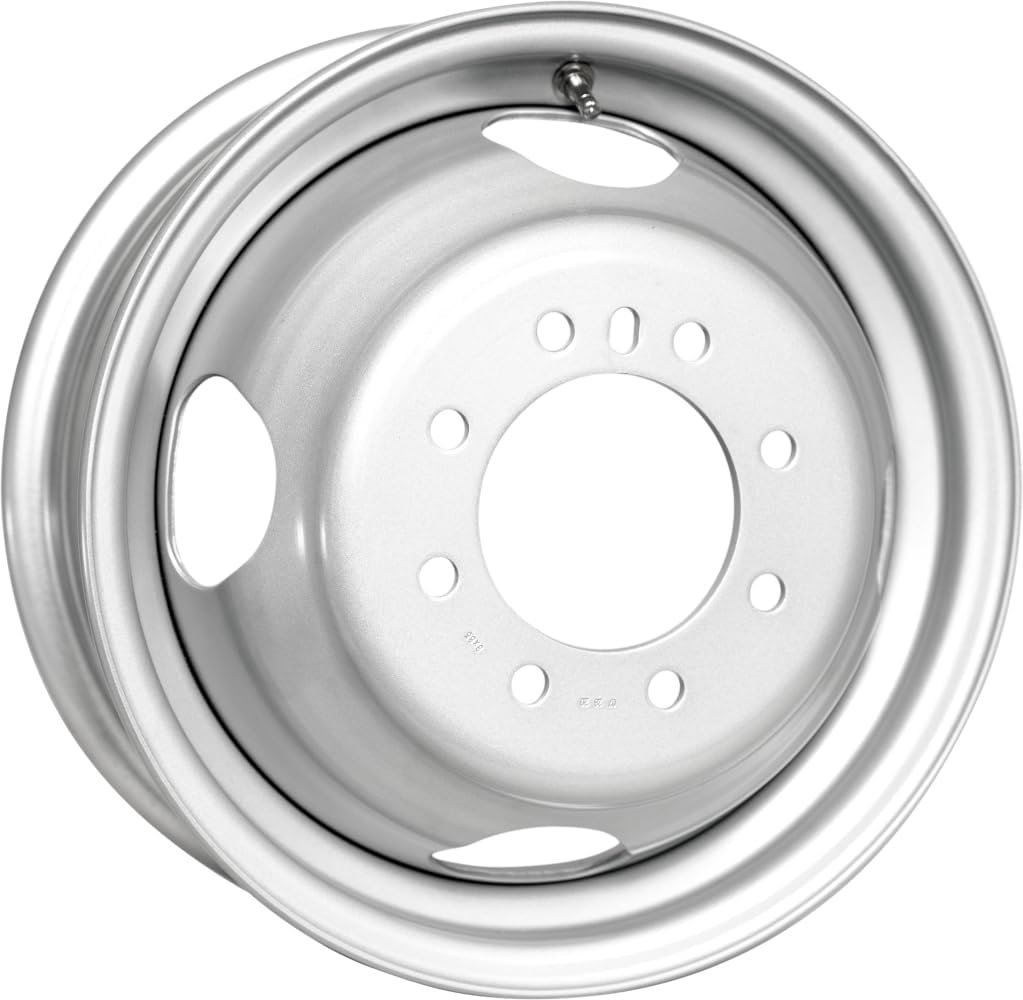

Taskmaster MX660865BDX1CHDBX 16x6 Steel Dually Trailer Wheel 8x6.5 Black

The Taskmaster MX660865BDX1CHDBX is a heavy-duty steel dually trailer wheel designed for dual-wheel trailer applications. This 16-inch by 6-inch hub-piloted wheel features a robust two-piece welded construction that delivers exceptional strength and reliability for cargo, utility, and heavy-duty trailers.

Key Specifications:

• Size: 16 inches diameter x 6 inches width

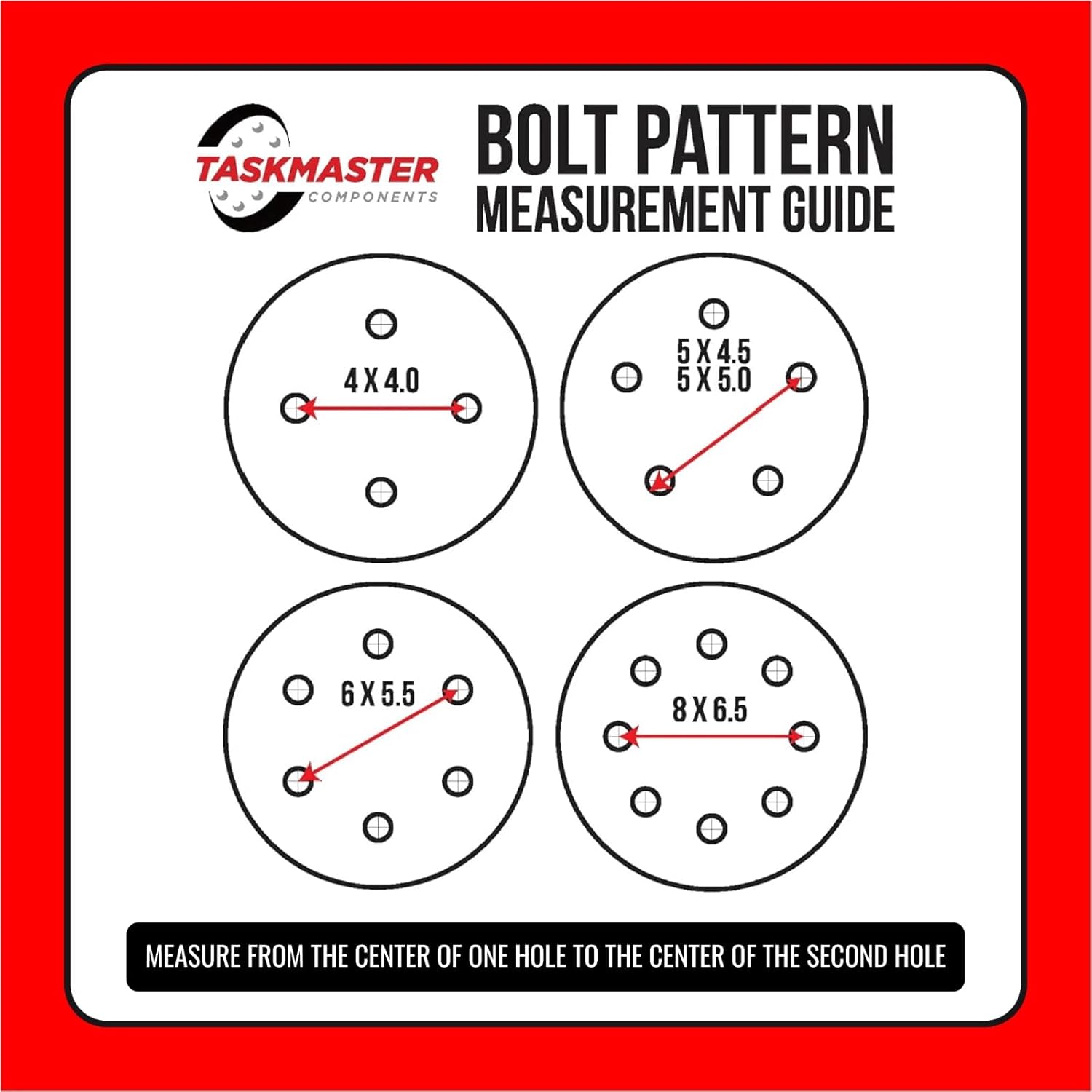

• Bolt Pattern: 8 on 6.5 inches (8x165.1mm)
• Pilot Diameter: 4.77 inches (hub-piloted design)
• Offset: 5.35 inches (allows positioning as inner or outer wheel in dually setup)
• Load Capacity: 3,890 lbs per wheel
• Finish: Black painted steel with durable acrylic enamel coating
• Construction: Two-piece welded steel with spun-formed center disc

Features and Benefits:

• Hub-piloted design requires flange nuts for proper installation (sold separately)
• Dual-wheel offset configuration allows wheel to function as either inner or outer position
• High-grade steel construction throughout for maximum strength and durability
• Durable acrylic enamel finish resists corrosion and damage better than standard powder coating
• Precision valve stem holes prevent slow air leaks common in lower-quality wheels
• Compatible with trailers using 8-lug hub assemblies with 6.5-inch bolt circle

This wheel is specifically engineered for dually trailer applications where dual wheels are mounted on each side of the axle for increased load capacity and stability. The 5.35-inch offset allows proper spacing when installed as the inner wheel of a dual-wheel setup, while maintaining correct positioning when used as the outer wheel.
