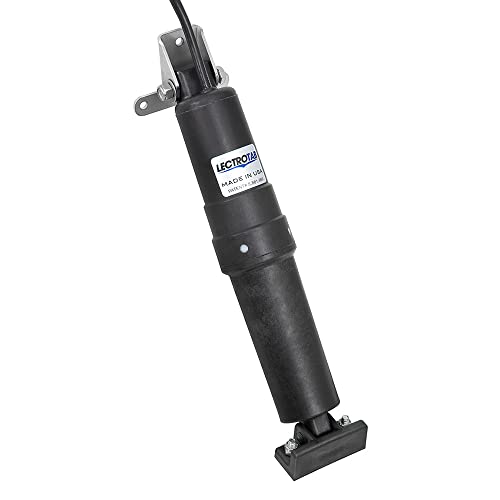

Lectrotab A-BK-20 Heavy Duty 12V Trim Tab Actuator 6' Cable

The Lectrotab A-BK-20 is a heavy-duty 12-volt trim tab actuator engineered for boats operating at high speeds or in rough water conditions. This precision-engineered actuator combines quiet operation with a non-hydraulic, maintenance-free design that eliminates the risk of hydraulic fluid leaks.

Heavy-Duty Construction:

This actuator features a reinforced upper mounting boss and a robust 12-gauge stainless steel upper bracket designed to withstand extreme marine conditions. The non-metallic permanently sealed housing ensures complete corrosion resistance and won't deteriorate from sun exposure or underwater operation.

Key Features:

• Reinforced actuator upper mounting boss for enhanced durability
• 12-gauge stainless steel upper mounting bracket
• Protected upper ram seal location resistant to damage from fouled ram or barnacle growth
• Internal pressure equalization system for reliable performance
• Internal brake system prevents unwanted tab movement when underway or backing down
• Quiet operation for improved onboard comfort
• Fully load tested to push 1,000 lbs of force
• Self-contained design with no components required inside the boat

Technical Specifications:

• Voltage: 12V DC
• Stroke Length: 2.25 inches (57mm)
• Cable Length: 6 feet (1.8m)
• Vertical Height: 11.875 inches (302mm)
• Upper Mounting Bracket: 12-gauge stainless steel
• Lower Mounting Bracket: Standard profile

The totally self-contained design ensures easy installation with all components housed in the permanently sealed actuator assembly. This actuator provides very accurate tab positioning and maximum lift force for optimal boat performance and handling.

Sold individually.
