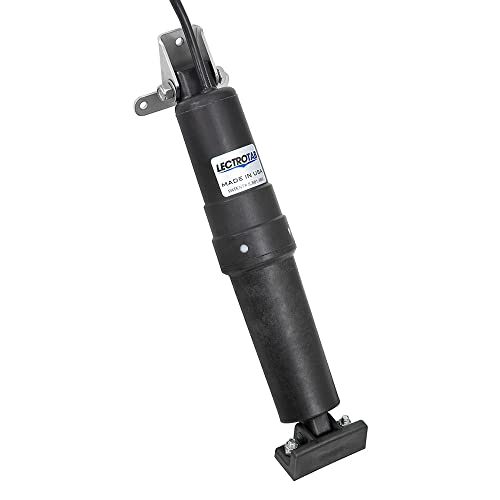

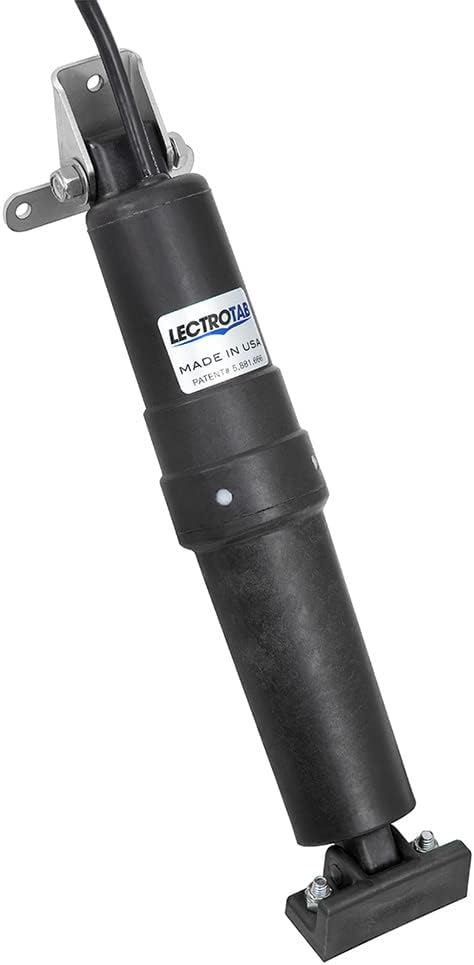

Lectrotab A-BK-43 Heavy Duty 12V Trim Tab Actuator 23' Cable

The Lectrotab A-BK-43 is a heavy-duty 12V trim tab actuator designed for boats operating at high speeds or in rough conditions. This precision-engineered actuator combines quiet operation with a non-hydraulic, maintenance-free design that eliminates the risk of oil leaks common with hydraulic systems.

The heavy-duty construction features a reinforced upper mounting boss and a 12-gauge stainless steel upper bracket for exceptional durability. The actuator assembly is packaged in a non-metallic, permanently sealed housing that is completely corrosion-free and will not deteriorate from sun exposure or underwater operation. All components are self-contained, requiring no installation inside the boat.

Key Features:

• Stainless steel upper mounting bracket with reinforced actuator mounting boss
• Protected upper ram seal location that cannot be damaged by fouled ram or barnacle growth
• Internal pressure equalization system for reliable performance
• Internal brake system prevents unwanted tab movement when underway or backing down
• Quiet operation for improved onboard comfort
• Fully load tested to push 1,000 lbs of force
• Non-metallic external structure that won't corrode or deteriorate
• Maintenance-free design with no hydraulic oil to leak
• Ensures precise tab positioning for maximum lift force

Technical Specifications:

• Voltage: 12V DC
• Stroke Length: 2.25 inches (57 mm)
• Cable Length: 23 feet (7 meters)
• Actuator Vertical Height: 11.875 inches (302 mm)
• Upper Mounting: Bolt, nut and washer included
• Lower Mounting: Bolt, nut, spacer and washer included

Sold individually. The standard or low-profile transom mounting bracket allows for easy installation on a wide range of vessel transoms.
