Pacer Performance TDT04F-2RP DT Deutsch Receptacle Repair Kit 14-18 AWG 2 Position

The Pacer Performance DT Deutsch Receptacle Repair Kit provides a complete solution for repairing or building 2-position DT series connectors for 14-18 AWG wire applications. This kit uses larger size 16 contacts designed for 14 AWG wire, with each contact offering a 13-amp continuous capacity. The DT series connectors are engineered for versatility, allowing multiple contact sizes within a single shell housing.

Key Features:

• Complete repair kit with all components needed to assemble a connector
• Includes extra terminals for backup or field repairs
• Wedge locks ensure proper contact alignment and secure retention
• Hand-insertable and removable contacts for easy assembly
• Redundant silicone seals for enhanced environmental protection
• Cavity plugs included to seal unused circuits
• Glass fiber reinforced plastic housing for durability

Technical Specifications:

• Cavity Count: 2 position rectangular receptacle
• Contact Size: 16 (13 amp continuous capacity)
• Wire Gauge: 14-18 AWG (optimized for 14 AWG)
• Pin Configuration: Receptacle with pins
• Operating Temperature Range: -55°C to 125°C (-67°F to 257°F)
• Ingress Protection: IP68 and IP6K9K rated
• Certifications: EU RoHS/ELV compliant, UL-94 Recognized

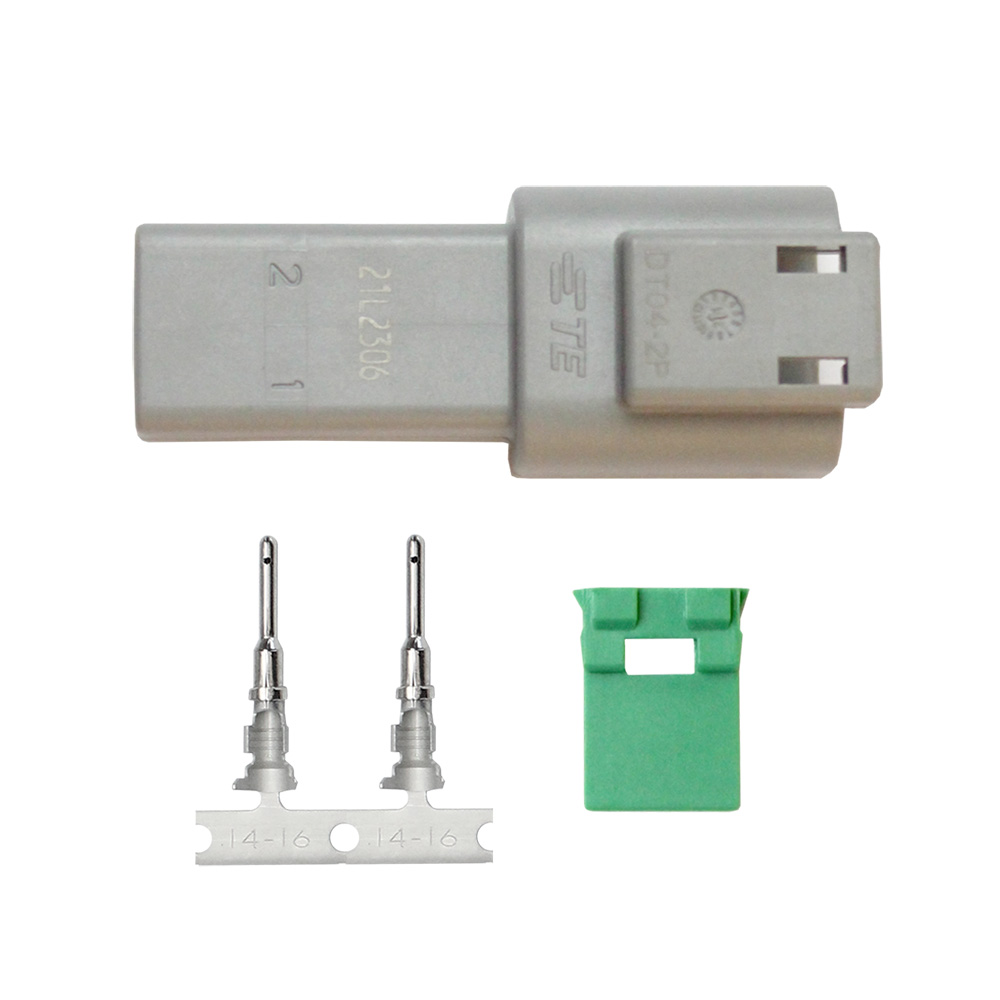

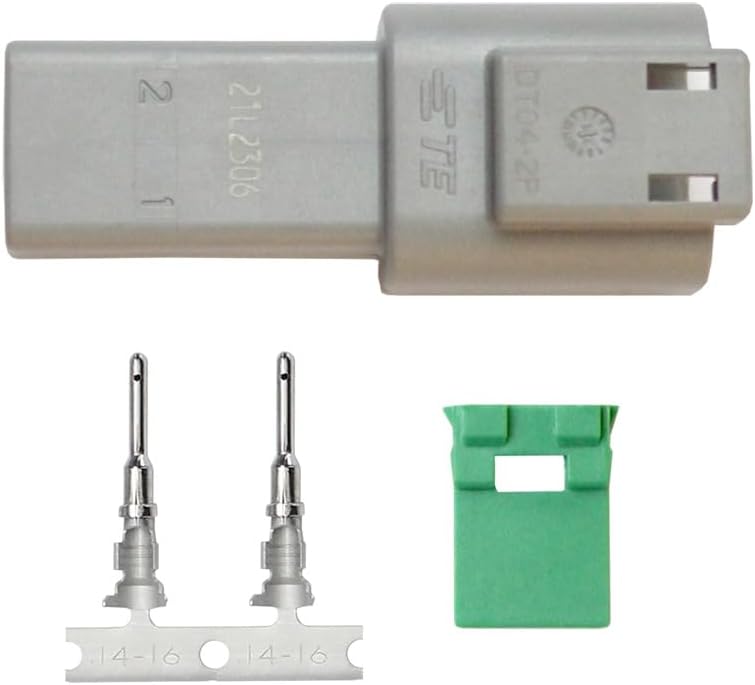

Kit Contents:

• (1) 2-position rectangular receptacle housing
• (1) 2-position wedge lock
• (3) Pin terminals (includes 1 spare)

Ideal for wire-to-wire applications requiring field-proven reliability in demanding environments, these enclosed connectors deliver rugged quality and long-term performance in automotive, marine, and industrial applications.
