Pacer Performance TDT04F-4RP DT Deutsch Receptacle Repair Kit 14-18 AWG 4-Position

The Pacer Performance DT Deutsch Receptacle Repair Kit provides all the components needed to assemble a complete 4-position Deutsch DT series receptacle connector for 14-18 AWG wire applications. This professional-grade kit uses larger size 16 contacts rated for 13 amps continuous capacity, specifically designed for 14 AWG wire installations requiring reliable electrical connections in demanding environments.

Key Features:

• Complete repair kit includes receptacle housing, wedge lock, pins, and cavity plugs
• Size 16 contacts compatible with 14-18 AWG wire (13 amp continuous rating per contact)
• Glass fiber reinforced plastic rectangular receptacle housing
• Wedge locks ensure proper contact alignment and retention
• Redundant silicone seals for superior moisture protection
• Hand-insertable and removable contacts for easy assembly and service
• IP68 and IP6K9K ingress protection rating for dust and water resistance
• Wide operating temperature range: -55°C to 125°C (-67°F to 257°F)

Technical Specifications:

• Number of Cavities: 4 positions
• Contact Type: Pins (male contacts)
• Contact Size: 16 (13 amp capacity)
• Wire Gauge: 14-18 AWG (optimized for 14 AWG)
• Housing Material: Glass fiber reinforced plastic
• Certifications: UL-94 Recognized, EU RoHS/ELV compliant

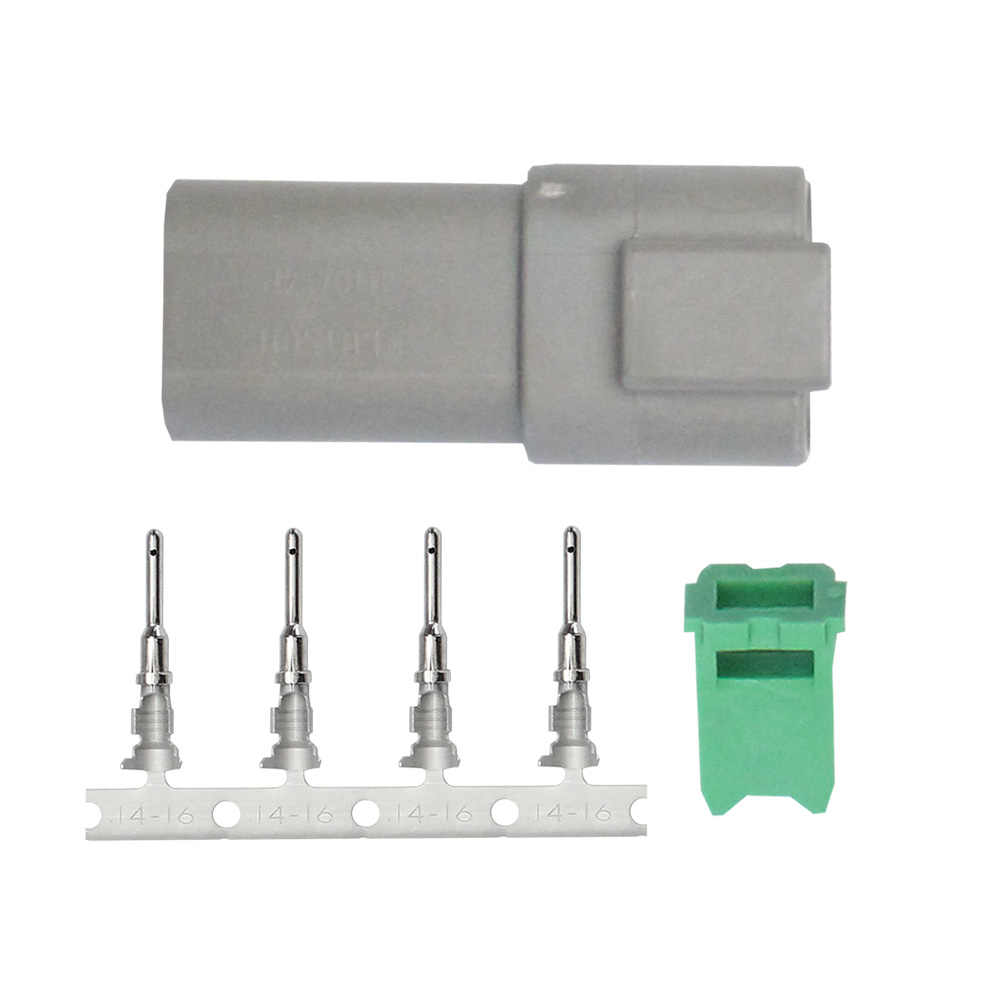

Kit Contents:

• (1) 4-position receptacle housing
• (1) 4-position wedge lock
• (5) male pin contacts (includes one extra)
• (2) cavity plugs for sealing unused circuits

The DT Deutsch series connectors are ideal for wire-to-wire applications requiring field-proven reliability in harsh conditions, including automotive, marine, industrial, and off-road applications. The included cavity plugs allow you to seal unused positions while maintaining the connector's environmental protection rating.
