Pacer Performance TDT04F-8RP DT Deutsch Receptacle Repair Kit 14-18 AWG 8 Position

The Pacer Performance DT Deutsch Receptacle Repair Kit provides all the components needed to assemble a complete 8-position receptacle connector for professional wire-to-wire applications. This kit uses size 16 contacts designed for 14-18 AWG wire with a 13-amp continuous capacity per contact, making it ideal for automotive, marine, and powersports electrical systems.

Key Features:

• Complete 8-position receptacle kit with all necessary assembly components
• Size 16 contacts rated for 13 amps continuous per circuit
• Compatible with 14-18 AWG wire gauge applications
• Wedge lock system ensures proper contact alignment and retention
• Hand-insertable and removable contacts for easy assembly and service
• Redundant silicone seals provide superior environmental protection
• IP68 and IP6K9K rated for dust and water ingress protection
• Wide operating temperature range: -55°C to 125°C (-67°F to 257°F)
• Glass fiber reinforced plastic housing for durability
• Includes extra terminals and cavity plugs for flexible configuration

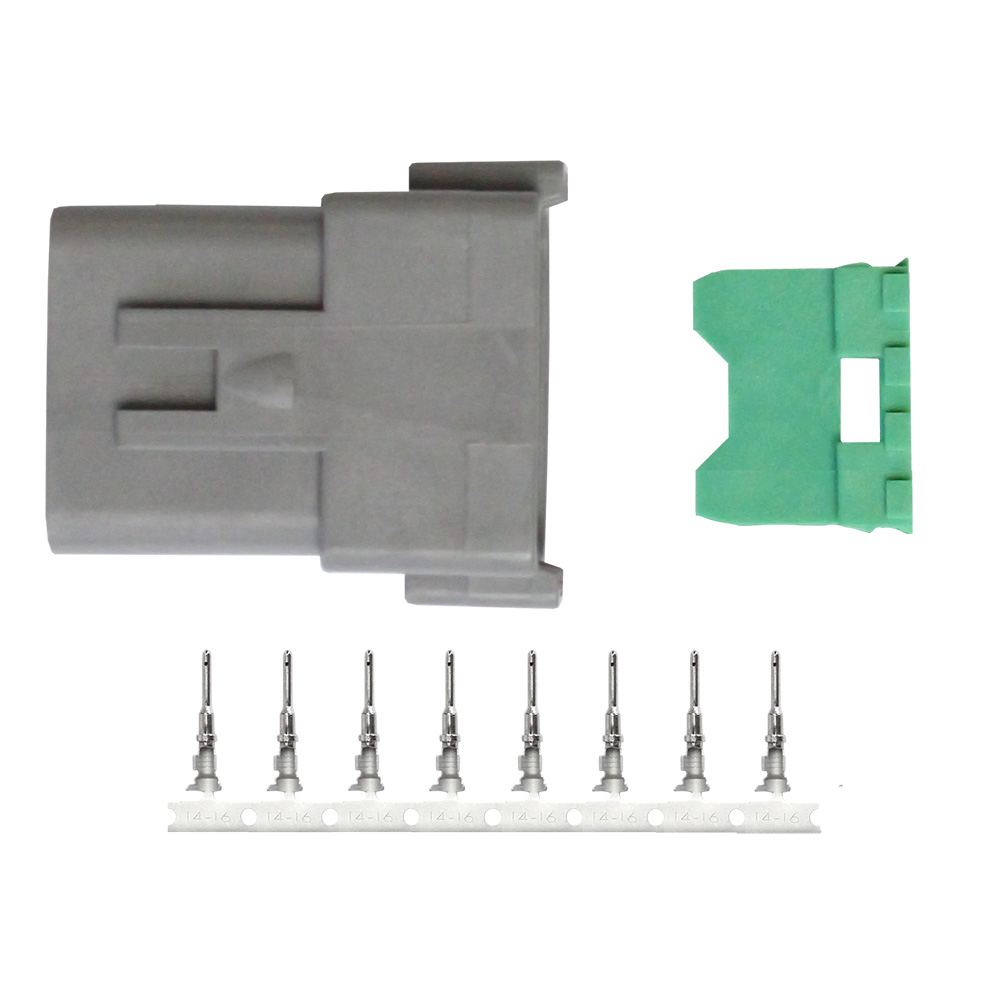

Kit Contents:

• 1 eight-position rectangular receptacle housing
• 1 eight-position wedge lock
• 10 pin contacts (includes 2 extras)
• 4 cavity plugs to seal unused circuits

Specifications:

• Contact type: Pins (male contacts)
• Number of cavities: 8
• Wire gauge: 14-18 AWG (optimized for 14 AWG)
• Current rating: 13 amps per contact
• Contact size: 16 (Deutsch standard)
• Compliances: EU RoHS/ELV, UL-94 Recognized

This DT series connector delivers field-proven reliability for demanding applications requiring sealed, environmentally protected electrical connections. The included cavity plugs allow you to seal unused positions, maintaining the connector's IP rating even in partial configurations.
