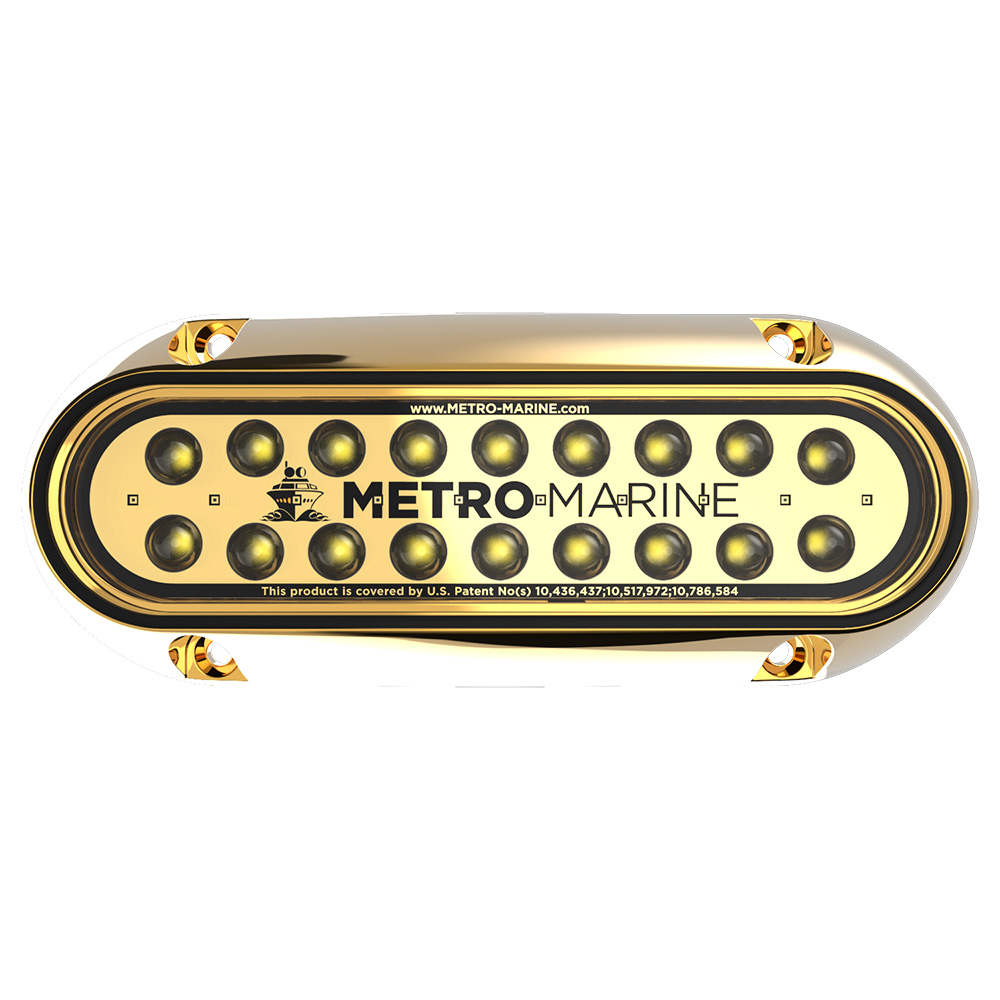

Metro Marine F-BME1-H-W3-45 High-Output Elongated Underwater LED Light White 45° Beam

The Metro Marine F-BME1-H-W3-45 is a high-output elongated underwater lighting fixture featuring intelligent monochromatic white LEDs with a 45° beam angle. Designed for marine applications, this fixture is built to be mounted up to 4.6 meters (15 feet) below the water's surface, delivering vibrant white illumination for yachts, docks, sea walls, fountains, and theme park installations.

Key Features:

• 18 high-output LEDs per fixture for uniform, fully-mixed light output
• Watertight aluminum bronze housing with silicon bronze hardware for maximum corrosion resistance
• 45° optical lensing ideal for mid- to large-scale vessels ranging from 10M (32') to 30M (100')
• Clear quartz lens material for superior durability and light transmission
• Patented UVC LED lens-cleaning technology prevents biofouling and keeps lenses crystal clear
• Patent-pending anti-condensation assembly methodology eliminates internal moisture
• Manufactured in a Class 1000 Clean Room environment
• Wide input voltage range: 10VDC to 30VDC

Technical Specifications:

• Power Consumption: 45.5 watts
• Beam Angle: 45 degrees
• Operating Temperature Range: -40°F to 122°F
• Dimensions: 7.23" W x 2.91" H x 1.09" D
• Weight: 2.42 lbs

Metro Marine's F-Series underwater lighting fixtures leverage advanced LED control technology and innovative optics to deliver superior performance in demanding marine environments. The integrated UVC LED system actively prevents algae and organic growth on the lens surface, ensuring consistent light output and preventing fixture overheating. The anti-condensation design protects internal components from corrosion, extending fixture life and reliability.
