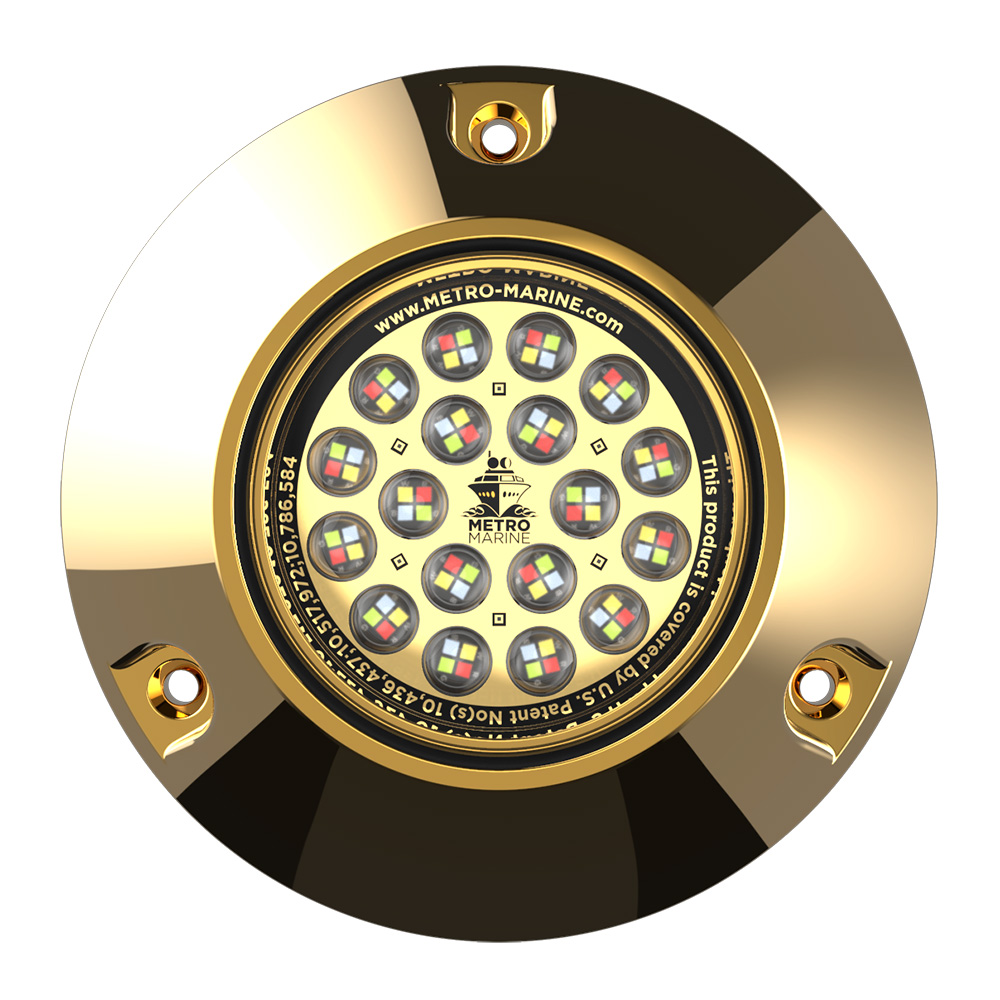

The Metro Marine F-BMR1-FS-90 is a high-output submersible underwater LED light fixture featuring intelligent full-spectrum RGBW technology with a 90° beam angle. Designed for marine environments, this luminaire can be mounted up to 15 feet below the water's surface to deliver vibrant, color-changing illumination for yachts, docks, sea walls, fountains, and theme park installations.
Advanced LED Array Technology:
Part of Metro Marine's F-Series line, this fixture incorporates 72 high-output LEDs arranged in 18 individually optically lensed RGBW configurations. Each configuration includes a separate white LED, producing higher-quality whites and richer color blends than traditional RGB+White fixtures. The 90° optical lensing makes this luminaire ideal for lighting mid- to large-scale structures and yachts ranging from 32 to 100 feet in length with uniform color control and high efficiency.
Marine-Grade Construction:
Built with a watertight aluminum bronze housing and silicon bronze hardware, the F-BMR1-FS-90 is engineered to withstand harsh marine conditions. The clear quartz lens material provides superior optical clarity and durability in underwater applications.
Patented Clear Lens Technology:
Metro Marine's innovative UVC LED system actively prevents biofouling growth on the lens surface, eliminating the light blockage and overheating issues common in underwater lighting fixtures. This patented technology keeps lenses crystal clear without manual cleaning.
Anti-Condensation Design:
Manufactured in a Class 1000 clean room using patent-pending assembly methodology, this fixture completely eliminates internal condensation that can cause corrosion and premature failure in underwater lighting systems.
Technical Specifications:
- Beam Angle: 90°
- Input Voltage: 10-30 VDC
- Power Consumption: 86W
- Diameter: 5.47 inches
- Depth: 1.12 inches
- Weight: 3.54 lbs
- Lens Material: Clear Quartz
- Maximum Mounting Depth: 15 feet (4.6 meters)
- Operating Temperature Range: -40°F to 122°F
- LED Configuration: 72 high-output LEDs (RGBW)
