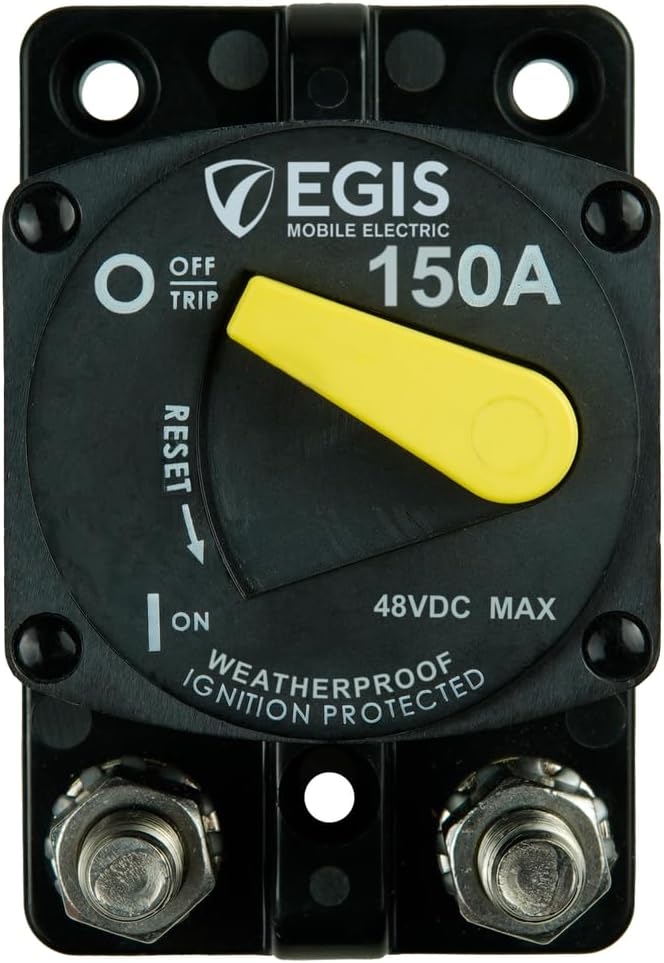

Egis Mobile Electric 4704-150 150A Surface Mount Circuit Breaker 48V DC

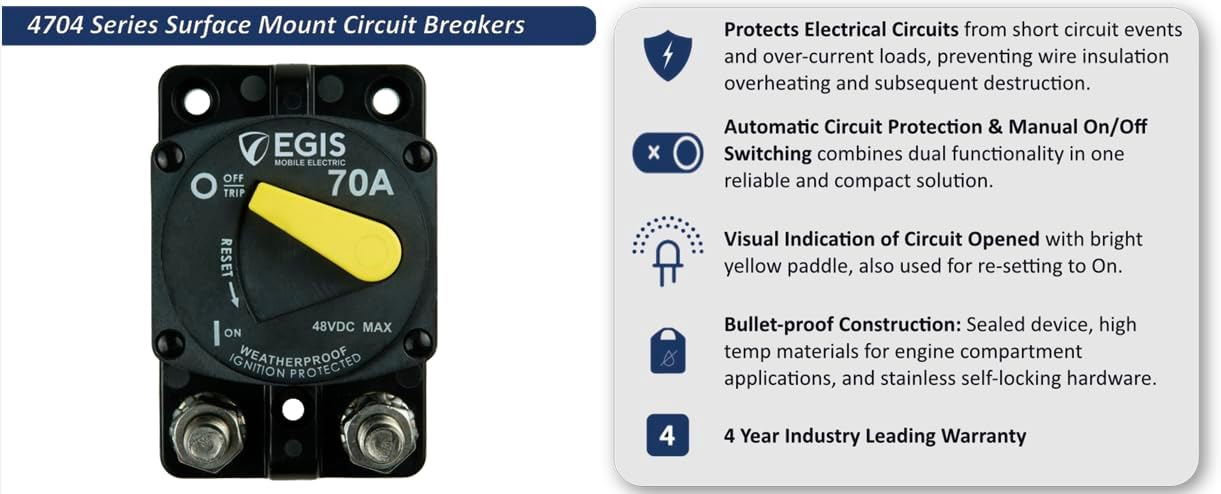

The Egis Mobile Electric 150A Surface Mount 87 Series Circuit Breaker provides robust circuit protection for marine, RV, and mobile power systems. This high-current breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation damage and potential system failures.

Key Features:

• 150A continuous current rating with 48 VDC maximum voltage capacity
• IP66 weatherproof rating - fully sealed against dust and water intrusion for harsh environment reliability
• Dual-function design combines automatic circuit protection with manual on/off switching
• High interrupt current capability: 5,000A at 14 VDC, 3,000A at 28 VDC for large battery bank protection
• 2,000-cycle electrical and manual switching endurance at full current
• Reinforced mounting tabs engineered to withstand vibration stress
• Stainless steel hardware with serrated flange nuts for corrosion and vibration resistance
• Surface mount design allows installation adjacent to battery systems in any location
• High-visibility ON/OFF controls with high-temperature rating

Technical Specifications:

• Continuous Current: 150A
• Maximum Voltage: 48 VDC
• Interrupt Current: 5,000A @ 14 VDC / 3,000A @ 28 VDC
• Cycling Endurance: 2,000 cycles
• Ingress Protection: IP66

Ideal for 12V, 24V, 36V, and 48V DC applications in mobile electric vehicles, marine systems, RVs, and off-grid power installations. Provides convenient circuit isolation for maintenance while delivering integral protection. Made in the USA with high-quality components and backed by a 4-year warranty.
