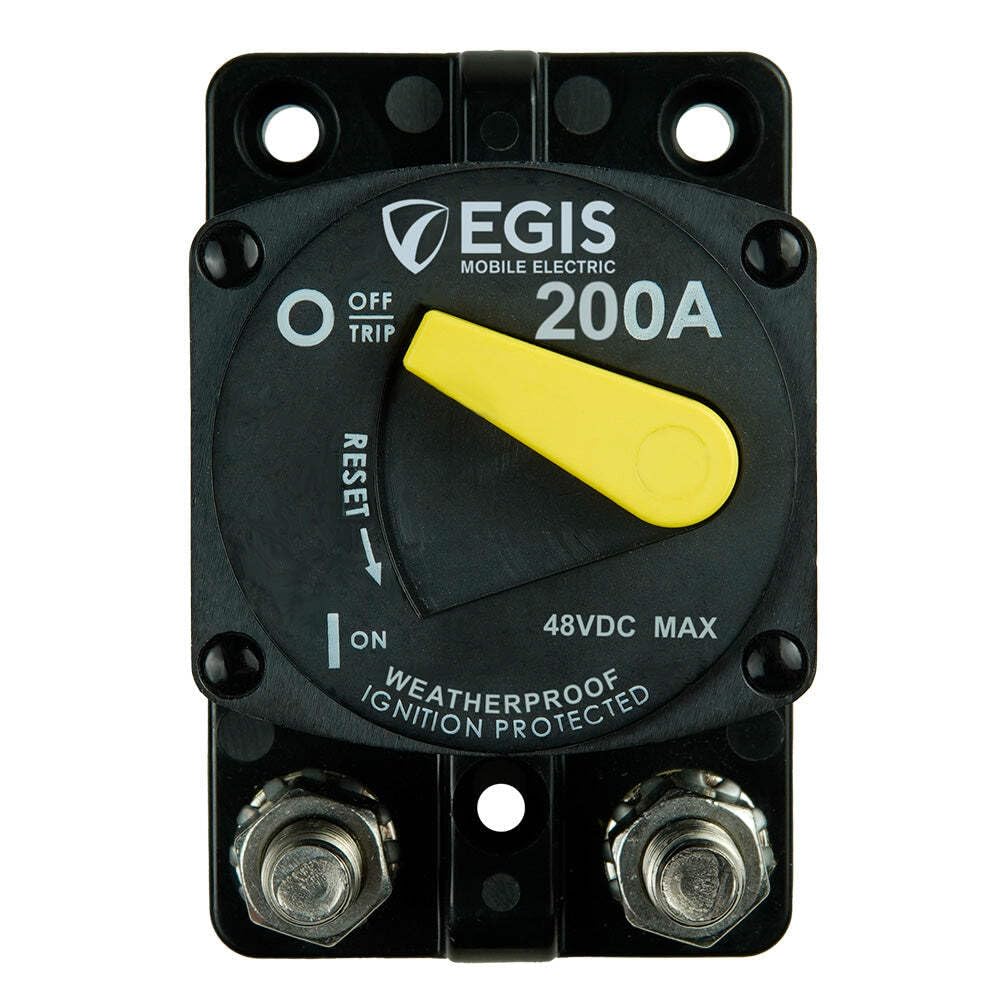

Egis Mobile Electric 4704-200 200A Surface Mount Circuit Breaker 48V DC

The Egis Mobile Electric 4704-200 is a 200-amp surface mount circuit breaker from the 87 Series, designed to protect electrical circuits from short-circuit events and over-current loads while preventing wire insulation damage. This robust breaker combines automatic circuit protection with manual on/off switching functionality in a compact, reliable package.

Key Features:

• IP66 sealed enclosure protects against dust and water intrusion for long-term reliability
• 48 VDC maximum voltage rating supports 12V, 24V, 36V, and 48V DC applications
• High electrical endurance rated for 2,000 manual switching cycles at full current
• High interrupt current capability: 5,000A at 14 VDC, 3,000A at 28 VDC
• Reinforced mounting tabs withstand vibration and stress for structural durability
• Stainless steel hardware with serrated flange nuts resists corrosion and vibration
• High-visibility ON/OFF controls with high-temperature rating for all installation environments

Applications:

• Battery system protection for marine, RV, and mobile power applications
• Circuit isolation and maintenance switching for load circuits
• Adjacent mounting to battery banks regardless of location
• Harsh environment installations requiring sealed, corrosion-resistant components

Specifications:

• Continuous Current Rating: 200A
• Maximum Voltage: 48 VDC
• Interrupt Current: 5,000A @ 14 VDC, 3,000A @ 28 VDC
• Switching Endurance: 2,000 cycles at full current
• Ingress Protection: IP66
• Mounting Type: Surface mount

Proudly manufactured in the USA with high-quality components. Backed by a 4-year warranty.
