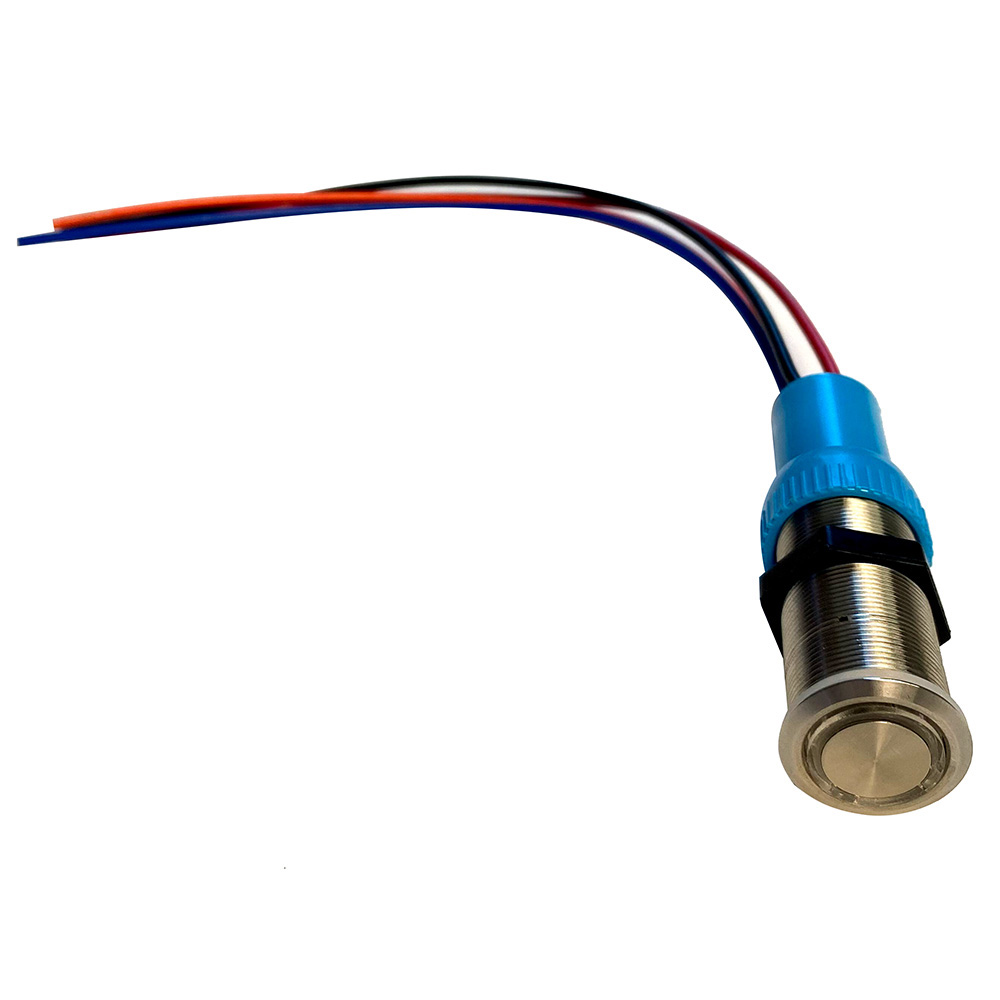

Bluewater 9057-2113-4 19mm Momentary Push Button Switch Blue/Red LED

The Bluewater 19mm push button switch features a stainless steel plated metal design that adds modern style to any marine, automotive, or powersports dash panel. This momentary contact switch operates in Off/(On) mode, returning to the off position when released.

Key Features:

• IP69K waterproof rating with included gasket for maximum protection against water and dust intrusion
• Dual-color LED illumination: blue backlight when off, changes to red when activated for clear status indication
• Stainless steel construction for corrosion resistance and durability
• Pre-wired with 4-foot lead for convenient installation
• 19mm mounting diameter fits standard dash panel cutouts
• Rated for 15A at 12-24VDC for versatile electrical applications

Specifications:

• Function: Off-(On) momentary contact
• Switch Rating: 15A at 12-24VDC
• LED Colors: Blue (off) / Red (on)
• Material: Stainless steel plated metal
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles
• Waterproof Rating: IP69K
• Lead Length: 4 feet
• Maximum Panel Thickness: 6mm

Installation:

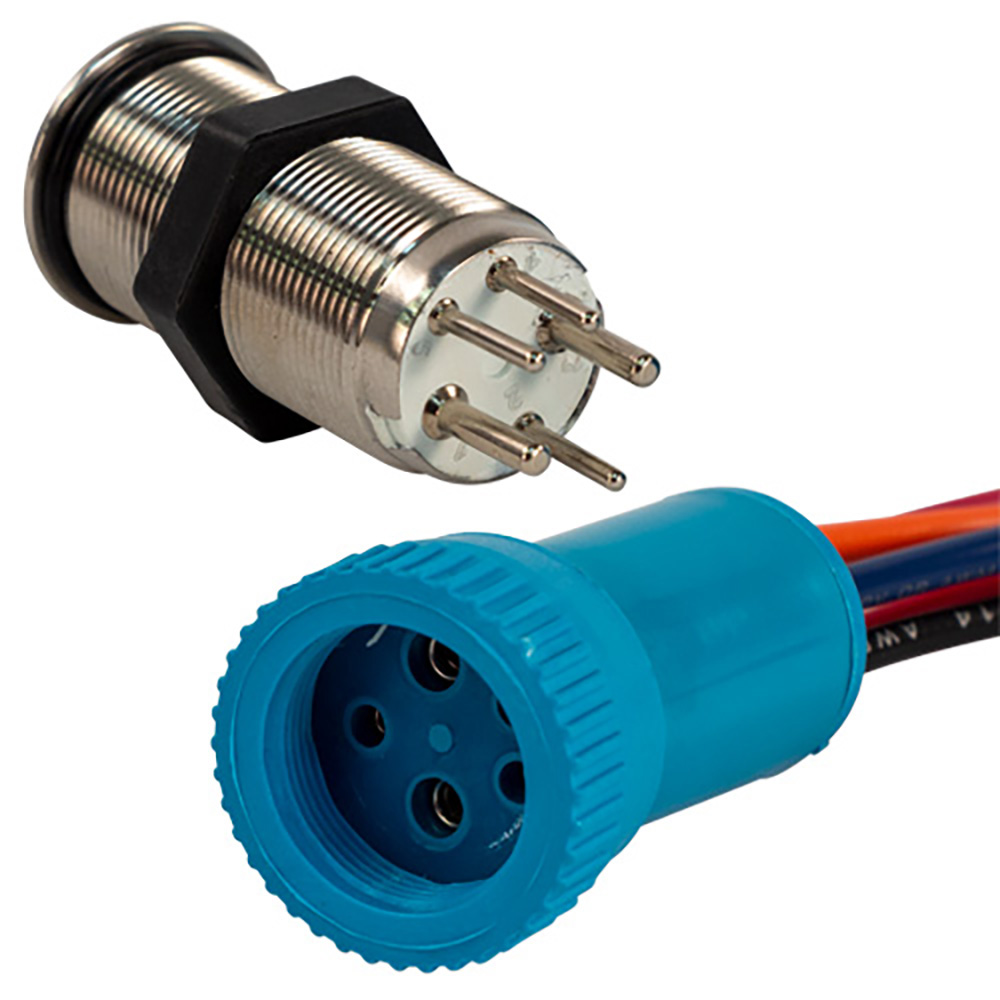

Installation requires drilling a 19mm hole in panel material up to 6mm thick. The switch features color-coded wiring with 3 contacts for the button function and 2 contacts for the LED illumination, simplifying the connection process.
