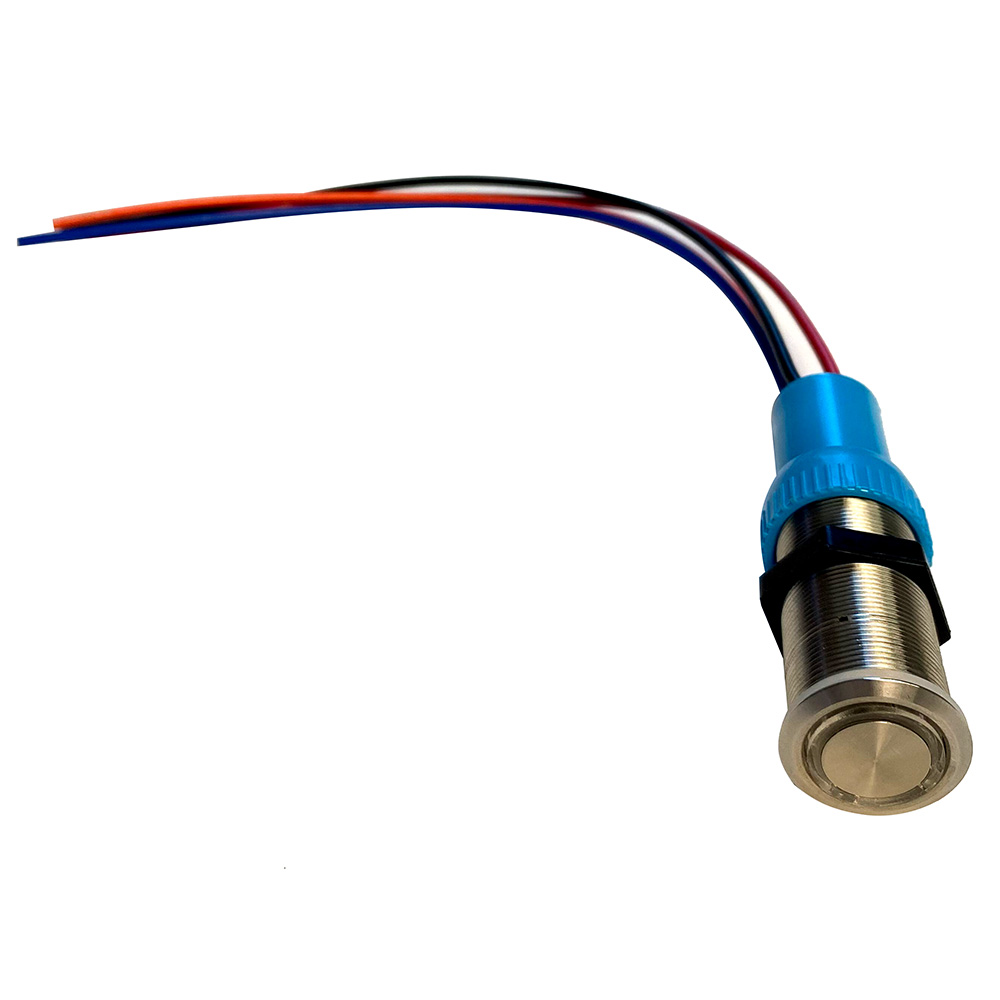

Bluewater 9057-2113-1 19mm Momentary Push Button Switch Blue/Red LED

The Bluewater 9057-2113-1 is a premium 19mm push button switch featuring Off/(On) momentary contact operation, ideal for marine electronics, automotive dashboards, and custom control panels. This stainless steel plated metal button combines modern styling with rugged durability.

Key Features:

• Dual-color LED illumination: blue backlight when off, red indicator when activated
• IP69K waterproof rating with included gasket for harsh marine and automotive environments
• Stainless steel construction resists corrosion and provides long-lasting performance
• Pre-wired with 1-foot lead for convenient installation
• Momentary contact design (Off-On) - button activates only while pressed
• Color-coded wire connections for simplified wiring

Technical Specifications:

• Button diameter: 19mm
• Switch rating: 15A at 12-24VDC
• Material: Stainless steel with plated finish
• Mechanical life: 50,000 cycles
• Electrical life: 10,000 cycles
• LED colors: Blue (off state), Red (on state)
• Lead length: 12 inches
• Maximum panel thickness: 6mm

Installation:

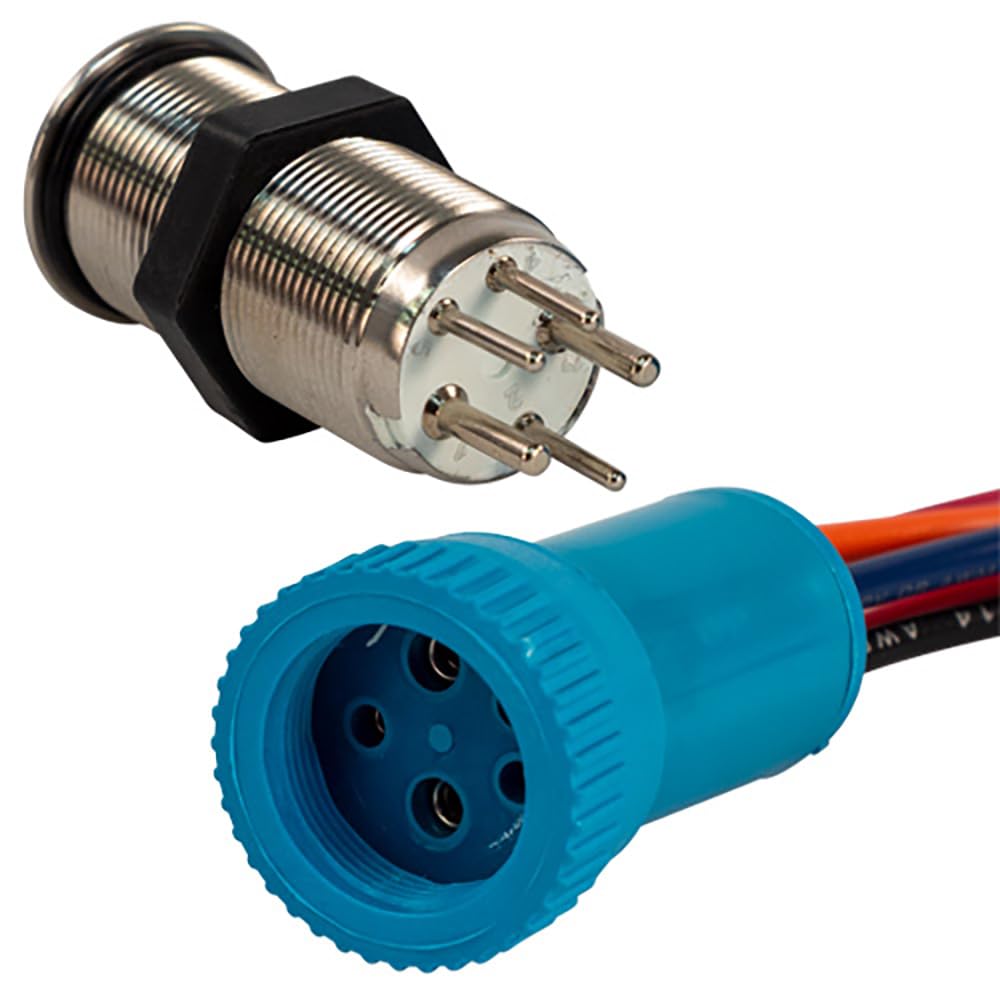

Installation requires drilling a 19mm (approximately 3/4 inch) hole in your panel or dashboard. The switch fits panels up to 6mm thick. Connect the three color-coded button contacts and two LED contacts, secure with the included hardware and gasket, and you're ready to go. The IP69K rating ensures reliable performance even in wet conditions.

Perfect for controlling bilge pumps, navigation lights, accessory circuits, horn buttons, or any momentary-contact application in marine, RV, automotive, or industrial settings.
