Bluewater 9057-3113-1 19mm Push Button Switch Off/On/On Blue/Green/Red LED

The Bluewater 19mm push button switch delivers professional-grade control with intelligent LED feedback for marine, automotive, and powersports applications. This stainless steel switch features an Off/On/On momentary contact configuration with color-changing LED illumination that provides instant visual status confirmation.

Key Features:

• Stainless steel construction with corrosion-resistant finish for harsh environments
• IP69K waterproof rating with included gasket for complete moisture protection
• Tri-color LED system: Blue (off), Green (first on position), Red (second on position)
• Off/On/On standard contact configuration for dual-function control
• 15A rating at 12-24VDC for reliable high-current switching

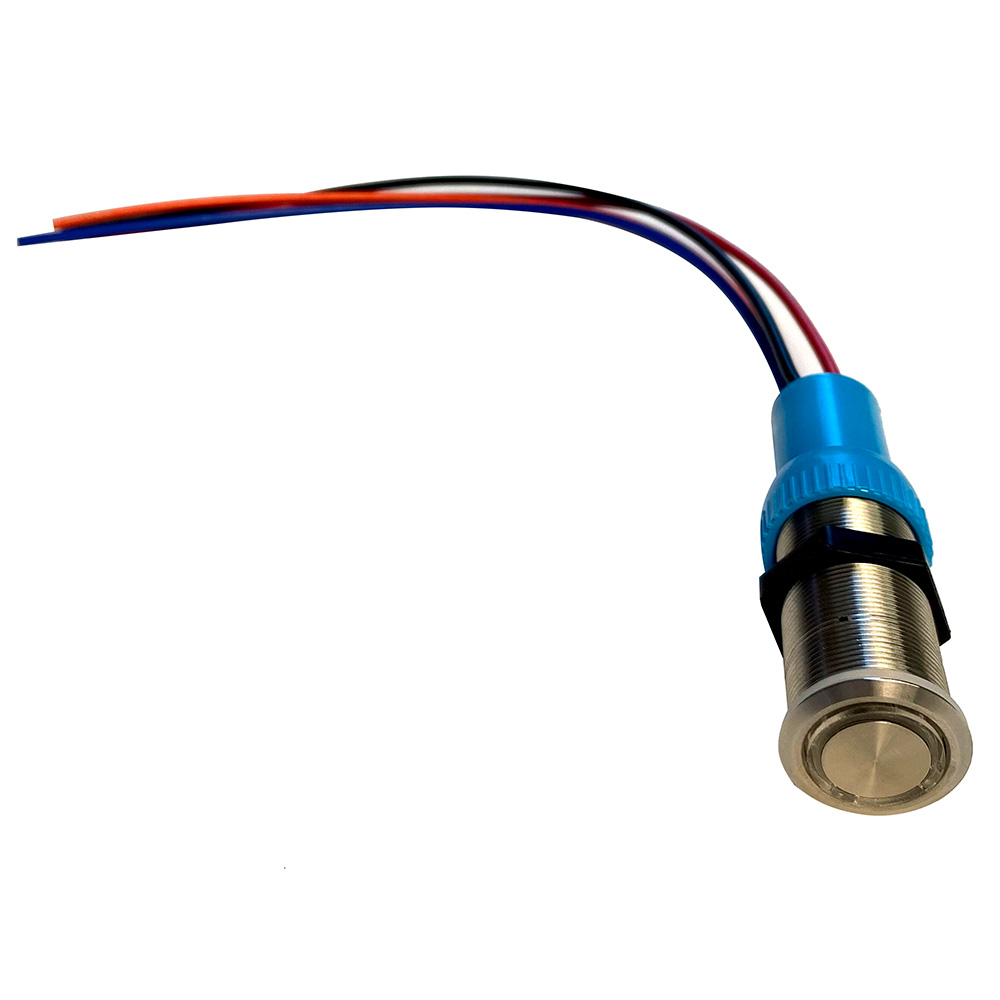

• Pre-wired with 12-inch color-coded leads for simplified installation
• 50,000 cycle mechanical life and 10,000 cycle electrical life
• 19mm diameter fits standard panel cutouts

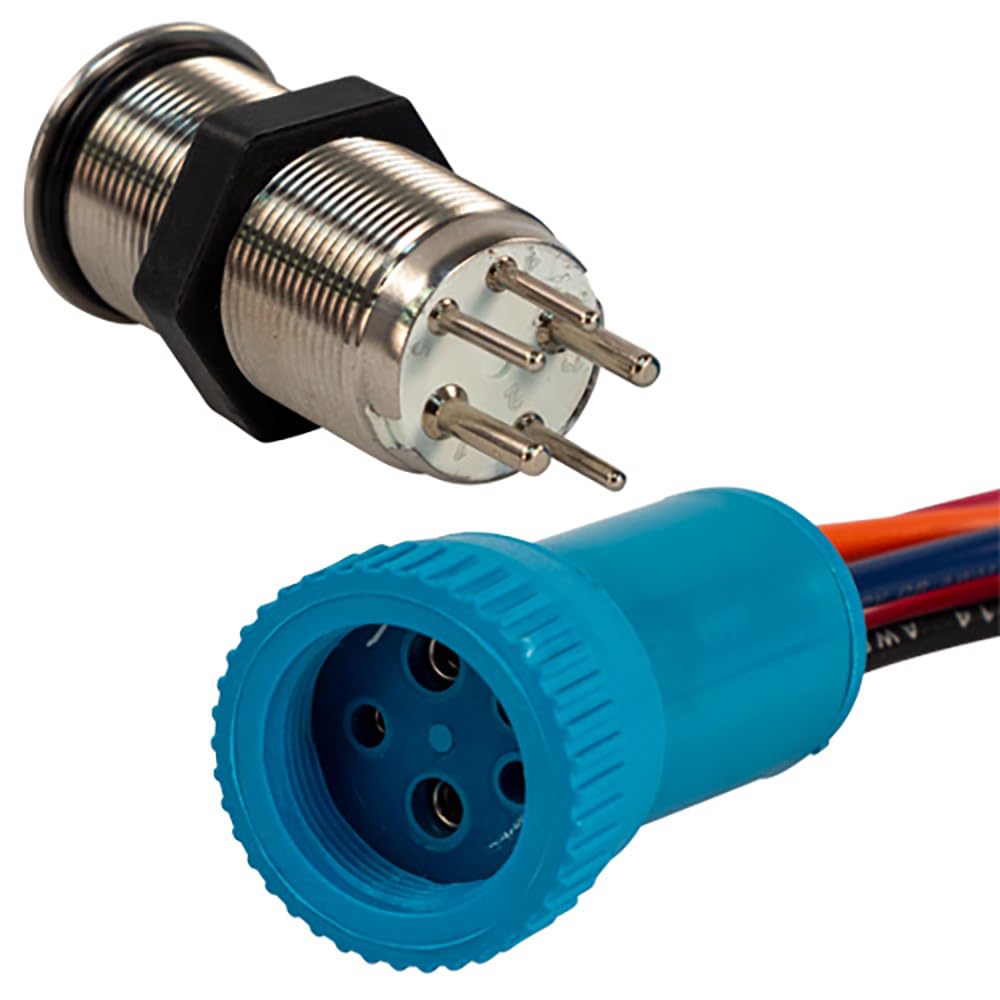

Installation: Drill a 19mm (3/4") hole in any panel up to 6mm thick. Connect the three color-coded contacts for switch function and two contacts for LED power. The rear identification blue dot ensures proper orientation during installation.

This illuminated push button switch is ideal for controlling bilge pumps, navigation lights, accessory circuits, and other dual-state electrical systems where clear visual feedback is essential.
