Bluewater 9059-3113-1 22mm Push Button Switch Off/On/On Blue/Green/Red LED

The Bluewater 22mm push button switch delivers professional-grade switching with multi-color LED illumination for marine, automotive, and powersports applications. This premium switch features a stainless steel plated metal button with an Off-On-On momentary contact configuration, making it ideal for controlling dual-function accessories or switching between operating modes.

Key Features:

• Off-On-On standard contact configuration with three operating positions
• Tri-color LED illumination: Blue/Green for Off/1st On position, Red for 2nd On position
• IP69K waterproof rating for complete protection against water ingress and high-pressure washdown
• Stainless steel construction resists corrosion in harsh marine and outdoor environments
• 22mm mounting diameter fits standard panel cutouts

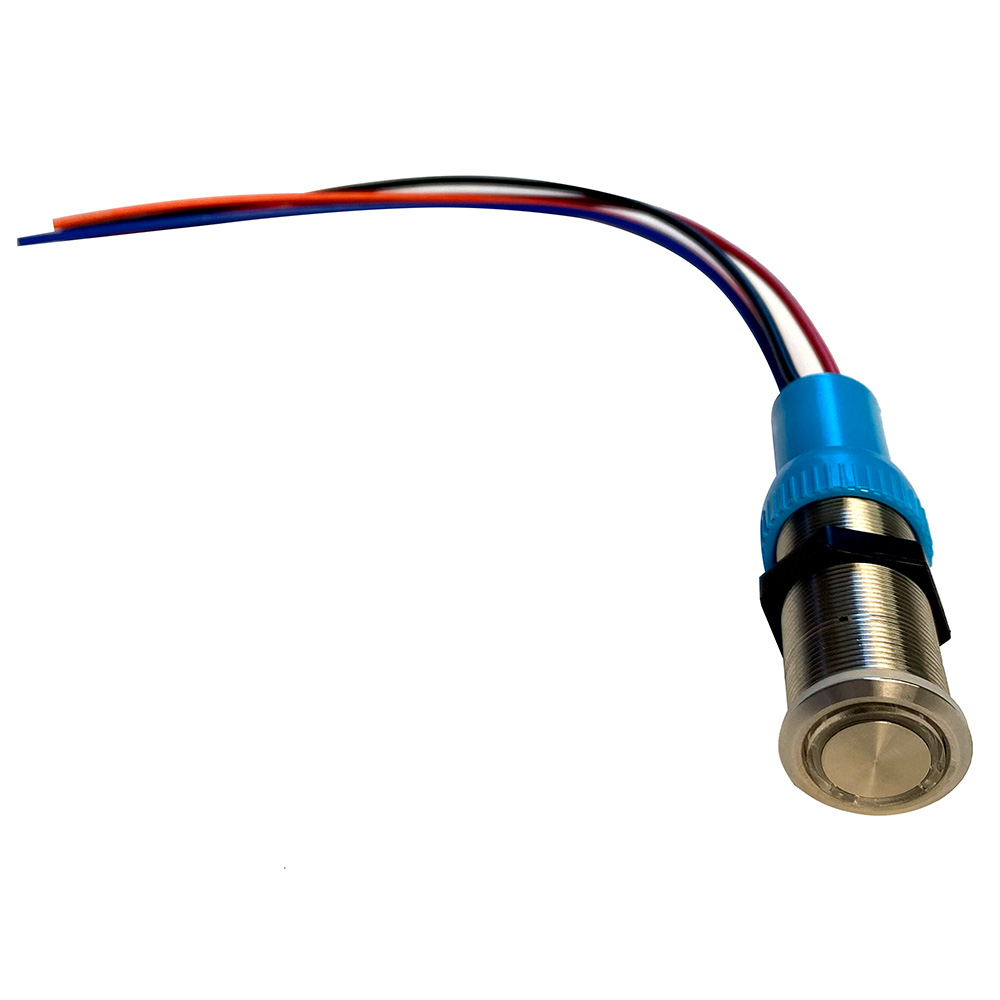

• 12-inch pre-wired lead with color-coded contacts for simplified installation
• 15A switching capacity at 12-24VDC for reliable power handling
• 50,000 mechanical cycles and 10,000 electrical cycles for long service life

Specifications:

• Mounting hole diameter: 22mm
• Maximum panel thickness: 6mm
• Switch rating: 15A at 12-24VDC
• Material: Stainless steel plated metal
• LED colors: Blue/Green (Off/1st On), Red (2nd On)
• Lead length: 1 foot with color-coded wiring
• Waterproof rating: IP69K

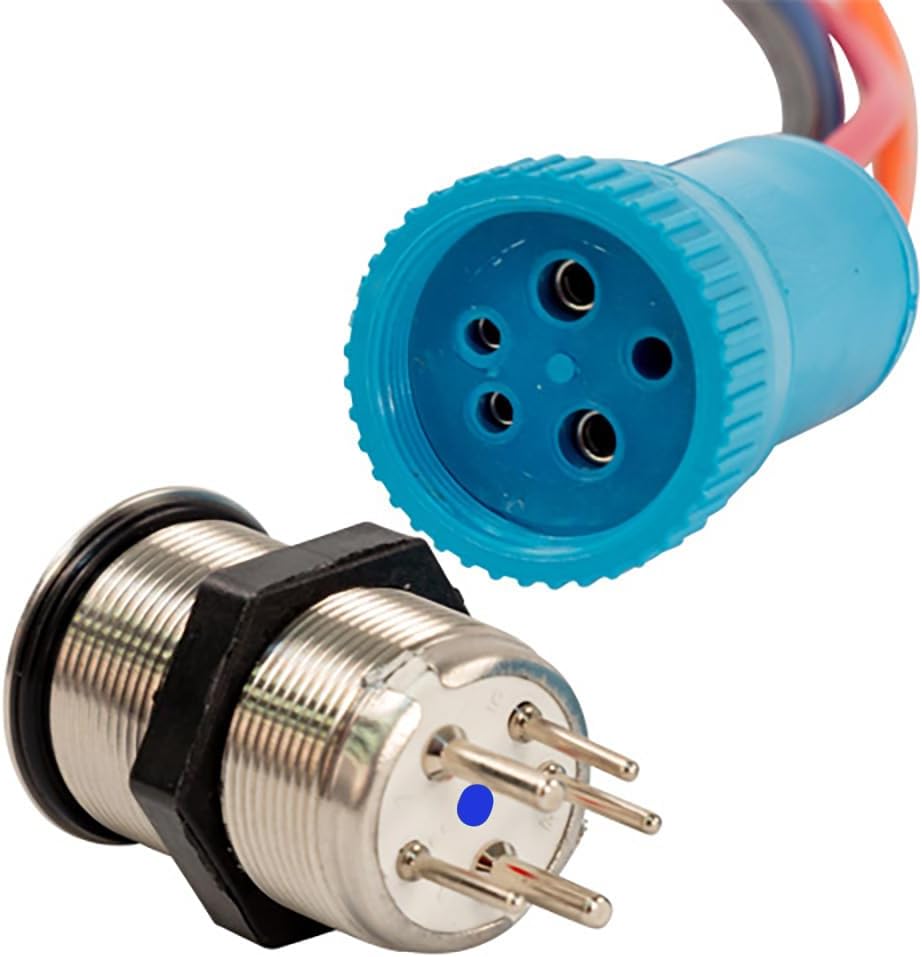

• Rear identification: Blue dot marking

Installation:

Installation requires drilling a 22mm hole in any panel material up to 6mm thick. Connect the three color-coded switch contacts according to your application requirements, then connect the two LED power contacts. The included gasket ensures a watertight seal when properly installed.
