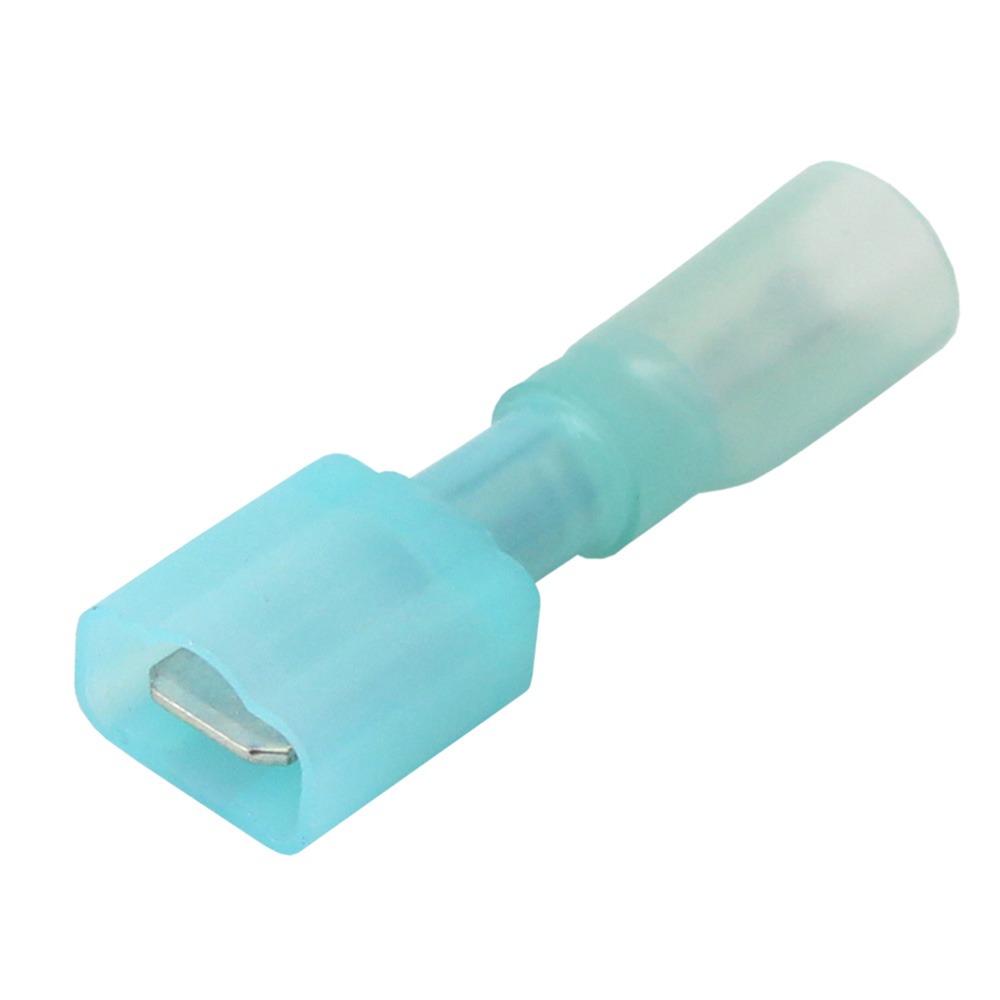

Pacer Performance heat shrink fully-insulated male disconnect terminals provide superior environmental protection for marine, automotive, and powersports electrical connections. These 16-14 AWG terminals feature a built-in heat-activated adhesive liner that creates a rugged, waterproof seal when heated, protecting against water, oil, gas, salt spray, and corrosive compounds. The heat shrink design also provides strain relief and vibration protection in demanding applications.
The male disconnect design allows quick connection and disconnection, making equipment removal and field service maintenance simple and efficient. The blue insulation color indicates compatibility with 16-14 AWG wire. Simply crimp the terminal to the wire, then apply heat to activate the adhesive liner and shrink the insulation for a complete environmental seal.
Key Features:
- Heat-activated adhesive liner creates waterproof, environmentally sealed connection
- Protects against water, condensation, salt spray, oil, gas, and corrosion
- Provides vibration protection and strain relief in rugged environments
- Male disconnect design for easy connection and disconnection
- Blue insulation indicates 16-14 AWG wire compatibility
- 0.250 inch disconnect/bullet size
- 100 terminals per package
Technical Specifications:
- Wire Gauge: 16-14 AWG
- Disconnect Size: 0.250 in.
- Shrink Ratio: Approximately 3:1 at 135°C
- Operating Temperature: -55°C to 125°C (-67°F to 257°F)
- Voltage Rating: 600V
- Dielectric Strength: 900V/mil
- Volume Resistivity: 1015 Ohm-cm3
- UL and CSA Listed, RoHS Compliant
Ideal for marine electrical systems, automotive wiring, RV electrical repairs, and any application requiring reliable, weather-resistant electrical connections that can be easily disconnected for maintenance.
