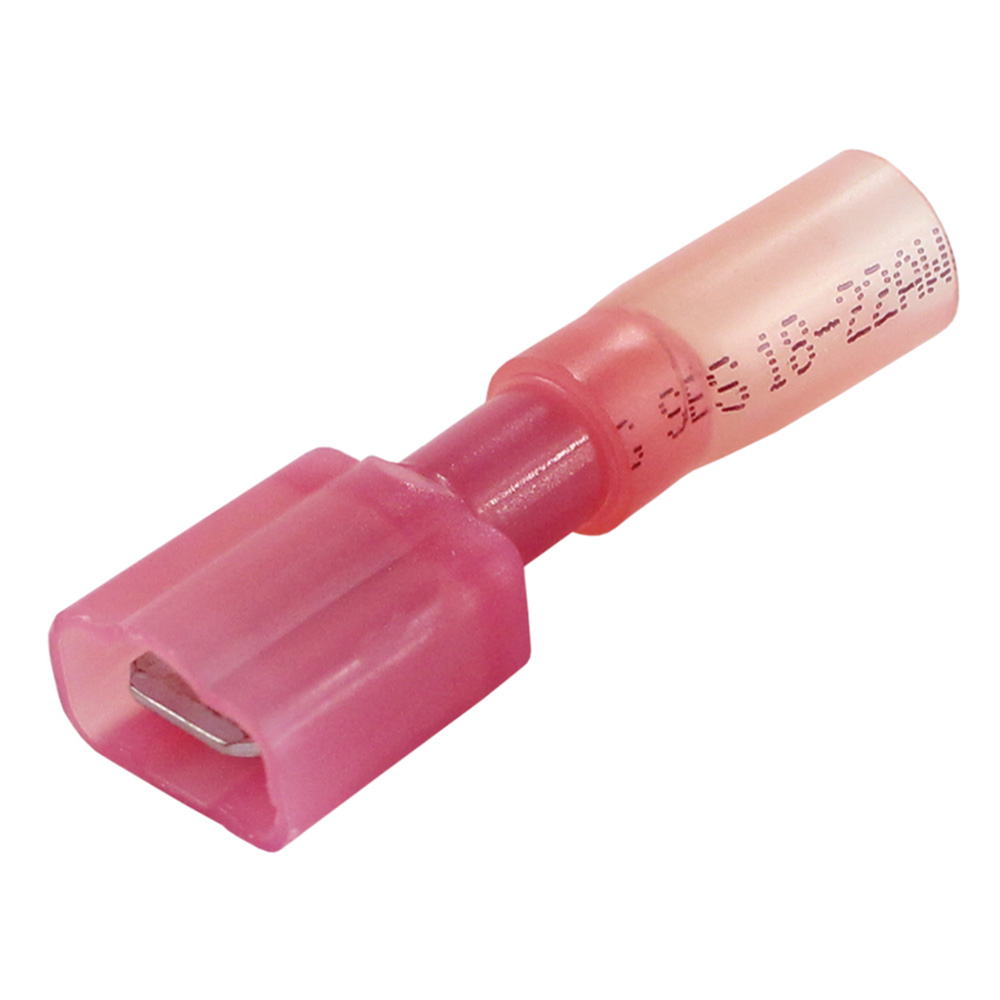

Pacer Performance TDE18-250FIM-100 22-18 AWG Fully-Insulated Male Disconnect Terminal Red 100-Pack

The Pacer Performance TDE18-250FIM-100 heat-shrink fully insulated male disconnect terminal provides a rugged, environmentally sealed connection for automotive, marine, and powersports electrical systems. Designed for 22-18 AWG wire, this red-insulated terminal features a built-in heat-activated adhesive liner that creates a watertight seal when heated, protecting against moisture, salt spray, oil, gas, and corrosive compounds.

Key Features:

• Heat-shrink design with 3:1 shrink ratio and adhesive liner for complete environmental sealing
• 0.250-inch male disconnect tab for quick connect/disconnect applications
• Protects against water intrusion, condensation, and corrosion in harsh environments
• Provides strain relief and vibration protection for rugged applications
• Red color-coding indicates 22-18 AWG wire compatibility
• UL, CSA, and RoHS compliant for safety and environmental standards

Technical Specifications:

• Wire Gauge: 22-18 AWG
• Disconnect Size: 0.250 inch (1/4 inch)
• Operating Temperature Range: -55°C to 125°C (-67°F to 257°F)
• Voltage Rating: 600V
• Dielectric Strength: 900V/mil
• Volume Resistivity: 10¹⁵ Ohm-cm³
• Shrink Temperature: Approximately 135°C (275°F)
• Package Quantity: 100 terminals

Ideal for marine wiring, automotive electrical repairs, trailer connections, and powersports applications where reliable disconnect capability and superior environmental protection are required. The heat-shrink installation process creates a permanent seal that eliminates the need for additional heat shrink tubing or tape.
