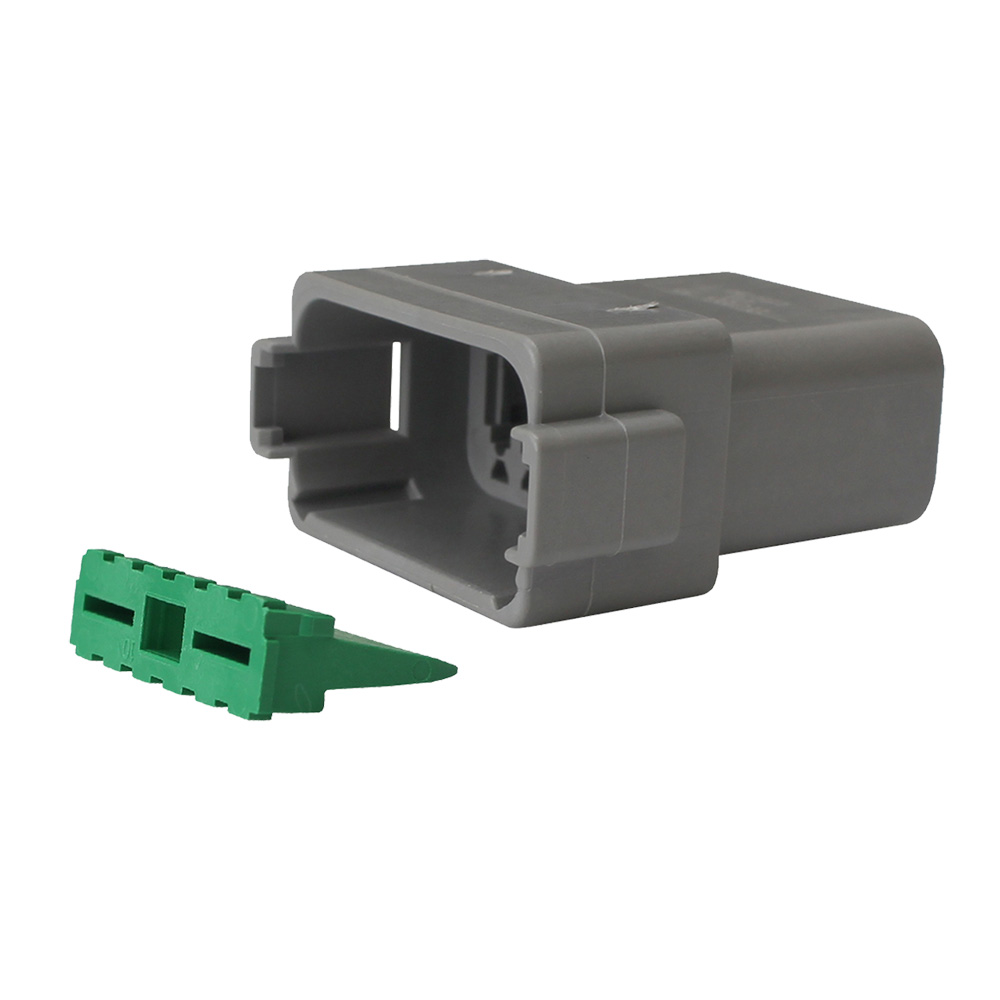

Pacer Performance TDT04-12P-5 Deutsch DT 12-Position Receptacle & Wedge Lock Kit 5-Pack

The Pacer Performance Deutsch DT Receptacle & Wedge Lock Kit is engineered to provide environmentally sealed electrical connections in demanding automotive, marine, and powersports applications. This 12-position receptacle kit delivers waterproof, vibration-resistant connectivity that withstands harsh conditions.

Key Features:

• 12-position receptacle housing with integrated wedge lock system
• 5-piece kit includes 5 housings and 5 wedge locks
• IP67-rated protection against water and dust ingress
• Designed for 20-14 AWG wire with size 16 contacts (13 amp capacity)
• Glass fiber-reinforced plastic housing for superior durability
• Redundant silicone seals ensure reliable environmental protection
• Hand-insertable and removable contacts for easy field installation
• Operating temperature range: -55°C to 125°C (-67°F to 257°F)

Design Benefits:

• Wedge locks ensure proper contact alignment and retention
• Rectangular receptacle design for wire-to-wire applications
• Field-proven reliability in automotive and industrial environments
• Quick connect and disconnect capability for service efficiency

Compliance & Standards:

• IP67 ingress protection rating
• EU RoHS/ELV compliant
• UL-94 Recognized standard

Important Note: This kit includes housings and wedge locks only. Pins and sockets must be purchased separately to complete the connector assembly. Compatible with Deutsch DT series size 16 contacts for 20-14 AWG wire applications.
