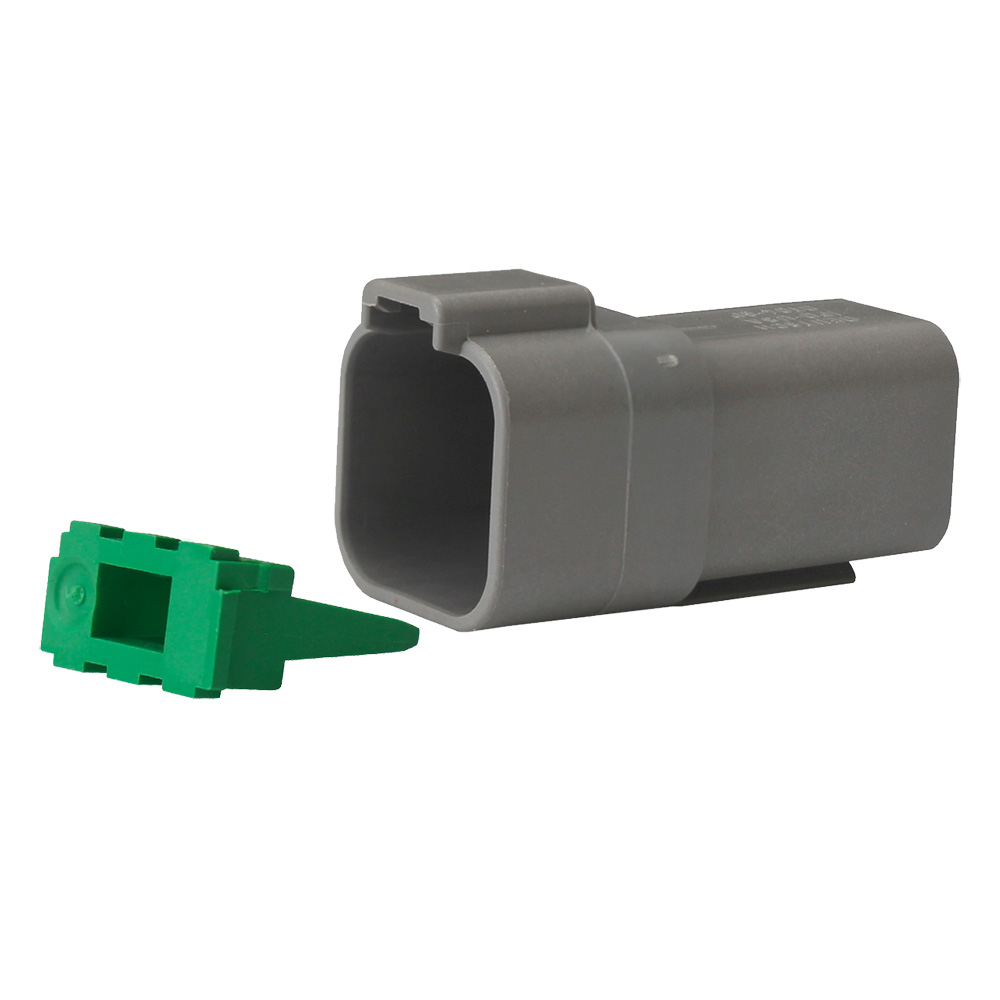

Pacer Performance TDT04-6P-5 Deutsch DT Receptacle Wedge Lock Kit Multi Purpose Connector - 6-Position 5-Pack

The Pacer Performance Deutsch DT Receptacle & Wedge Lock Kit provides reliable, environmentally sealed electrical connections for demanding automotive and powersports applications. This 6-position receptacle kit includes 5 housings and 5 wedge locks, designed specifically for 20-14 AWG wire applications using size 16 contacts.

Key Features:

• Waterproof construction with IP67 ingress protection rating
• Vibration and shock resistant design for durability
• Wedge locks ensure proper contact alignment and retention
• Hand-insertable and removable contacts for easy field installation
• Redundant silicone seals for enhanced environmental protection
• Glass fiber reinforced plastic housing for strength and longevity

Technical Specifications:

• Number of Cavities: 6-position
• Cavity Style: Receptacle (accepts pins)
• Contact Size: 16 (13 Amp capacity)
• Wire Size: 20-14 AWG
• Operating Temperature: -55°C to 125°C (-67°F to 257°F)
• Package Contents: 5 housings and 5 wedge locks

Compliance & Standards:

• IP67 rated for dust and water resistance
• EU RoHS/ELV compliant
• UL-94 Recognized

Ideal for wire-to-wire applications in automotive, marine, RV, and powersports environments where reliable electrical connections are critical. The DT series connectors are easy to connect and disconnect, making them perfect for field repairs and installations. Note: Pins and sockets are sold separately and must be purchased to complete the connector assembly.
