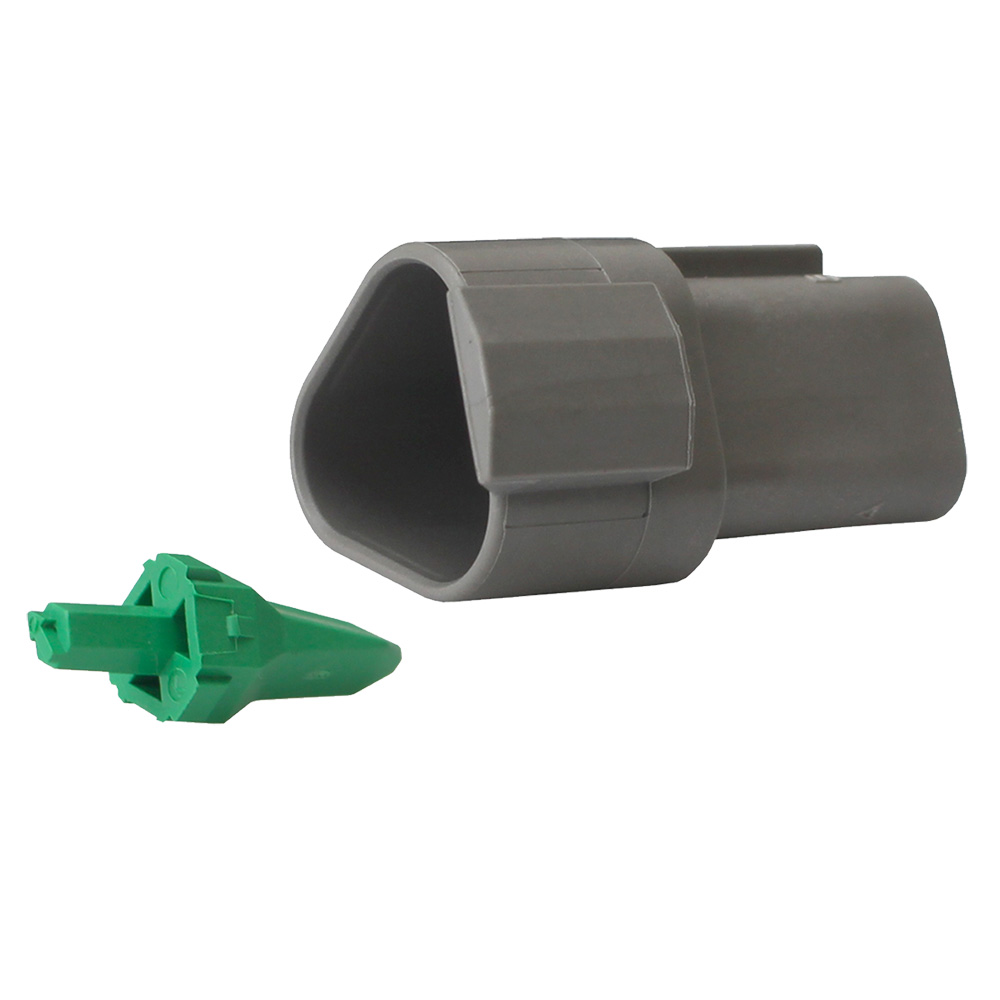

Pacer Performance TDT04-3P-10 Deutsch DT Receptacle Wedge Lock Kit Multi Purpose Connector - 3-Position 10-Pack

The Pacer Performance Deutsch DT Receptacle & Wedge Lock Kit provides everything needed for professional-grade electrical connections in demanding environments. This 3-position receptacle kit includes 10 rectangular receptacle housings and 10 wedge locks, designed to create environmentally sealed, waterproof connections that resist vibration and shock.

Key Features:

• IP67-rated environmental protection for complete water and dust resistance
• Glass fiber-reinforced plastic housing for maximum durability
• Wedge locks ensure proper contact alignment and secure retention
• Redundant silicone seals provide reliable moisture protection
• Hand-insertable and removable contacts for easy field installation
• Accepts size 16 contacts for 20-14 AWG wire applications (13 amp rating)
• Wide operating temperature range: -55°C to 125°C (-67°F to 257°F)

Technical Specifications:

• Connector Type: DT Series Receptacle (Pin)
• Number of Cavities: 3 position
• Contact Size: 16 (13 amp capacity)
• Wire Gauge Compatibility: 20-14 AWG
• Package Quantity: 10 housings and 10 wedge locks
• Compliances: UL-94 Recognized, EU RoHS/ELV compliant

Ideal for wire-to-wire applications in automotive, marine, powersports, and industrial environments where reliable electrical connections are critical. The DT Series connector system offers field-proven reliability and rugged quality in a compact, easy-to-use design. Note: Pins and sockets are sold separately and must be ordered to complete the connection system.
