Pacer Performance BHW1-12RD-2 PACER BATTERY CABLE HEAVY WALL HEAT

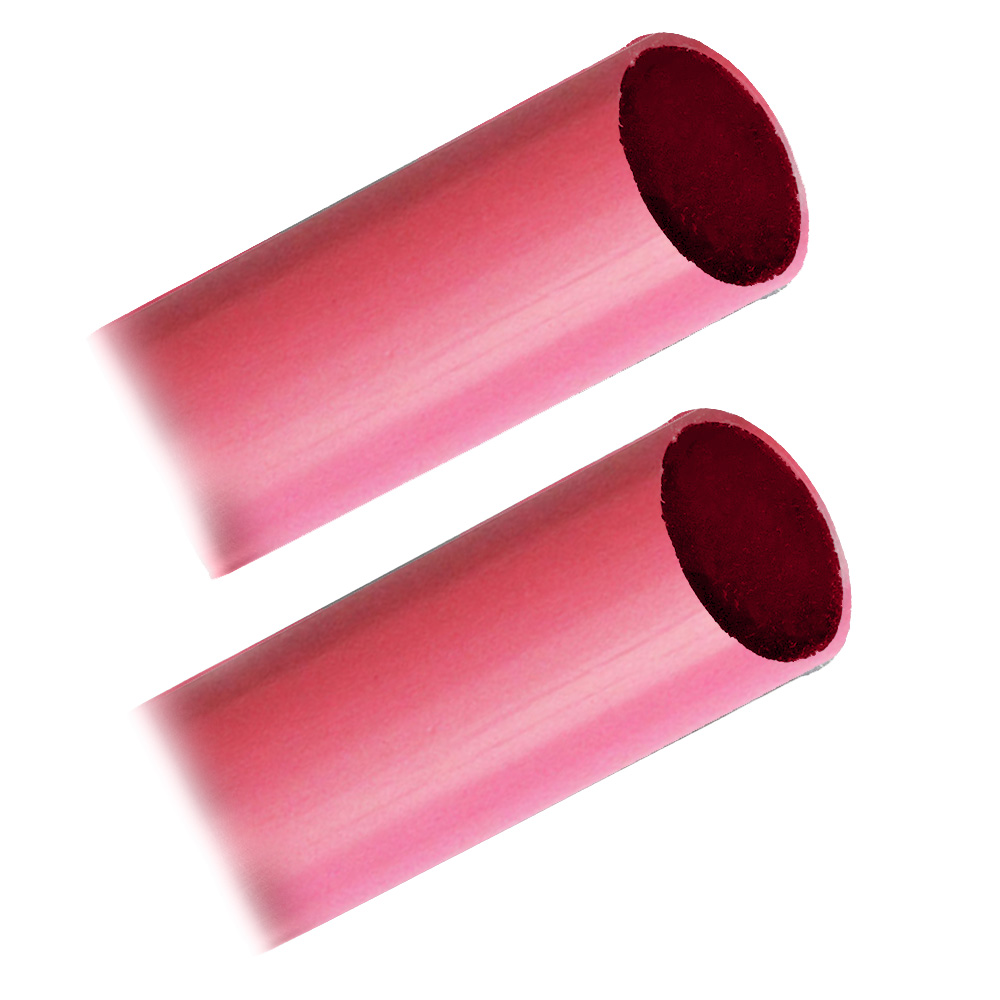

Battery Cable Heavy Wall Heat Shrink Tubing - 1" x 12" - Red (2-Pieces)

BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated.  When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic.  Insulation varies with different types of wires, different diameters or tubing may be required.  When choosing a size, consider any components or connectors that may need to be covered.

Features:

• Highly abrasion and impact-resistant
• Easy installation, shrinks when heated over 120 °C
• The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
• A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
• Any connection in harsh conditions
• Adhesive lining provides a barrier against contaminants
• Excellent resistance to acids and alkalis
• Good resistance to fuel, oil, and solvents

Applications:

• Splice sealing
• Primary insulation
• Cable/jacket repair
• Direct burial/submersible
• Strain relief

Specifications:

• Expanded Inner Diameter: 1.1"
• Recovered Inner Diameter: 0.367"
• Application Range AWG: 1/0 - 4/0 (.40 - .95)
• Recovered Wall Thickness: 0.12"

Compliances:

• MIL-I-23053/15 Class 2
