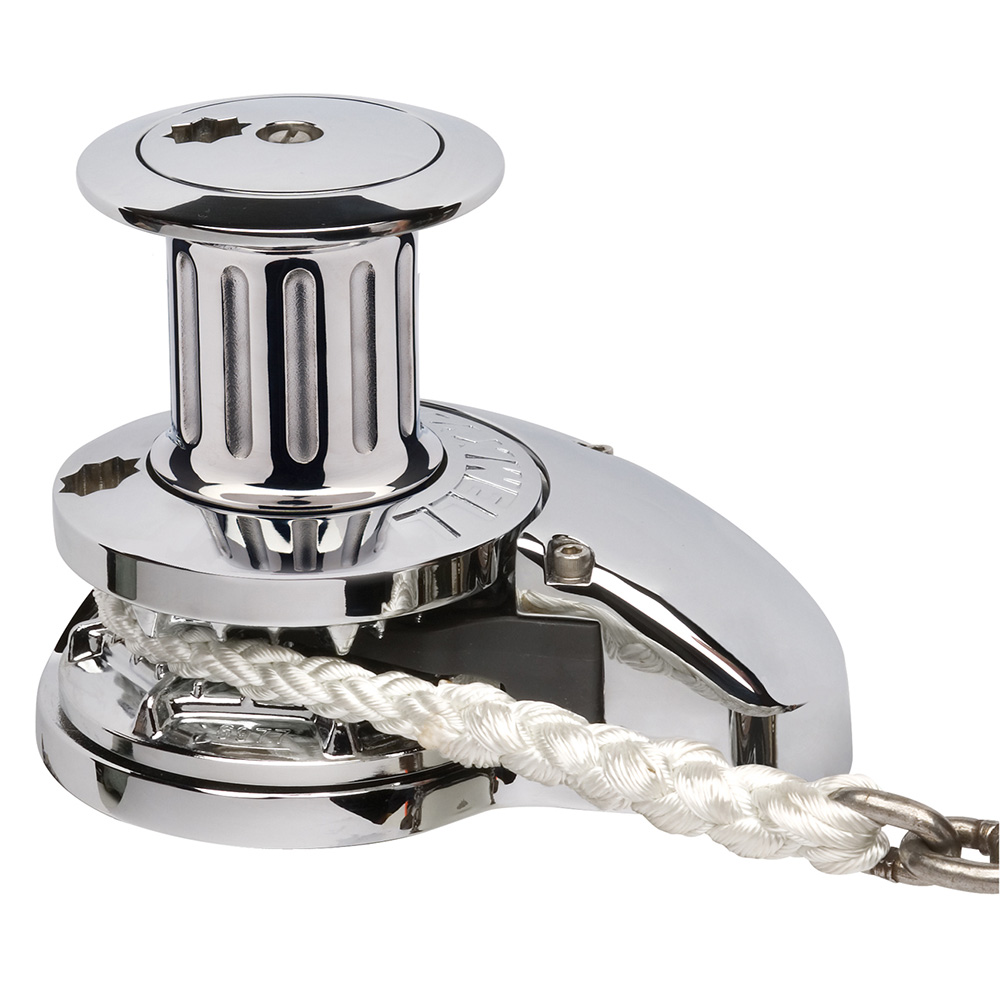

Maxwell RC108CAP12V RC10-8 Capstan 12V Windlass 5/16" Chain 5/8" Rope

The Maxwell RC10-8 is a premium stainless steel (AISI 316) rope/chain windlass designed for cruising yachts, launches, pilothouse vessels, and light commercial operators. Suitable for boats ranging from 30 to 48 feet, this second-generation windlass combines intentionally simple design with exceptional longevity and reliability.

The patented Wave Design™ rope/chain gypsy accommodates a wide range of chain pitch differences in both imperial and metric measurements within the specified chain size diameters, making it versatile for various anchor rode configurations.

Key Features:

• Tool-free gearbox removal for easy maintenance and inspection
• Full disassembly capability using only the provided handle and an Allen key
• Manual override and 'Free Fall' operation with emergency crank/clutch handle
• Sealed oil bath with marine-grade hard anodized alloy gearbox for maximum output
• Precision worm and worm wheel drive system
• Unique spacer tube design accommodates virtually any deck thickness
• Multiple mounting positions with self-aligning gearbox for optimal installation flexibility
• Works effectively with all-chain rode configurations

Technical Specifications:

• Maximum Pull: 1,540 lbs (700 kg)
• Static Hold: 3,300 lbs (1,500 kg)
• Chain Size: 5/16" (8 mm)
• Rope Size: 9/16" - 5/8" nylon (14-16 mm)
• Chain Retrieval Speed: 79 ft/min (24 m/min)
• Rope Retrieval Speed: 65 ft/min (20 m/min)
• Power Supply: 12 VDC
• Motor: 1000W
• Weight: 42 lbs (19 kg)

Complete package includes top works, motor/gearbox, and dual-direction solenoid. The RC10-8 delivers the proven Maxwell reliability that has made it a favorite among serious cruisers and commercial operators worldwide.
