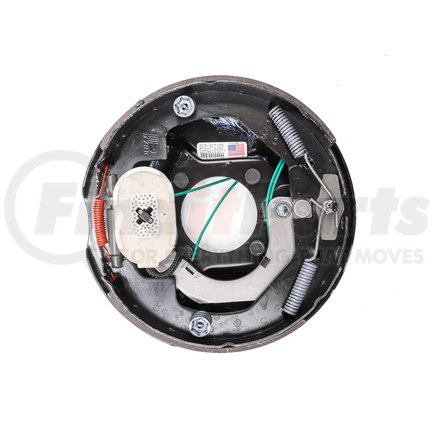

Dexter K23-027-00 10x2.25 Electric Trailer Brake Assembly Right Hand 3500 lbs

The Dexter K23-027-00 is a complete 10" x 2-1/4" right-hand electric trailer brake assembly designed for 3,500 lbs. maximum capacity per pair. This genuine Dexter brake assembly comes fully assembled and ready to install, featuring shoes, springs, and magnets attached to the backing plate.

Key Features:

• Mounts to 4-hole axle brake flange with bolt holes on 2-7/8" center
• Manual shoe adjustment design
• Mounting studs included, nuts sold separately
• Individual brake capacity: 1,750 lbs.
• Fits wheel sizes: 13" - 15"
• Green wire magnet included
• Right-hand side (passenger side) mounting position

Compatible with Dexter, AL-KO, Besser Pro, Quality, Lippert, and Rockwell axles. Commonly used on utility trailers, boat trailers, snowmobile trailers, car hauler trailers, camper trailers, cattle trailers, and horse trailers. This brake requires a brake controller for operation and is designed for standard trailer applications.

Note: Not suitable for marine applications. OEM part numbers include 023-027-00 and 023-217-00.
