Shower/Graywater Sump Systems

What Are Shower & Graywater Sump Systems?

On a boat or RV, water doesn't always flow downhill the way you'd like it to. Shower pans, galley sinks, and other fixtures often sit at or below the waterline — or simply can't drain by gravity into a holding tank positioned elsewhere in the vessel. That's where shower and graywater sump systems come in. These compact, purpose-built setups collect wastewater from onboard drains and actively pump it to a gray water tank or overboard, keeping interior spaces dry, odor-free, and free from standing water.

How Graywater Sump Systems Work

A typical shower sump system consists of a sealed collection box, a submersible pump, a float switch or automatic sensor, and a mesh strainer. The shower pan or sink drains into the sump box by gravity. Once water rises to a set level, the float switch triggers the pump, which pushes the water through a discharge hose to its destination — a gray tank, a through-hull fitting, or a holding system. A built-in check valve on the outlet prevents backflow into the box when the pump is off.

Marine shower sump pumps are purpose-built for gray water and are engineered to handle higher, intermittent flow rates. They typically include strainers to capture hair and debris before it enters the pump, preventing clogs and extending service life. This makes them quite different from standard bilge pumps, which are designed for handling larger volumes of raw water intrusion rather than the soap-laden, debris-carrying water of a shower drain.

Why Proper Graywater Management Matters

Neglecting your onboard graywater system can lead to standing water in shower pans, persistent odors migrating into living spaces, mold growth, and corrosion of nearby components. In RV applications, shower drains that can't flow by gravity to a holding tank — such as in low-profile van conversions or trailer builds — require an active sump system to move water upward or horizontally to the tank. Proper graywater management also keeps you in compliance with environmental regulations, since improper discharge of gray water is restricted in many areas.

Key Considerations When Shopping

• Flow rate (GPH): Match the pump's gallon-per-hour rating to the expected output of your shower or drain sources. Systems commonly range from 500 GPH to 1,000 GPH or more.
• Voltage: Most marine and RV systems run on 12V DC, though 24V options are available for larger vessels.
• Automatic vs. manual operation: Float-switch-equipped automatic systems activate and shut off on their own, while manual systems use a wall switch for controlled operation.
• Multiple inlet ports: If you're consolidating multiple drains — shower, sink, A/C condensate lines — look for a multi-port sump box that can accept different hose sizes.
• Materials: Favor corrosion-resistant ABS plastic housings and stainless steel hardware for long-term marine durability.
• Ease of cleaning: Removable mesh filters and snap-off lids with gasket seals make routine maintenance far more manageable.

Top Brands in Shower & Graywater Sump Systems

Johnson Pumps is a go-to name in marine gray water management, with a long history in the recreational boating industry. Their multiple-port shower sump systems feature their proprietary Ultima Switch for fully automatic on/off operation and include a built-in check valve to prevent backflow — making them a reliable, low-maintenance choice for today's modern boats and cruisers.

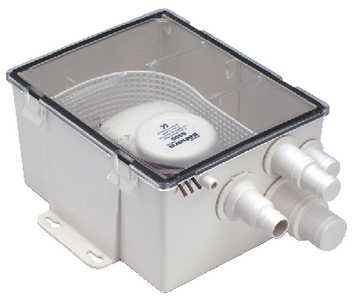

Attwood Marine offers a straightforward and well-regarded lineup of shower sump systems designed to meet or exceed ABYC and USCG standards. Their systems feature gasket-sealed snap-in lids for overflow protection, integrated air vents to prevent air locks, and multiple inlet configurations to accommodate a variety of hose sizes — making installation and service quick and hassle-free.
