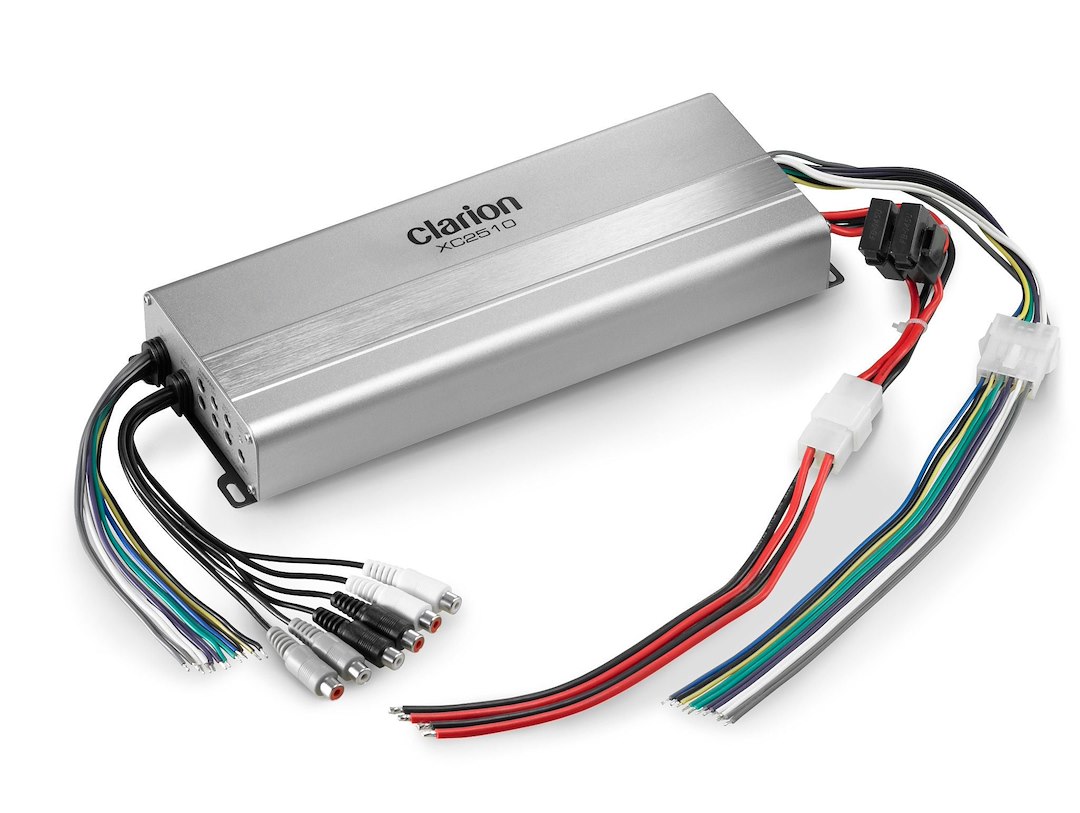

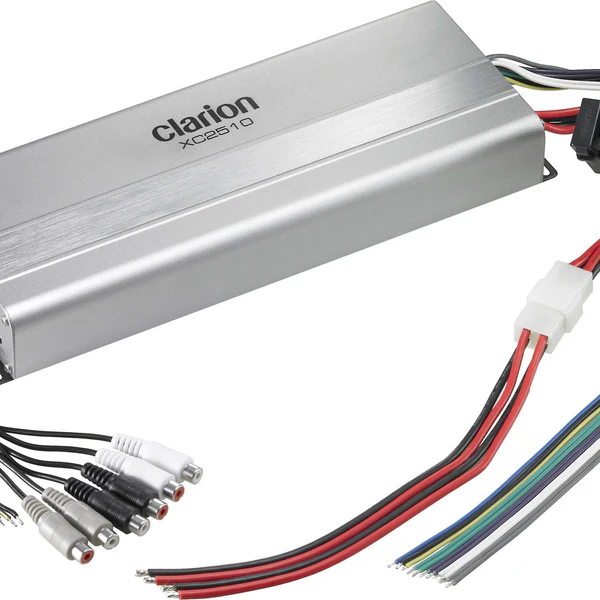

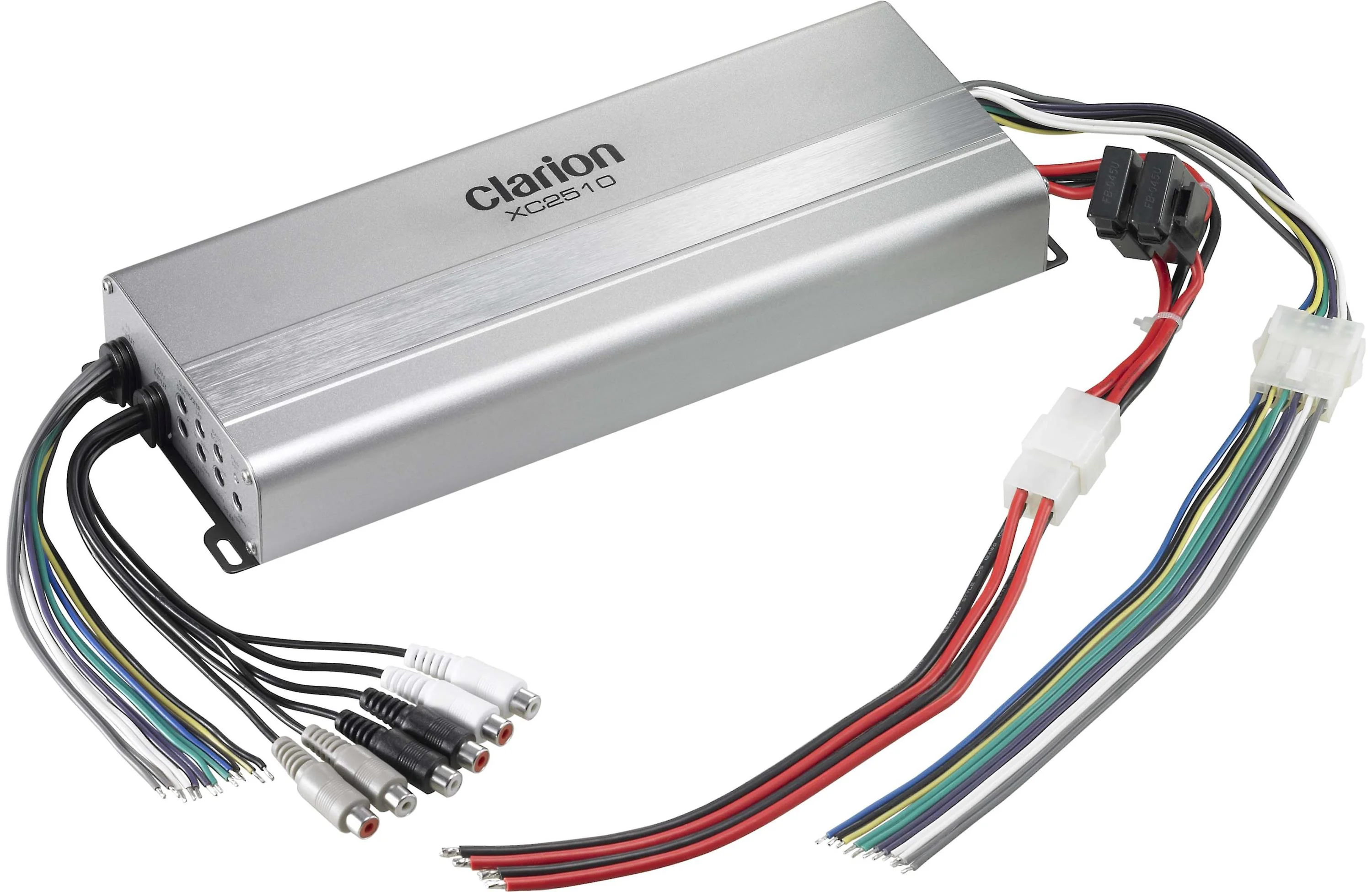

Clarion 010-03221-00 XC2510 5-Channel Class D Marine Amplifier 600W

The Clarion XC2510 is a versatile 5-channel amplifier designed to deliver powerful and high-quality sound for marine and powersports applications. The amplifier features a Class D design, which allows it to provide efficient power output while keeping heat generation to a minimum.

Power Output:

• 50 watts RMS x 4 + 200 watts RMS x 1 at 4 ohms
• 75 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
• 150 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
• 700 Watts Peak Power
• CEA-2006 compliant

Marine-Grade Construction:

• Double-sided conformal-coated circuit board for maximum protection
• Corrosion-resistant nickel-plated connections
• Meets or Exceeds ASTM D4329 (UV Exposure) and ASTM B117 (Salt and Fog Exposure)
• Efficient aluminum heat sinks and locking power terminals

Key Features:

• Variable high-pass filters on front and rear channels (15-250 Hz, 12 dB/octave)
• Variable low-pass filters on sub channel (35-250 Hz, 12 dB/octave)
• Variable bass boost on sub channel (0-12 dB at 50 Hz)
• Built-in ground loop isolation circuitry reduces input noise
• Speaker-level inputs, making it compatible with both aftermarket and factory head units
• RCA line-level inputs included
• MOS-FET amplification delivers power with less distortion and zero On/Off switching noise

With its compact and efficient design, the XC2510 can be easily installed in various locations, making it ideal for boats, PWCs, UTVs, and other marine and powersports applications. 8-gauge power and ground leads recommended. Fuse rating: 40A x 2.
