Wichard 1422W Captive Pin Twisted Shackle 5mm 3/16" 316L Stainless Steel

The Wichard 1422W is a captive pin twisted shackle drop-forged from grade 316L stainless steel, purpose-built for marine and sailing applications where a 90-degree twist alignment between connection points is required. Commonly used to attach unarticulated hardware such as blocks on a rail or purchases, this 5mm (3/16") shackle delivers outstanding working and breaking loads in a compact, corrosion-resistant package.

What sets this shackle apart is its captive pin design — the pin remains physically connected to the body at all times, even when fully opened. A self-locking detent system locks the pin securely into precision indentations, eliminating the risk of the pin vibrating loose or being dropped overboard. The result is a shackle that is safe, reliable, and easy to operate with one hand.

Key Features:

• Drop-forged grade 316L stainless steel for superior strength and corrosion resistance
• Captive pin — remains attached to the body at all times, even when opened
• Self-locking pin locks into precision indentations to prevent accidental release from vibration
• 90-degree twisted body — ideal for connecting unarticulated fittings at right angles
• Single-handed operation for improved safety on deck
• Passivated finish for enhanced marine-grade corrosion resistance
• Safe working load (SWL): 1,320 lbs
• 5-year limited warranty
• Note: Not suitable for lifting applications

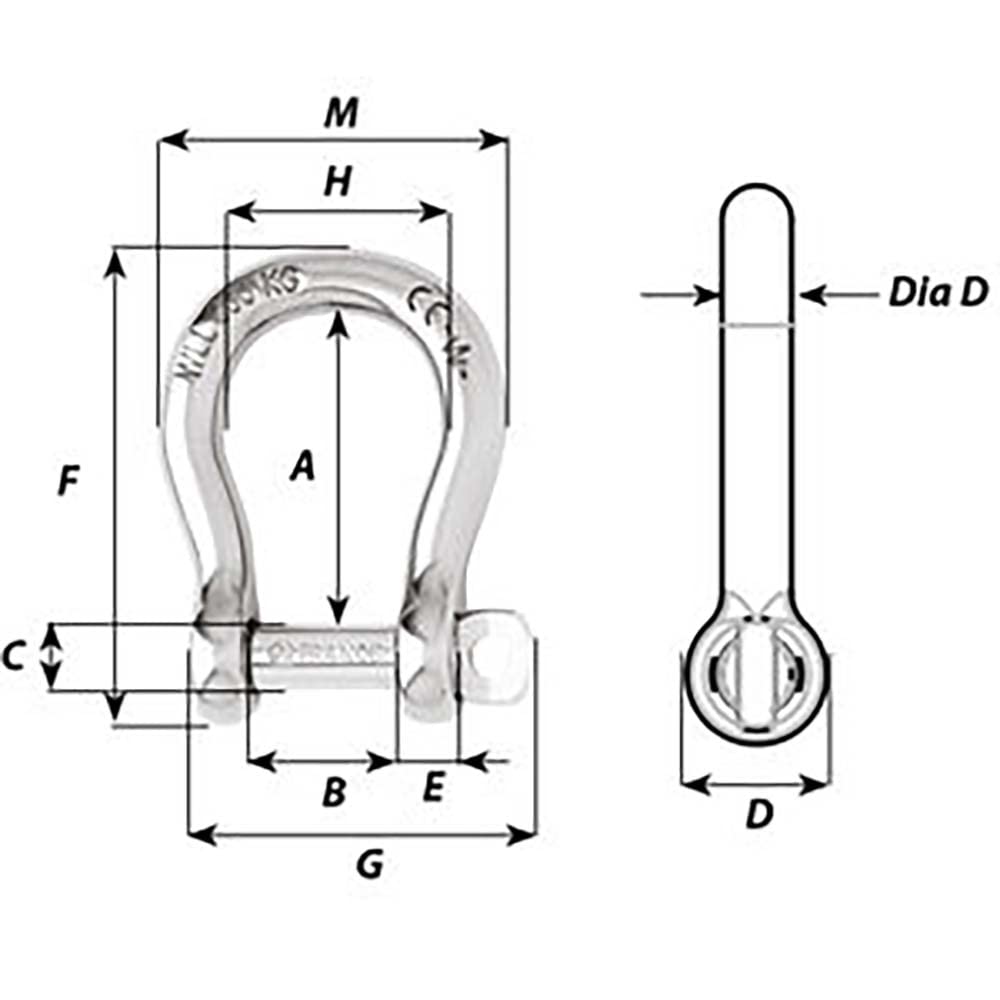

Dimensions:

• Pin Diameter: 3/16" (5mm)
• A (Inner Width): 13/32"
• B (Inner Length): 1-15/32"

Backed by Wichard's century-long tradition of precision marine hardware manufacturing, the 1422W is a trusted choice for sailors, riggers, and marine professionals worldwide.
