Lewmar 2020201717 VX1 Vertical Windlass 12V 500W Gypsy Kit 1/4" Chain

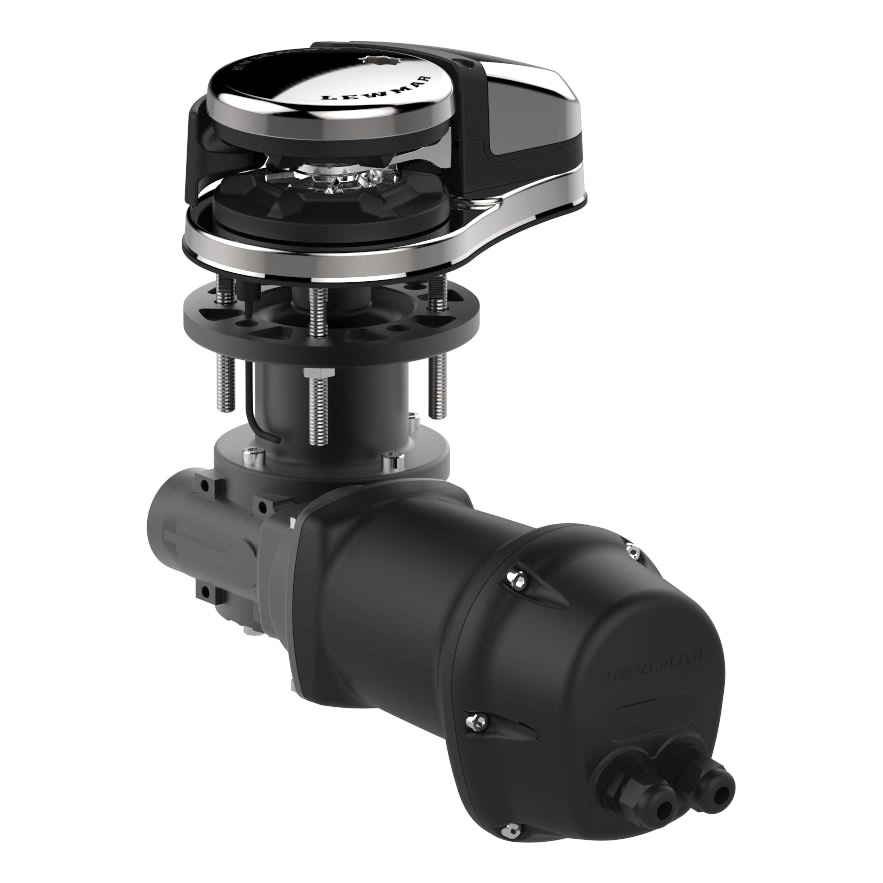

The Lewmar VX1 Vertical Windlass represents the next generation in marine anchoring systems, combining innovative engineering with proven reliability. This 12V/500W windlass kit is designed for boats up to 34-40 feet and features a complete installation package including the deck unit, motor-gearbox, solenoid, rocker switch, circuit breaker, and gypsy for 6/7mm (1/4" G4) chain.

Patent-Pending Hybrid Gypsy Technology:

At the heart of the VX1 is Lewmar's innovative hybrid gypsy design, which combines a metal anchor warp core with a polymer chain wheel. This unique construction delivers a 15% reduction in weight while providing 5% greater strength compared to traditional all-metal gypsies. The polymer chain wheel allows the anchor rode to bed-in naturally, creating a jump-free, quieter operation that sets a new standard for smooth anchoring performance.

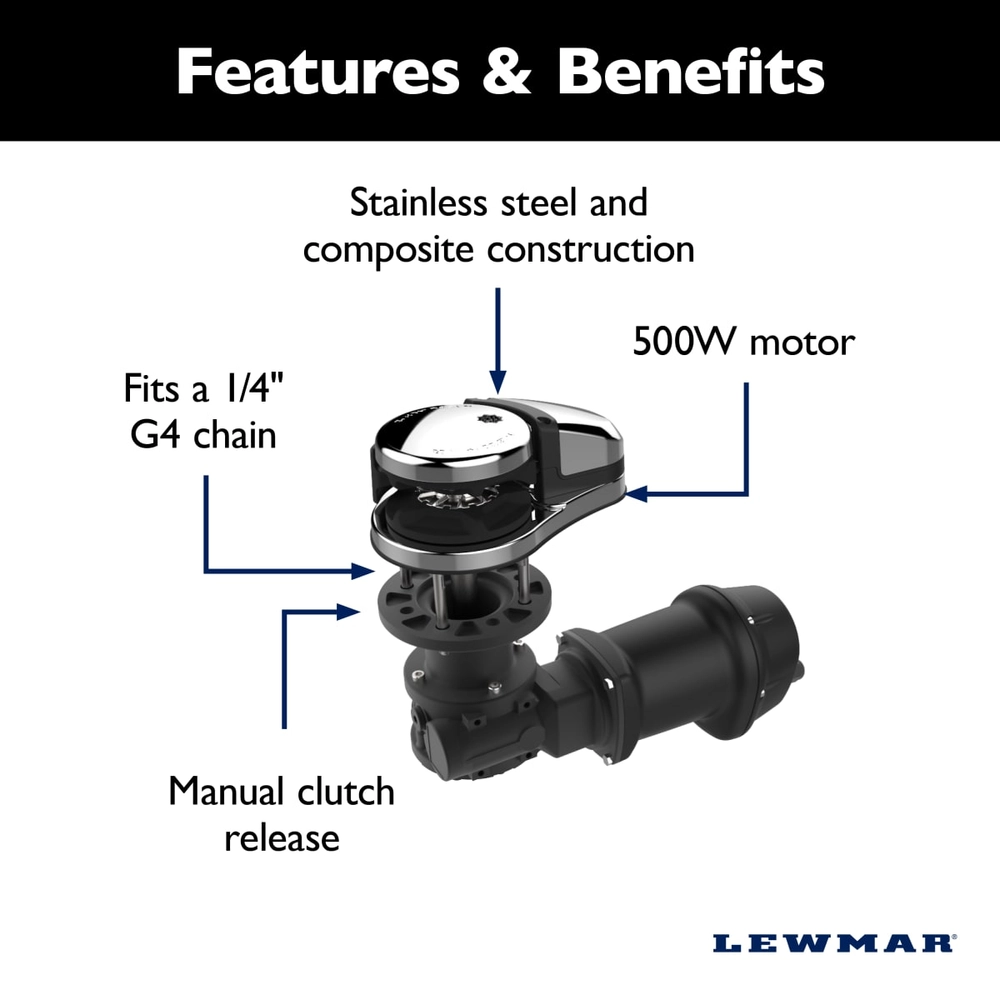

Key Features:

• Maximum pulling power: 1,433-1,488 lbs with 500-watt 12V motor
• Fits 6/7mm calibrated chain and 1/4" G4 chain sizes
• IP67-rated motor-gearbox for superior weather protection
• Robust worm wheel gearbox design for reliability
• Cast aluminum core with composite outer and stainless steel finish
• Same footprint as popular V1 model for easy upgrades
• Line speed: 82 feet per minute
• 70-amp circuit breaker included
• Normal current draw: 126 amps

Complete Retail Kit Includes:

• VX1 windlass deck unit with motor-gearbox assembly
• Gypsy for 1/4" chain
• Solenoid contactor
• Guarded rocker switch
• 70-amp circuit breaker

The VX1's stylish stainless steel and composite construction provides an attractive appearance on any bow while delivering the durability boaters expect from Lewmar. The IP67-rated cover offers protection against water ingress, making this the first small windlass from Lewmar to feature such comprehensive weather protection. Ideal for motor and sailing yachts from 28 to 40 feet, the VX1 delivers professional-grade anchoring performance at an entry-level price point.
