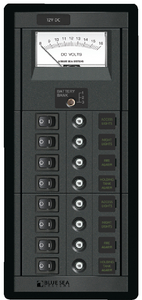

Blue Sea Systems 1463 8-Position Circuit Breaker Panel with Voltmeter Vertical Mount

The Blue Sea Systems 1463 is an 8-position DC circuit breaker panel with integrated vertical voltmeter, designed for efficient electrical distribution and monitoring in marine and RV applications. This comprehensive electrical panel combines circuit protection, power distribution, and voltage monitoring in a single compact unit.

Key Features:

• 8-position vertical circuit breaker panel with integrated DC analog voltmeter (8-16V range)
• Toggle switch allows monitoring of voltage across up to three separate battery banks
• Rated for 12V DC systems with 80 amp capacity per bus (when properly fused)
• Includes pre-installed 10-amp push-button reset circuit breakers and SPST rocker switches
• Comes complete with square format label set for easy circuit identification
• Compact vertical design measures 10.75" H x 4.88" W with 3.5" panel depth

Complete Package Includes:

• Eight 10-amp push-button reset circuit breakers with quick-connect terminals
• Eight ON-OFF SPST rocker switches for individual circuit control
• DC analog voltmeter (8-16V range) for battery monitoring
• 30-label basic DC label kit for circuit identification

This panel provides reliable circuit protection and convenient voltage monitoring for boats, RVs, and other 12V DC electrical systems. The vertical orientation is ideal for space-constrained installations, while the integrated meter eliminates the need for separate monitoring equipment.
