Eliminate chafe damage for wires passing through a bulkhead

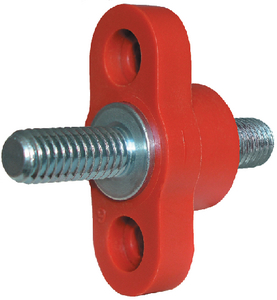

Cables that pass through bulkheads, decks or any hard surface are subject to damage caused by movement and vibration. Chafe guards, grommets and additional protection can be installed, but can wear over time and do not provide a watertight seal. Blue Sea Systems designed these feed-through terminals to eliminate these issues. Available in Red or Black 5/16"-18 and 3/8"-16 stud terminals to meet the needs of the application. A reinforced thermoplastic body isolates the terminal stud from bulkhead material and provides and flange and fastener holes to create a water-tight installation. Ideal for windlasses and electric winches installations.
Key Features
- Eliminated chafe damage to cables passing through bulkheads
- Isolates terminals from bulkhead materials
- Provides bedding surface and fastener holes to create watertight installation
- Provides strain relief for cables and terminals
- Tin-plated copper allow terminal studs for corrosion resistance and high conductivity
- Lifetime warranty
Specifications
- Amperage: 250A
- Maximum Voltage: 48V
- Color: Red or Black
- Stud Size: 5/16"-18, 3/8"-16
- Base Material: Reinforced Thermoplastic
