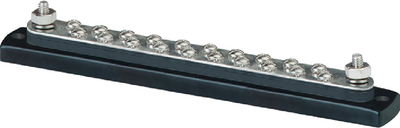

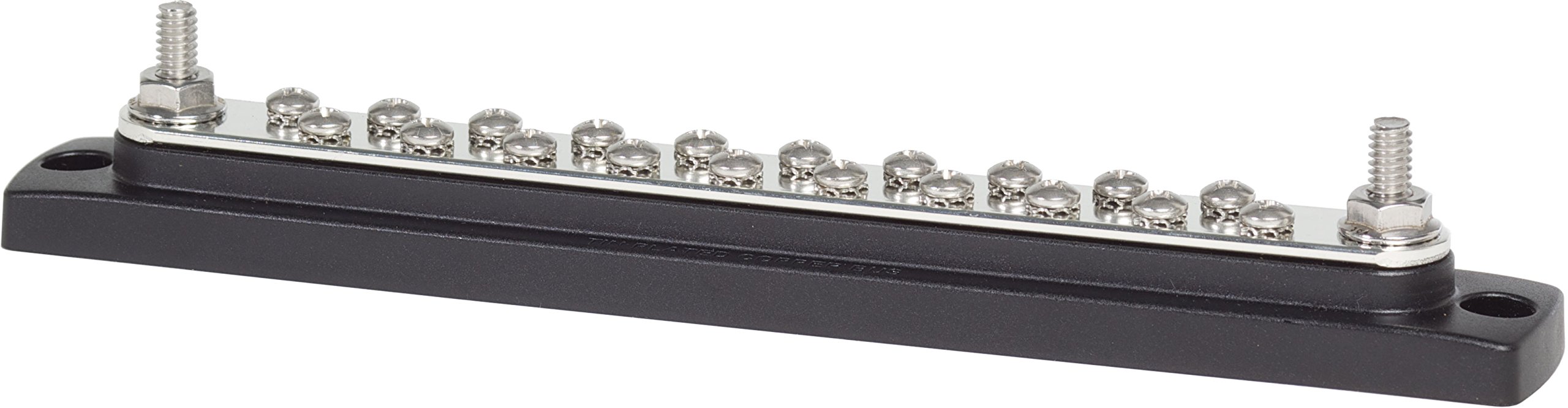

Blue Sea Systems 2302 20 Gang Common Busbar with Dual Studs

The Blue Sea Systems 2302 is a professional-grade 20-gang common busbar designed to organize and distribute AC or DC power in marine, RV, and automotive electrical systems. This industry-standard component transforms cluttered wire installations into clean, organized, and easily serviceable electrical distribution points.

Key Features:

• 20 #8-32 terminal screws for connecting multiple circuits with ring terminals
• Two 1/4"-20 stainless steel studs provide high-torque feed connections with minimal resistance
• Tin-plated copper bus bar (CDA 110/UNS 1000) ensures maximum conductivity and corrosion resistance
• Reinforced heat-resistant polycarbonate base provides electrical insulation and durability
• Ideal for collecting negative or AC ground circuits, or distributing positive power
• Perfect for navigation lights, cabin lighting, and other multi-branch circuits
• Simplifies mast removal connections and electrical troubleshooting
• Backed by Blue Sea Systems lifetime warranty

Technical Specifications:

• Continuous Rating DC: 150A at 48V maximum
• Continuous Rating AC: 130A at 300V maximum
• Terminal Screws: 20 positions, #8-32 thread
• Feed Studs: 2 positions, 1/4"-20 stainless steel
• Bus Material: Tin-plated copper (CDA 110/UNS 1000)
• Base Material: Reinforced polycarbonate
• Dimensions: 9.25" L × 1.25" W × 1.375" H
• Weight: 0.51 lbs

This busbar provides reliable power distribution with ample capacity for expansion, making it an essential component for professional marine and mobile electrical installations.
