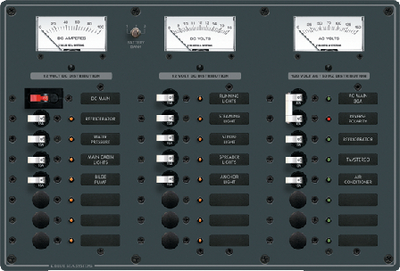

Blue Sea Systems 8084 AC/DC Circuit Breaker Panel - 6 AC + 15 DC Positions

The Blue Sea Systems 8084 is a comprehensive dual-voltage breaker panel that combines AC and DC circuit protection in a single aluminum panel. This pre-wired panel is designed for marine electrical systems requiring robust power distribution and monitoring capabilities, offering AC Main + 6 positions and DC Main + 15 positions configuration.

Pre-Configured Power Distribution:

This panel comes completely pre-wired with all AC and DC bus bars installed, significantly reducing installation time and complexity. The AC side features a pre-installed 30A double pole A-Series main breaker with three 15A branch circuit breakers. The DC side includes a 100A main breaker with nine 15A branch circuit breakers. All breakers utilize magnetic-hydraulic delay trip mechanisms that intelligently recognize start-up current surges without nuisance tripping.

Key Features:

• Traditional aluminum plate construction provides industry-standard durability and compatibility with existing panel systems
• A-Series toggle breakers combine circuit protection and switching functions with trip-free operation
• Green LEDs indicate breaker ON status for easy visibility in low-light conditions
• Red LED reverse polarity indicator at main breaker positions
• Integrated power monitoring with digital multimeter or analog voltmeter and ammeter
• Large format backlit label areas for improved readability
• Expandable circuit protection: compatible with separately-sold A-Series breakers rated from 2.5A to 50A
• Includes 30 commonly used AC labels and 30 commonly used DC labels
• Backed by Blue Sea Systems lifetime warranty

Specifications:

• AC Main Rating: 30A double pole
• DC Main Rating: 100A
• AC Branch Circuits: 3 positions (15A breakers installed)
• DC Branch Circuits: 9 positions (15A breakers installed)
• Total Available Positions: 6 AC / 15 DC
• Breaker Type: Toggle style A-Series
• Panel Dimensions: 10" H × 14-3/4" W × 3" D

This panel is ideal for boats and marine vessels requiring centralized AC/DC power management with room for future electrical system expansion. The combination of reliable circuit protection, integrated monitoring, and professional-grade construction makes it a trusted choice for marine electrical systems.
