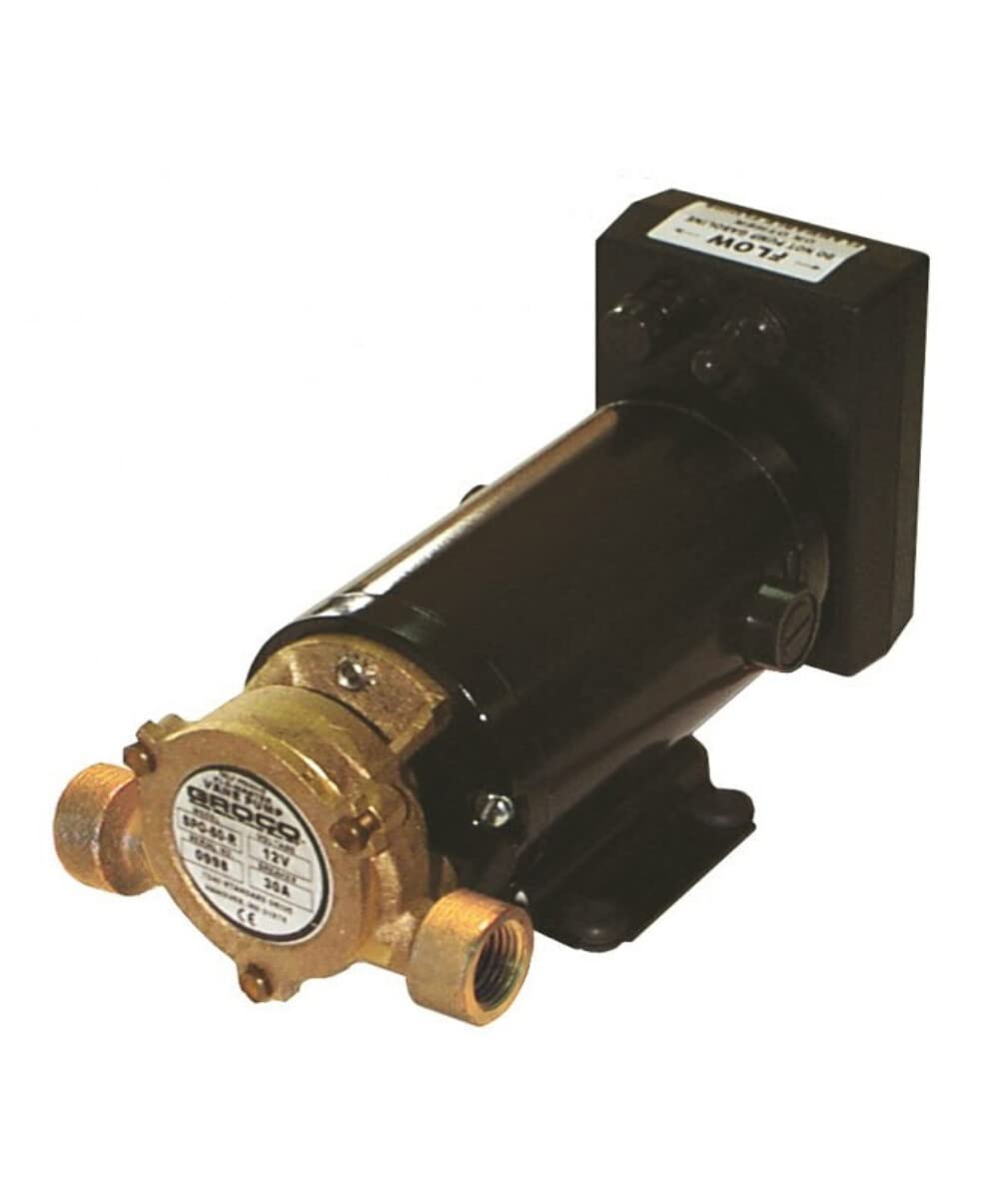

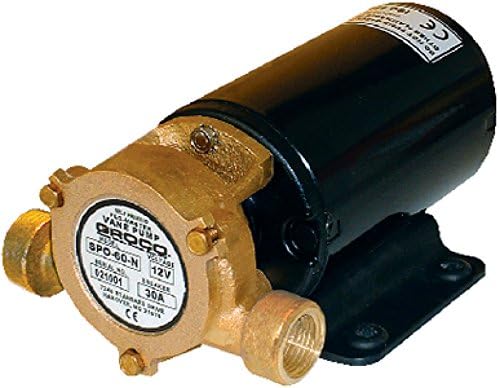

Groco SPO60R12V Heavy Duty Reversing Vane Pump 12V 6.5 GPM

The Groco SPO-60-R 12V is a heavy-duty positive displacement vane pump designed for reliable marine and industrial fluid transfer applications. This self-priming pump is instantly reversible and capable of operation in either direction, making it suitable for general purpose duties such as deck-wash, bilge pumping, fuel transfer, ballast transfer, and oil change.

Key Features:

• Flow rate of 6.5 GPM with 1/2" NPT threaded ports (garden hose adapters included)
• Ignition protected motor with #316 stainless steel shaft for corrosion resistance
• Delrin impeller and blades are not affected by diesel fuel or crankcase oil, self-priming to 24"
• Pump-mounted On-Off-On toggle switch for instant reversing control
• Mounts in any position in dry location (motor not waterproof)
• 12V DC operation with 27A max current draw, requires 30A fuse

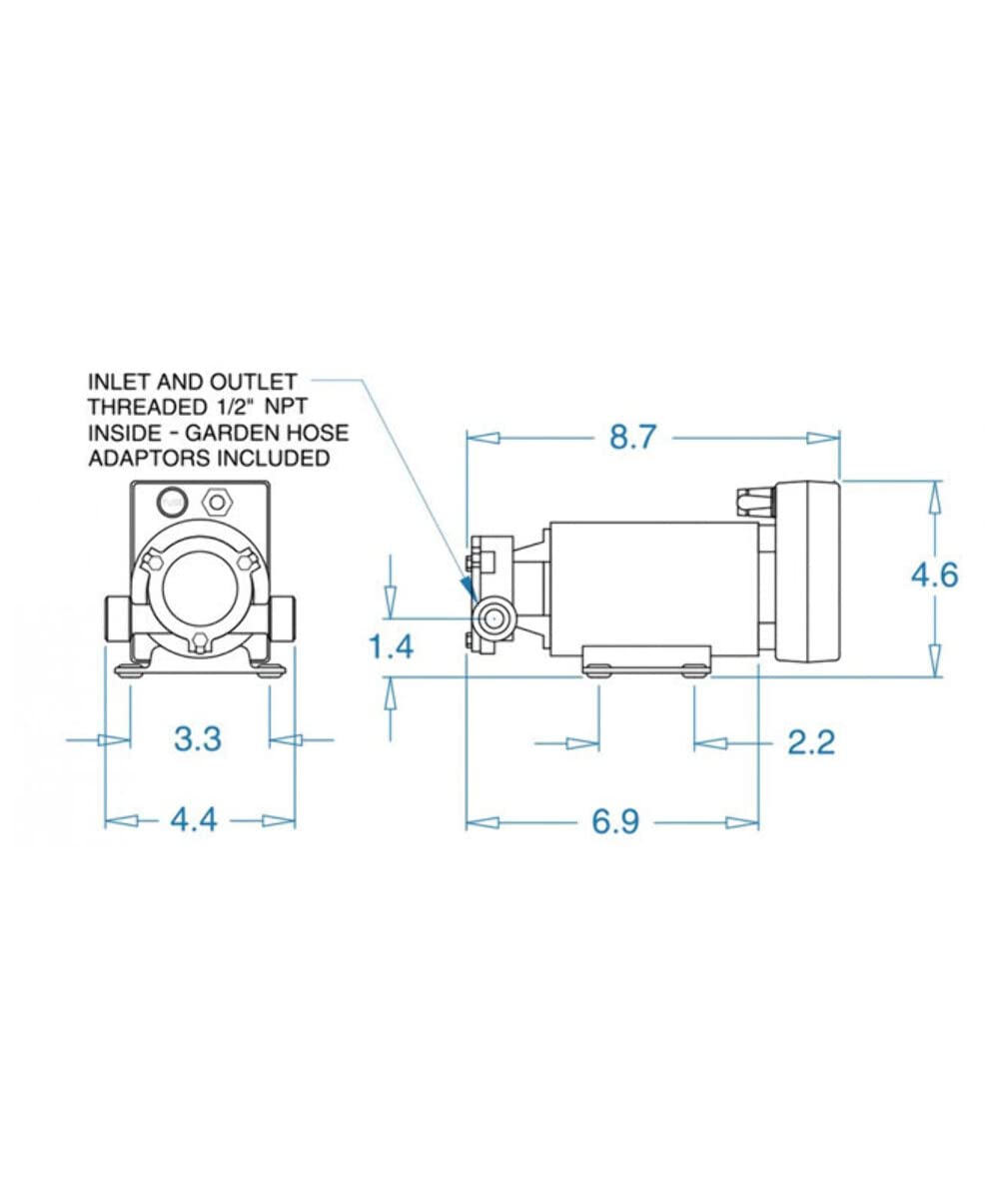

• Compact dimensions: 4.6" H x 4.4" W x 8.7" L

Technical Specifications:

• Use 1/2" minimum or 5/8" for oil minimum reinforced hose
• For pumping water: 7A/15A fuse with #12 wire up to 40'; for oil: 17A/30A fuse with #8 wire up to 40'
• Maximum pressure: 50 PSI
• Bronze construction for long-lasting durability

This versatile vane pump offers higher flow rates compared to gear pumps and requires no regular maintenance. Ideal for diesel transfer, engine oil changes, ballast transfer, and deck wash systems on boats and marine vessels. Note: Do not use for gasoline or other combustible fluids. Not to be used in potable water systems.
