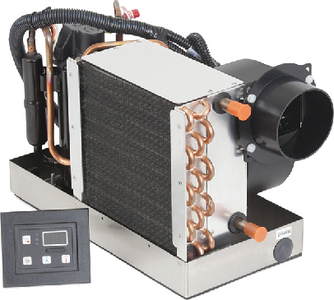

Dometic 9108732755 EnviroComfort ECD16K-HV Marine AC Retrofit Kit 16,000 BTU 115V R410A

The Dometic EnviroComfort ECD16K-HV Marine Air Conditioning Retrofit Kit delivers powerful year-round climate control with 16,000 BTU cooling capacity and reverse-cycle heating capability. This complete retrofit kit is designed to replace older self-contained air conditioners in the 12,000 to 16,000 BTU range, making it an ideal upgrade solution for marine applications.

Key Features:

• 16,000 BTU cooling capacity with reverse-cycle heating for year-round comfort
• High-velocity blower with internal motor provides compact installation footprint
• Rotatable blower adjusts to horizontal or vertical position for maximum installation flexibility
• Easy-to-plumb stainless steel drain pan for reliable condensate management
• Pre-installed return-air filter, easily removable for cleaning and maintenance
• R410A refrigerant with 260 CFM maximum airflow
• 115V operation with 62A starting amps, 40A/25A maximum/minimum fuse rating
• 6-inch minimum supply duct size with 0.625-inch seawater inlet connection
• Includes Dometic Passport I/O digital control with bezel and 15-foot cable

Specifications: Unit dimensions are 13.5 inches high x 20 inches wide x 11.25 inches deep. Requires 5.3 GPM seawater flow rate. Complete retrofit kit includes self-contained AC unit, digital control with bezel and cable, and instruction manual. Perfect for new installations or replacing existing marine air conditioning systems.
