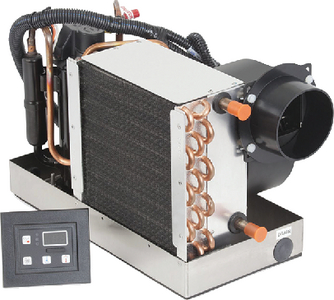

Dometic 9108732762 EnviroComfort ECD6K-HV Marine Air Conditioning Retrofit Kit 6000 BTU 115V

The Dometic EnviroComfort ECD6K-HV is a complete marine air conditioning retrofit kit that provides both reverse-cycle cooling and heating capability for year-round comfort aboard your vessel. This 6,000 BTU self-contained system is designed to replace older air conditioners of comparable capacity in the 5,000 to 7,000 BTU range, making it an ideal upgrade for existing installations or new builds.

Key Features:

• 6,000 BTU cooling capacity with reverse-cycle heating function
• High-velocity blower with internal motor for compact installation footprint
• Rotatable blower can be positioned horizontally or vertically for maximum installation flexibility
• Environmentally friendly R-410A refrigerant
• Dometic Passport I/O digital control and display with 15-foot cable included
• Built on stainless-steel drain pan for durability and easy plumbing
• Pre-installed, removable return-air filter for easy cleaning
• Plastic remote electrical box for convenient mounting
• Compact, space-saving design (Unit: 11.25" H x 16" W x 9" D)

Technical Specifications:

• Input Voltage: 115V AC
• Input Frequency: 50/60 Hz
• Starting Amps: 36A
• Fuse Range: 12A minimum / 20A maximum
• Maximum Air Flow: 175 CFM
• Minimum Supply Duct Size: 4 inches
• Seawater Inlet Connection: 0.625 inches
• Seawater Flow Rate: 3.2 GPM

What's Included: Self-contained air conditioning unit, digital control with bezel, 15-foot connection cable, and instruction manual. This complete retrofit kit provides everything needed to replace your existing marine air conditioner with a modern, efficient system.
