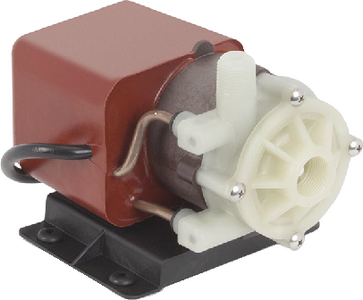

March Pump 9108516645 LC-3CP-MD Submersible Magnetic Drive AC Pump 230V

The March Pump LC-3CP-MD is a professional-grade American-made seal-less centrifugal magnetic drive pump designed for marine air conditioning and industrial applications. This 230V model features hermetically sealed construction that allows for both submersible and open-air operation with complete moisture protection.

Key Performance Specifications:

• Maximum flow rate of 8.5 GPM at 4 feet (510 GPH capacity)
• Maximum head pressure of 19 feet (8 PSI)
• 0.05 HP single-phase motor compatible with both 50Hz and 60Hz
• Maximum internal pressure rating of 25 PSI
• Maximum liquid temperature of 130°F (54°C)

Construction and Materials:

• Wet end materials: Polypropylene housing and impeller, Cupric Nickel cooling tube, Buna N o-rings and seals, Ceramic shaft and thrust washers, Ceramic magnets
• When submerged, additional contact materials include Epoxy, Stainless Steel, Polysulfone, and power cord
• 3/4 inch female pipe thread inlet connection
• 1/2 inch male pipe thread outlet connection
• Leak-proof magnetic drive eliminates shaft seal problems

Applications: This versatile pump handles fresh water, salt water, and mild chemicals. Commonly used in marine air conditioning systems, fountains, chemical recirculation, and scrubber systems. The LC-3CP-MD serves as a direct replacement for Dometic PML500 230V pumps (part numbers 225500016). Simple serviceability with basic tools makes maintenance straightforward for marine and industrial installations.
