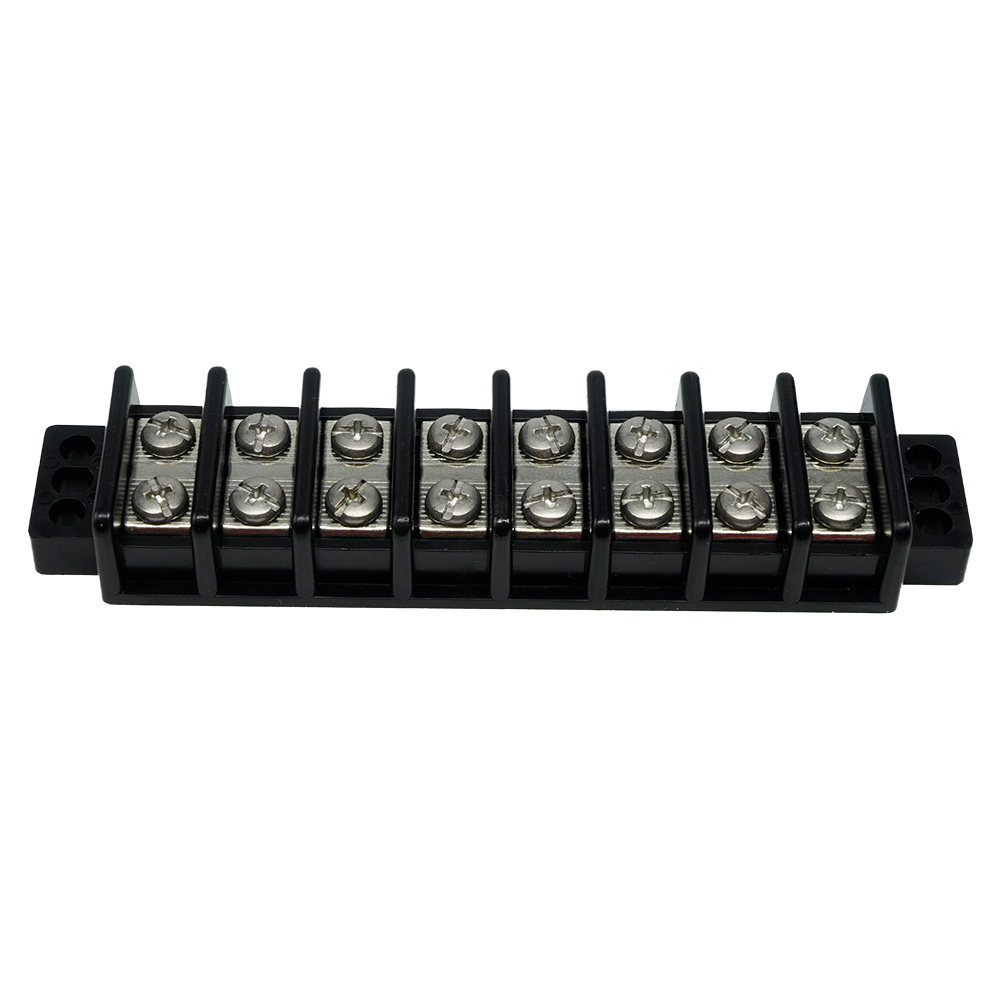

Egis Mobile Electric 2230-08 Terminal Block 30A 8 Circuit Marine Grade

The Egis Mobile Electric 2230-08 is a heavy-duty 8-circuit terminal block designed for reliable electrical distribution in marine, RV, and mobile applications. Rated for 30 amps continuous current, this terminal block provides organized, safe connections for 12V, 24V, 36V, and 48V DC systems, as well as 120V/240V AC applications up to 250 volts.

Key Features:

• 8 screw terminal connection pairs with separate input and output screws connected to individual copper alloy bus bars for each circuit
• Marine-grade construction with tin-plated copper alloy conductors resists corrosion in harsh environments
• Stainless steel hardware and high-temperature insulation materials ensure long-lasting durability
• Anti-rotation ribs on conductor strips prevent wire terminal rotation during installation
• High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground
• 2000Vac dielectric strength provides superior electrical isolation
• CE marked and RoHS compliant for international standards compliance

Technical Specifications:

• Continuous Current Rating: 30 Amps
• Maximum Voltage: 250 Vac/Vdc
• Dielectric Strength: 2000Vac
• Number of Circuits: 8 pairs
• Hardware: Stainless steel
• Conductor Material: Tin-plated copper alloy

Backed by a 4-year warranty, this terminal block delivers professional-grade electrical distribution for mobile power systems where reliability and safety are essential.
