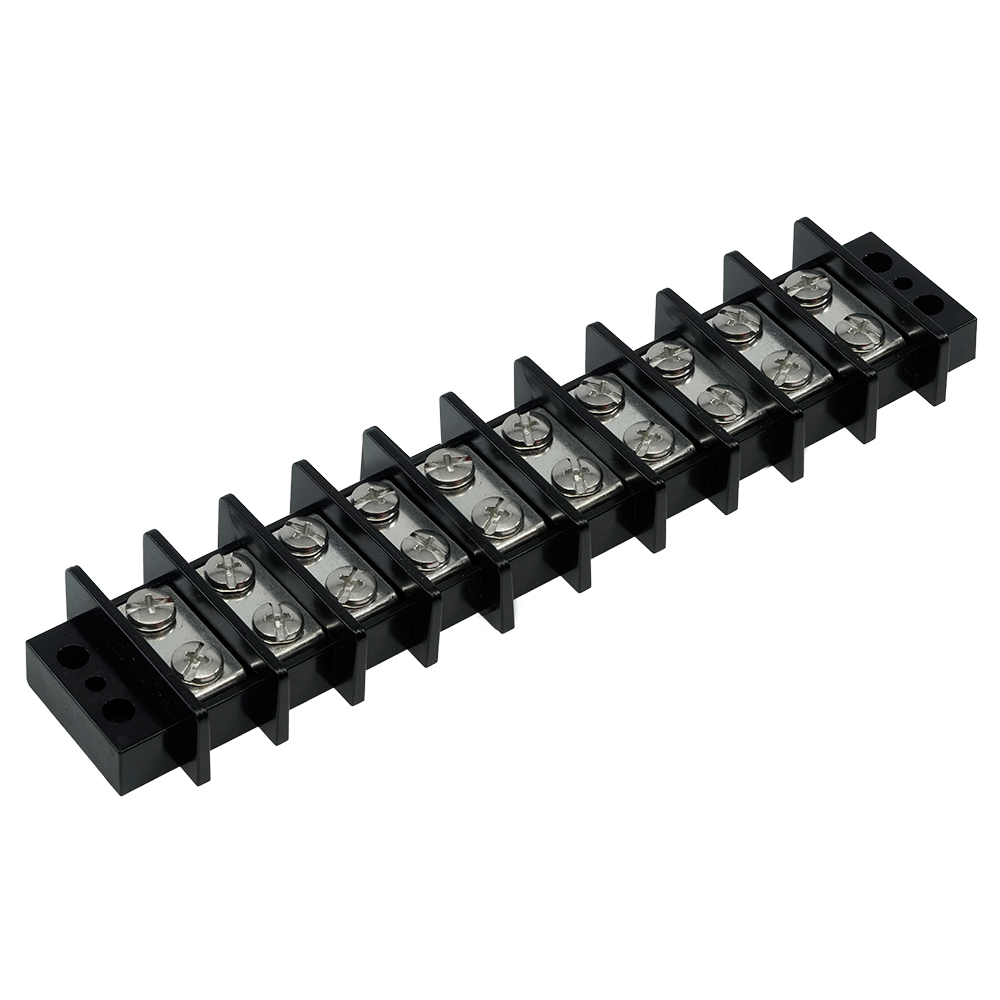

Egis Mobile Electric 2265-10 Terminal Block 65A 10 Circuit Marine Grade

The Egis Mobile Electric 2265-10 is a heavy-duty 65-amp terminal block featuring 10 circuit pairs designed for marine, mobile, and harsh environment electrical applications. Each circuit pair provides one input and one output screw terminal connected to separate tin-plated copper alloy bus bars, ensuring reliable power distribution in DC and AC systems.

Key Features:

• 10 Circuit Pairs: Each pair includes dedicated input and output screw terminals connected to independent copper alloy bus bars for clean, organized wiring
• Marine-Grade Construction: Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials provide corrosion resistance and long-term durability
• Versatile Voltage Rating: 250V AC/DC rated, easily supports 12V, 24V, 36V, and 48V DC systems as well as 120V/240V AC applications
• 65 Amp Continuous Current: Handles substantial power loads for battery banks, inverters, solar systems, and heavy electrical circuits
• Anti-Rotation Design: Integrated ribs on conductor strips prevent wire terminal rotation during installation or in high-vibration environments
• Short Circuit Protection: High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground
• Superior Dielectric Strength: 2000Vac dielectric strength ensures safe operation and electrical isolation

Technical Specifications:

• Continuous Current Rating: 65 Amps
• Maximum Voltage: 250 Vac/Vdc
• Number of Circuits: 10 pairs (20 terminals total)
• Dielectric Strength: 2000Vac
• Hardware Material: Stainless Steel
• Conductor Material: Tin-plated copper alloy
• CE Marked and ROHS Compliant
• Backed by 4-Year Warranty

Ideal for marine vessels, RVs, off-grid solar installations, mobile equipment, and any application requiring reliable, organized power distribution in demanding environments.
