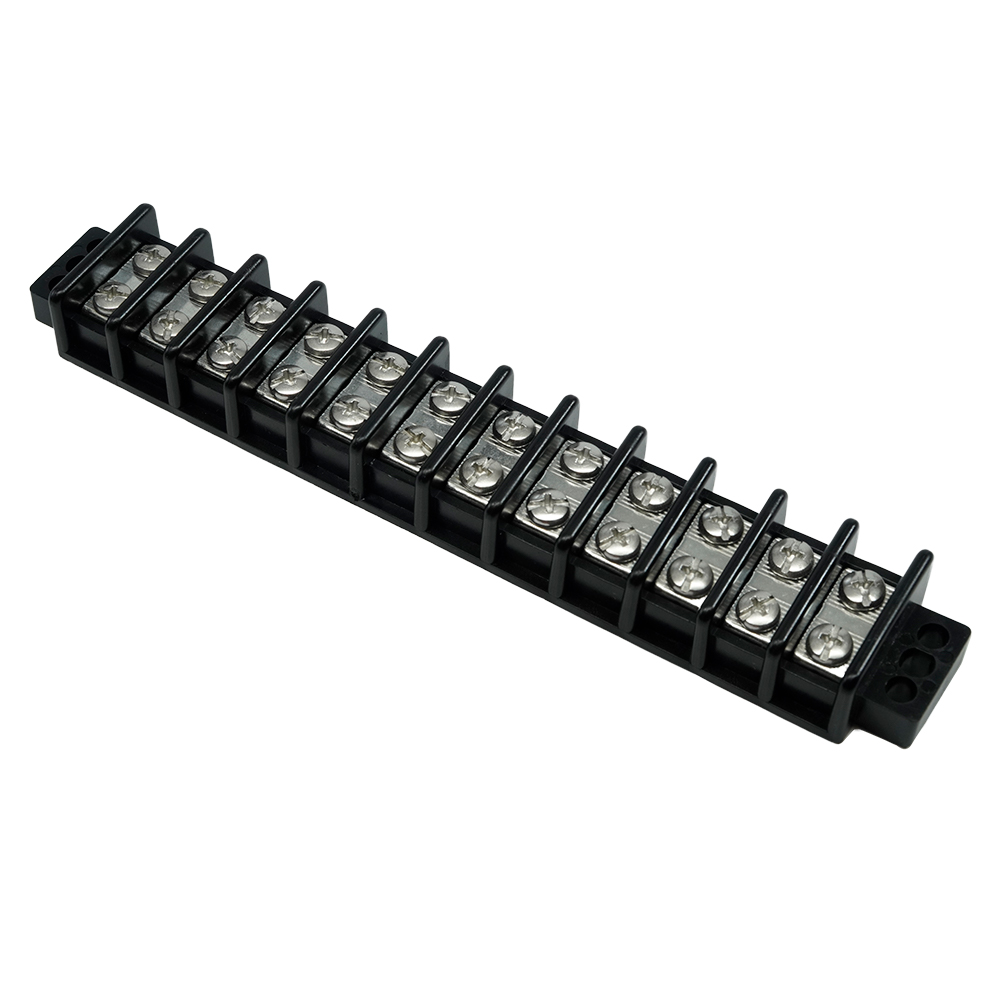

Egis Mobile Electric 2230-12 Terminal Block 30A 12 Circuit Marine Grade

The Egis Mobile Electric 2230-12 is a heavy-duty 12-circuit terminal block designed for marine, RV, and mobile electric applications. This 30-amp rated distribution block features marine-grade construction with tin-plated copper alloy bus bars, stainless steel hardware, and high-temperature insulation materials for reliable performance in harsh environments.

Key Features:

• 12 matching screw terminal connection pairs with separate input and output screws connected to isolated copper alloy bus bars
• 30-amp continuous current rating per circuit with 250V AC/DC maximum voltage capacity
• Marine-grade tin-plated copper alloy conductors resist corrosion in harsh conditions
• Stainless steel hardware throughout for maximum durability
• Anti-rotation ribs on conductor strips prevent wire terminal rotation during installation
• High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground
• 2000Vac dielectric strength for superior electrical isolation
• Supports 12V, 24V, 36V, and 48V DC systems, plus 120/240V AC applications
• CE marked and RoHS compliant

Ideal for organizing and distributing power in boats, RVs, mobile equipment, and off-grid power systems. Backed by a 4-year manufacturer warranty.

Specifications:

• Continuous Current Rating: 30 amps per circuit
• Maximum Voltage: 250V AC/DC
• Number of Circuits: 12 matching pairs
• Dielectric Strength: 2000Vac
• Hardware: Stainless steel
• Conductor Material: Tin-plated copper alloy
• Certifications: CE marked, RoHS compliant
