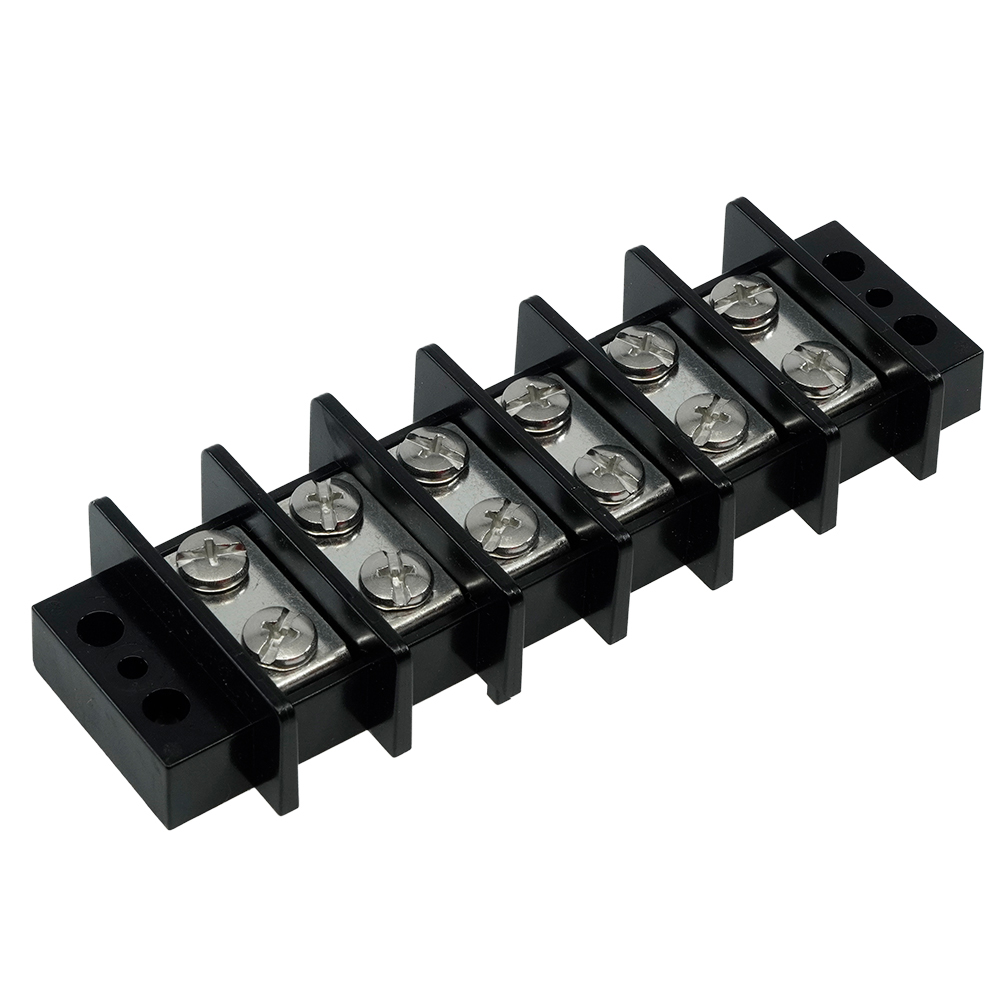

Egis Mobile Electric 2265-06 Terminal Block 65A 6 Circuit Marine Grade

The Egis Mobile Electric 2265-06 is a heavy-duty 65-amp, 6-circuit terminal block designed for demanding marine, RV, and mobile power applications. This robust distribution block features tin-plated copper alloy bus bars with screw terminal connection pairs, providing reliable power distribution in harsh environments.

Key Features:

• 65-amp continuous current rating with 6 matching connection pairs
• Each pair provides one input and one output screw connected to separate copper alloy bus bars
• Marine-grade construction with tin-plated copper alloy conductors and stainless steel hardware
• High-temperature insulation material with anti-rotation ribs to prevent wire terminal rotation
• High insulation walls protect ring terminal splices from shorting to adjacent circuits
• Rated for 125V AC or DC (supports 12V, 24V, 36V, and 48V DC systems, plus 120/240V AC applications)
• Maximum voltage rating: 250V AC/DC with 2000V AC dielectric strength
• CE marked and RoHS compliant for international standards compliance
• Backed by 4-year manufacturer warranty

Built for long-lasting reliability in mobile electric applications, this terminal block delivers professional-grade power distribution with corrosion-resistant materials and secure screw terminals that maintain consistent connections even under vibration and temperature extremes.
